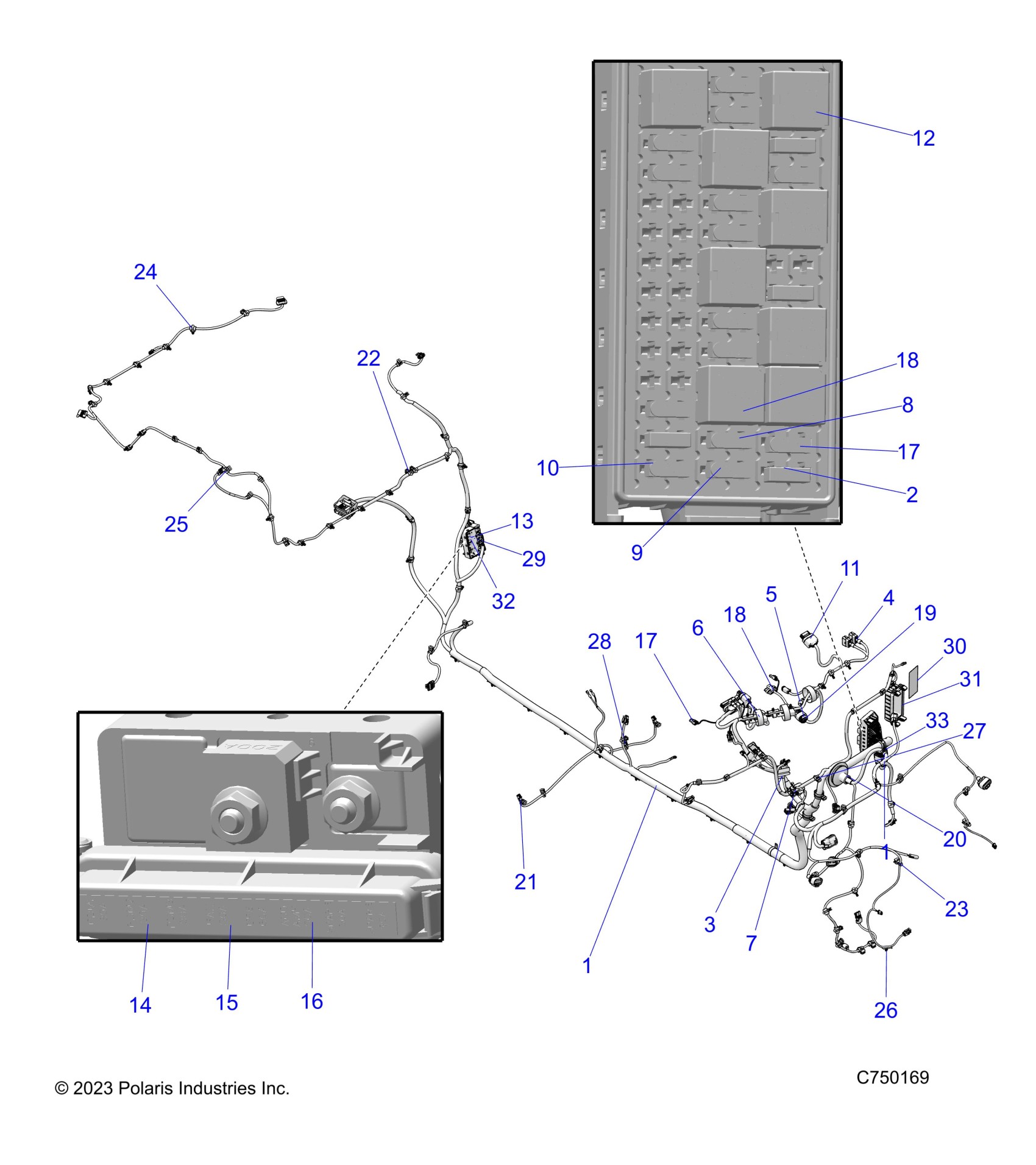

Polaris RZR PRO R4 SPORT (R03) - Z25R4E2KA4/B4 ELECTRICAL, WIRE HARNESS, CHASSIS, STANDARD - Z25R4E2KA4/B4 (C750169) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,PROR,PREM,MP

2417243

$1,592.79

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

3

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

4

RESISTOR-1.6KOHM

2415213

$8.79

5

RESISTOR-4.75KOHM

2415214

$8.79

6

RESISTOR-24.9KOHM

2415215

$8.79

7

DIODE-2 AMP

2415626

$14.39

8

FUSE-IGNITION,10 AMP

2434016

$4.79

9

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

10

FUSE-5A,MINI BLADE

4011652

Unavailable

11

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

12

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

13

FUSE-PDM [INCL 16,29, & 32]

4017598

$57.19

14

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

15

FUSE-MCASE,50A

4018414-50

$9.59

16

FUSE-ZCASE, 200A

4018415-200

$37.39

17

COVER-JAE, MX19, 4P, F

4018703

Unavailable

17

COVER-JAE, MX19, 4P, F

4018703

Unavailable

18

SSR-4PIN

4019393

$103.99

18

SSR-4PIN

4019393

$103.99

19

CAP - VINYL, 125X375, BLACK

5438230

$5.59

20

GROMMET - 65 MM, BLK

5813954

$7.19

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

22

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

23

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

24

CLIP, EDGE, HARNESS

7081890

$10.39

25

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

26

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

27

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

28

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

29

LABEL-PDM,RZR,G4

7191499

Unavailable

30

LABEL- FUSE BOX 570

7196004

Unavailable

31

COVER-FUSEBLOCK

4017883

$34.58

32

COVER-PDM

4018416

Unavailable

33

SCREW-SH-M6X1.0X20 8.8 ZPB

7517305

$4.79
