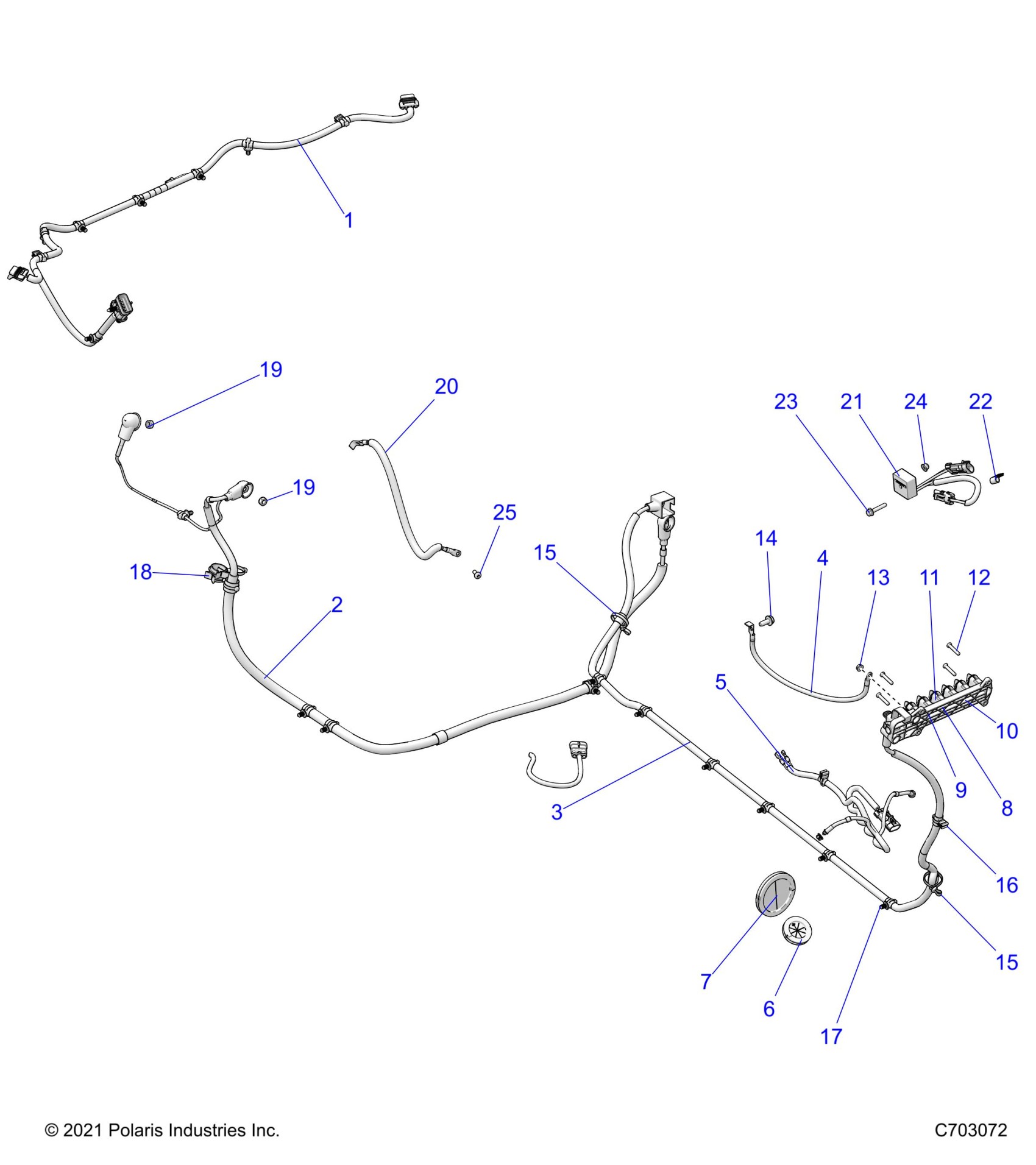

Polaris RZR PRO R4 RC (R03) - Z23RMK2KAJ/BJ ELECTRICAL, WIRE HARNESS, PERIPHERAL - Z23RMK2KAJ/BJ (C703072) Diagram

HARN-CHASSIS,BASE,PROR,MP [INCL. 14,16]

2416688

$1,249.59

HARNESS-BOX,RZR G4 [INCL. 14,16]

2415274

$99.99

CABLE-POS,PDM,START,ALT [INCL. 14,15]

4019608

$103.99

CABLE-ACCY,PDM TO ATB [INCL. 12-14]

4018864

$103.99

CABLE-GROUND,ATB,CHAS

4017603

Unavailable

HARNESS-CONSOLE [INCL. 13,17,18]

2415067

$95.99

GROMMET-ELEC,CAB,SLIT

5415049

$3.99

GROMMET-ELECTRICAL,CAB

5417178

$5.59

BLOCK-TERMINAL,3 POST,TALL

4016007

$44.99

FUSE-CARTRIDGE,40A �

4013891

$31.99

PLUG,ACCY TB �

5454283

$39.99

COVER,TB,JCASE �

5454284

$27.99

SCR-10X1.12 TX PN PLS-Y

7512078

$1.49

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

CLIP-OMEGA,CABLE/19-24.5MM DIA

7082408

$11.99

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

CABLE-GROUND,ENG,CHAS,G4

4018143

$43.99

RELAY, SOLID STATE, 9 AMP, LONG, LD �

4012829

$71.99

CLAMP-HOSE,.312DIA,VINYL COAT �

7080683

$2.39

BOLT-M6X1.0X35,HXFLG/SH-OLV D �

7518612

$4.79

NUT-M6X1.0, FLG-NYLOC-OLIVE D �

7547339

$1.49

SCREW-M6X1X14,PN/TX,TRI-LOB �

7518914

$3.19
