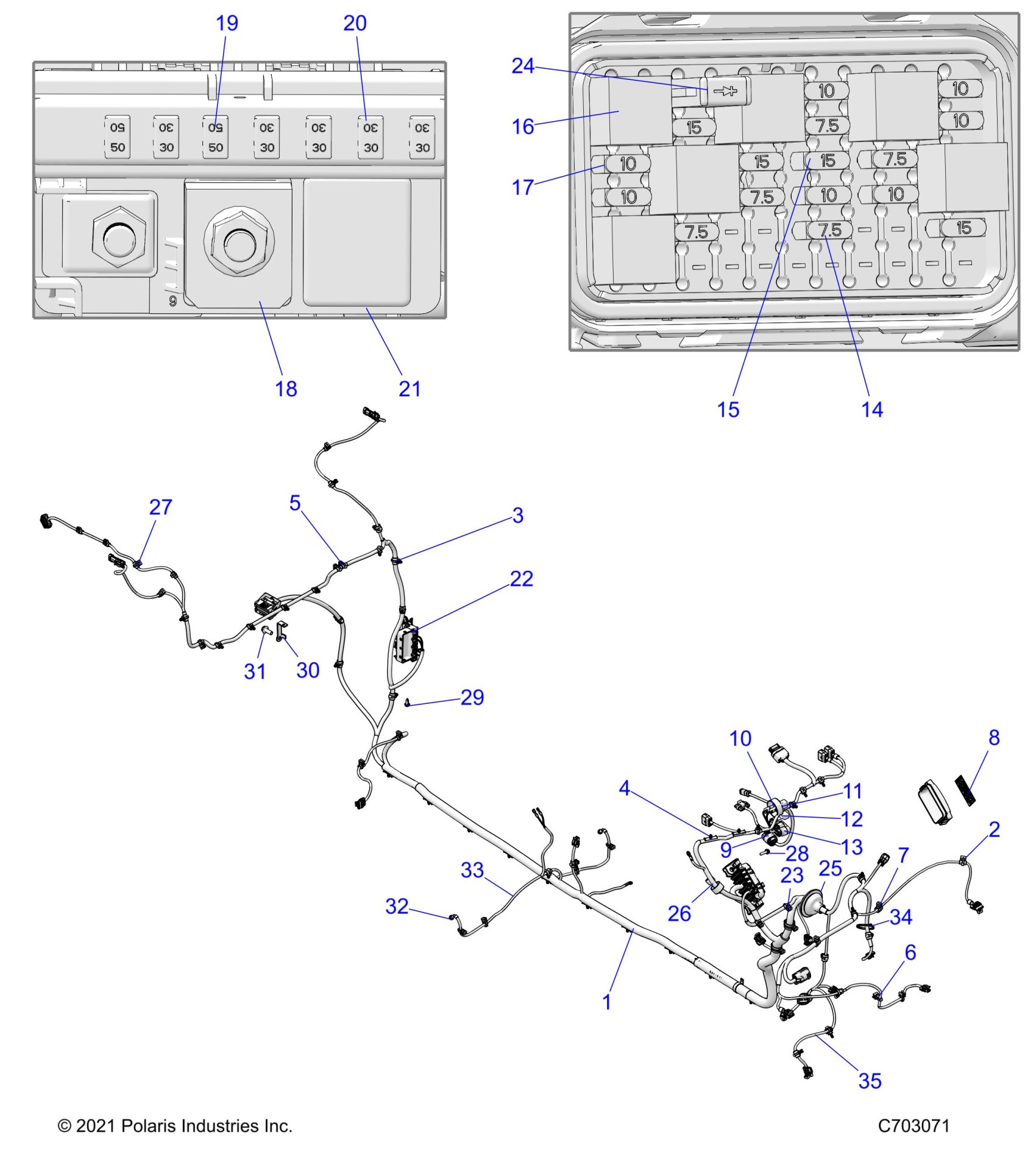

Polaris RZR PRO R4 RC (R03) - Z23RMK2KAJ/BJ ELECTRICAL, WIRE HARNESS, CHASSIS, STANDARD - ELECTRICAL, HEADLIGHTS AND TAILLIGHTS - Z23RMK2KAJ/BJ (C703071) Diagram

HARN-CHASSIS,BASE,PROR,MP [INCL. 2-27]

2416688

$1,499.99

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$33.32

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

LABEL-FUSE BOX

7197503

Unavailable

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

RESISTOR-24.9KOHM

2415215

$9.70

RESISTOR-4.75KOHM

2415214

$9.70

RESISTOR-1.6KOHM

2415213

$9.70

CAP-EVAP CONNECTOR

4018655

$4.03

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

FUSE-15AMP,MINI BLADE

4010859

$8.08

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

FUSE-IGNITION,10 AMP

2434016

$5.65

FUSE-ZCASE, 200A

4018415-200

Unavailable

FUSE-MCASE,50A

4018414-50

$11.54

FUSE-MCASE,SLOTTED,30A

4018414-30

$8.08

FUSE-PDM

4017598

$69.99

LABLE-PDM,RZR,G4,BASE

7193060

Unavailable

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.56

DIODE-6AMP

4011474

$44.51

GROMMET - 65 MM, BLK

5813954

$8.99

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$9.70

CLIP, EDGE, HARNESS

7081890

$10.32

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.19

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

BRKT-MOUNT,CONNECTOR,ECOAT

5270941-329

$36.41

SCR-HXFL-M10X1.5X25,DIN6921ZB

7519349

$5.56

CLIP - ROUTING, DIN BOX �

7082020

$5.56

LED - PANEL MNT, 12V, BLUE �

2413217

$52.60

CABLE-TIE,DIA12-50MM,WTHR-RES. �

7080138

$2.41

HARNESS-JUMPER FRONT DRIVE �

2416574

$59.99
