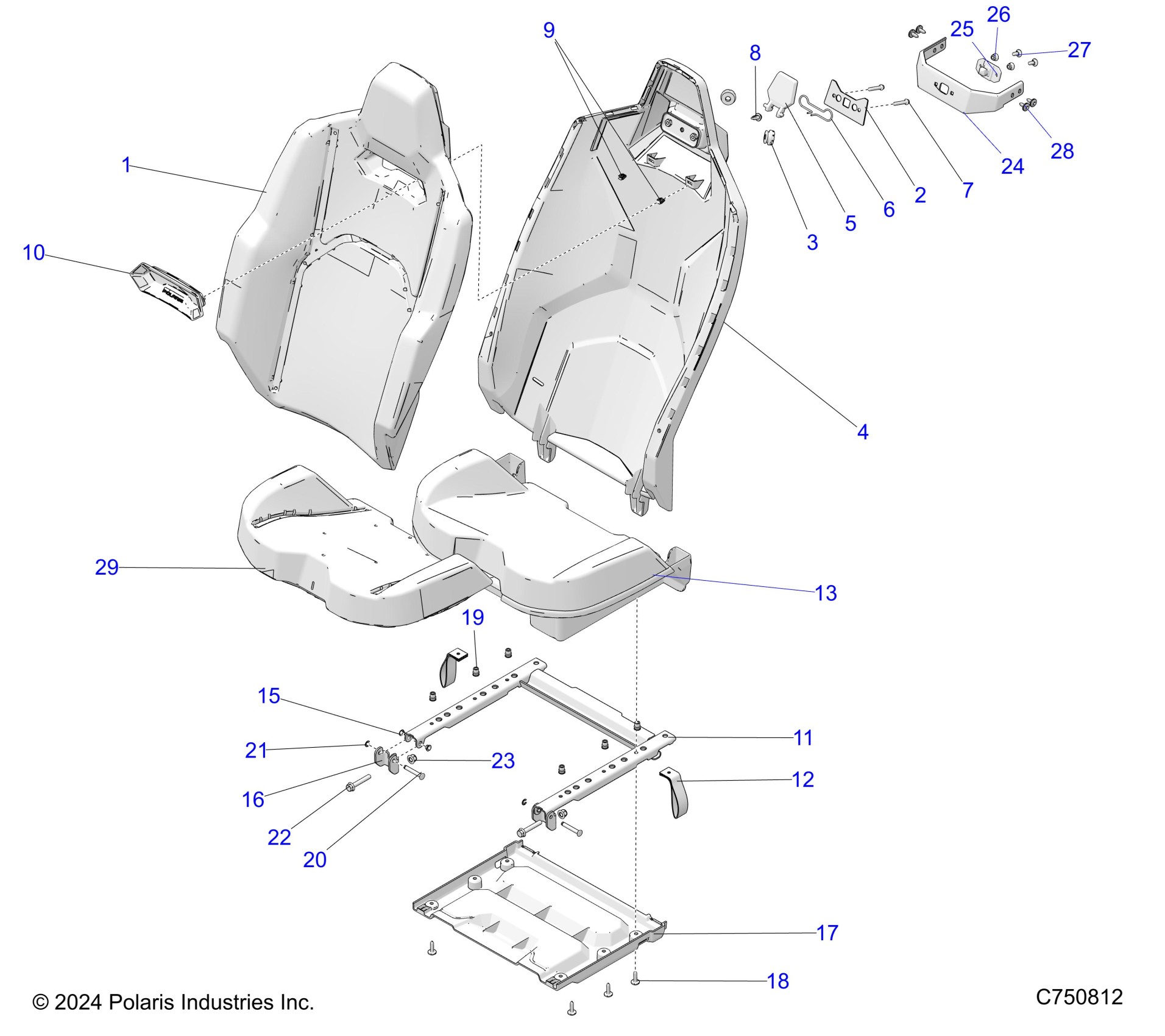

Polaris RZR PRO R4 RACE REPLICA LE EVAP (R02) - Z25R4P2KBL BODY, SEAT ASM, & MOUNTING, REAR - Z25R4P2KBL (C750812) Diagram

#

Description
Price

1

BUN-SEAT,REAR,BACK

5815572

Unavailable

1

ASM-COVER-SEAT,BACK,TITANIUM

2693194

$123.99

2

COVER-LATCH,SEAT,MP,ECOAT

5273996-329

$43.99

3

GROMMET-LATCH

5413428

$3.19

4

SEAT-SHELL,BACK

5465065

$114.39

5

LATCH-HANDLE

5465066

$4.79

6

SPRING, LATCH, SEAT

7081466

$39.99

7

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

8

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

9

CLIP-TRIM, PLASTIC, WHITE

5456313

$1.59

10

BEZEL-SEAT COVER,BLACK

5465755-070

$19.99

11

WELD-SEAT FRAME,REAR,FLIP,BLK

1024845-458

$67.99

12

STRAP-SEAT

2689264

$7.19

13

ASM-SEAT,BUN,BOTTOM

2639643

Unavailable

15

BUSHING-DOOR PIVOT

5266311

$3.19

16

BRKT-SEAT FRAME,HINGE,REAR

5267628

$10.39

17

PANEL-UNDERSEAT,REAR,FLIP [TO 9/5/2025]

5456052

$39.99

17

PANEL-UNDERSEAT,REAR,FLIP [FROM 9/5/2025]

5467185

Unavailable

18

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

19

NUT-RIVNUT,M6X1.00

7547789

$3.19

20

PIN-DOOR HINGE

7662356

$5.27

21

E-CLIP,M6, DIN 6799

7710466

$3.19

22

SCR-M8X1.25X50 HX/FL-Y

7517793

$5.59

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

BRKT-LATCH,SEAT,MP,BLK

5273997-458

$27.99

25

LATCH-DOWEL

5466348

$3.99

26

SCR-CARRIAGE,M6X16

7520194

$3.99

27

NUT-M6,HX/FL,NYLOC ZPB

7547475

$7.91

28

SCR-M6X1X16 TR/TX-M

7518936

$3.99

29

ASM-COVER-SEAT,BTM,TITANIUM

2693202

$107.99
