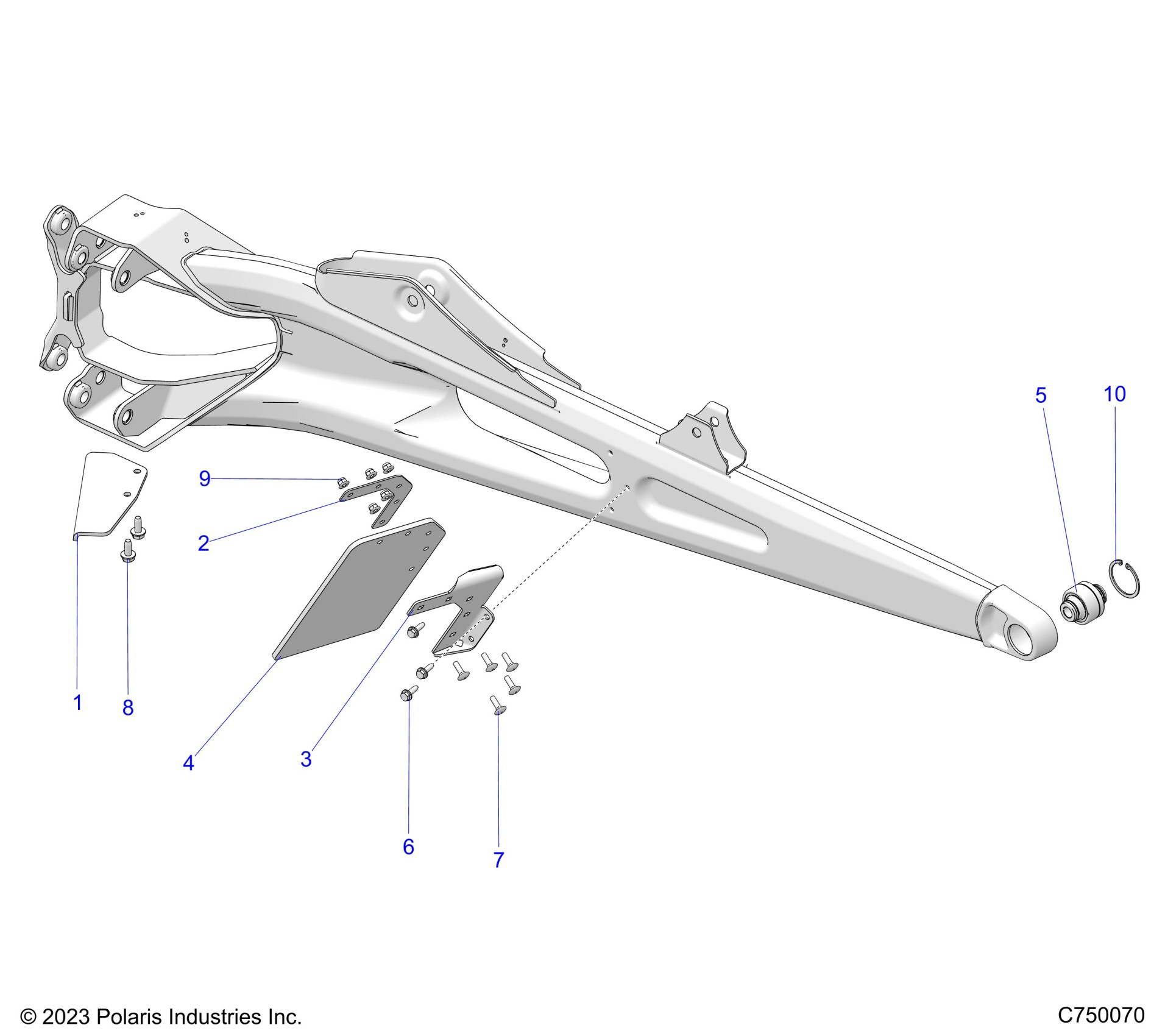

Polaris RZR PRO R4 LV (R02) - Z23RML2KAJ/BJ/AK/BK SUSPENSION, REAR TRAILING ARMS - Z23RML2KAJ/BJ/AK/BK (C750070) Diagram

ASM-TRLG ARM,74,LH,BLACK [INCLUDES ALL] [AK] [BK]

1544421-067

$1,099.99

ASM-TRLG ARM,74,RH,BLACK [INCLUDES ALL] [AK] [BK]

1544422-067

$1,099.99

ASM-TRLG ARM,74,LH,M TTNM MET [INCLUDES ALL] [AJ] [BJ]

1544421-705

$1,049.99

ASM-TRLG ARM,74,RH,M TTNM MET [INCLUDES ALL] [AJ] [BJ]

1544422-705

$1,049.99

BRKT-WHEEL SCRAPER LH

5270331

$28.32

BRKT-WHEEL SCRAPER RH

5270332

$28.32

BRKT-MOUNT, DEBRIS FLAP,BLK

5270915-458

$28.32

BRKT-L,DEBRIS FLAP,MBLK

5273086-458

$64.75

BRKT-R,DEBRIS FLAP,MBLK

5273087-458

$60.70

FLAP,DEBRIS

5417579

$31.75

BEARING-SPHERICAL, M14,47X55

7082583

$23.81

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

SCR-HFH-M8X1.25X20 TAP/R ZPB

7519780

$4.76

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

RING-SNAP,DIN472,47X1.75MM

7710947

$4.03
