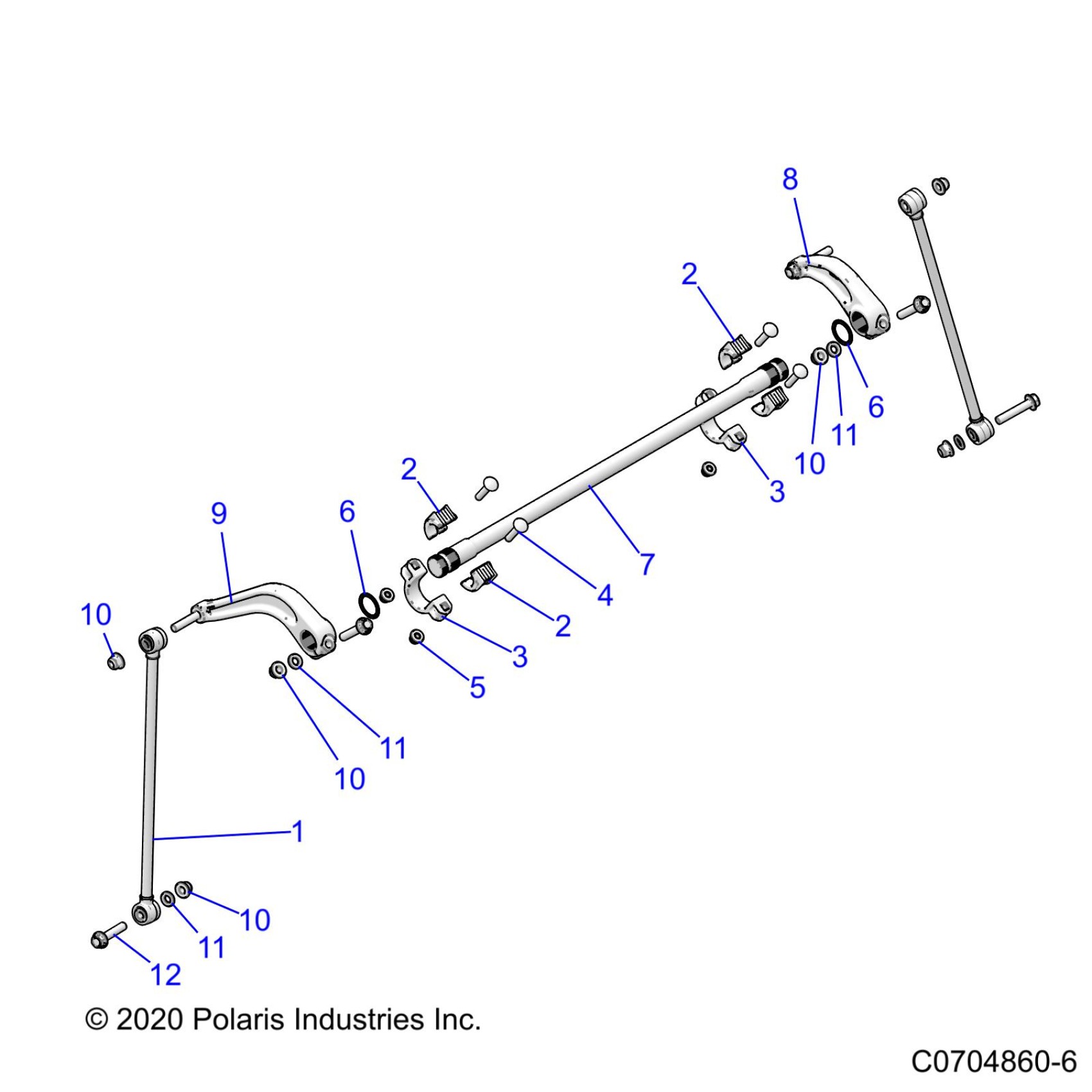

Polaris RZR PRO R4 LV (R02) - Z23RML2KAJ/BJ/AK/BK SUSPENSION, REAR STABILIZER BAR - Z23RML2KAJ/BJ/AK/BK (C0704860-3) Diagram

#

Description
Price

1

ASM-LINKAGE,STABILIZER BAR,TR

1544145

$155.99

2

BUSHING-SWAY BAR

5456496

$7.19

2

BUSHING-SWAY BAR

5456496

$7.19

2

BUSHING-SWAY BAR

5456496

$7.19

3

BRKT-CAST,SWAY BAR

5634706

$39.99

3

BRKT-CAST,SWAY BAR

5634706

$39.99

4

SCR-RHCAR-M10X1.25X50 8.8 ZOD

7519073

$7.27

5

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

6

SPRING-WASHER

7558725

$6.39

6

SPRING-WASHER

7558725

$6.39

7

BAR-STABILIZER,REAR G4

5341133

$151.99

8

ASM-REAR SWAY BAR LH

1544900

$155.99

9

ASM-REAR SWAY BAR RH

1544901

$155.99

10

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

10

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

10

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

10

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

11

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

11

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

11

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

12

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19
