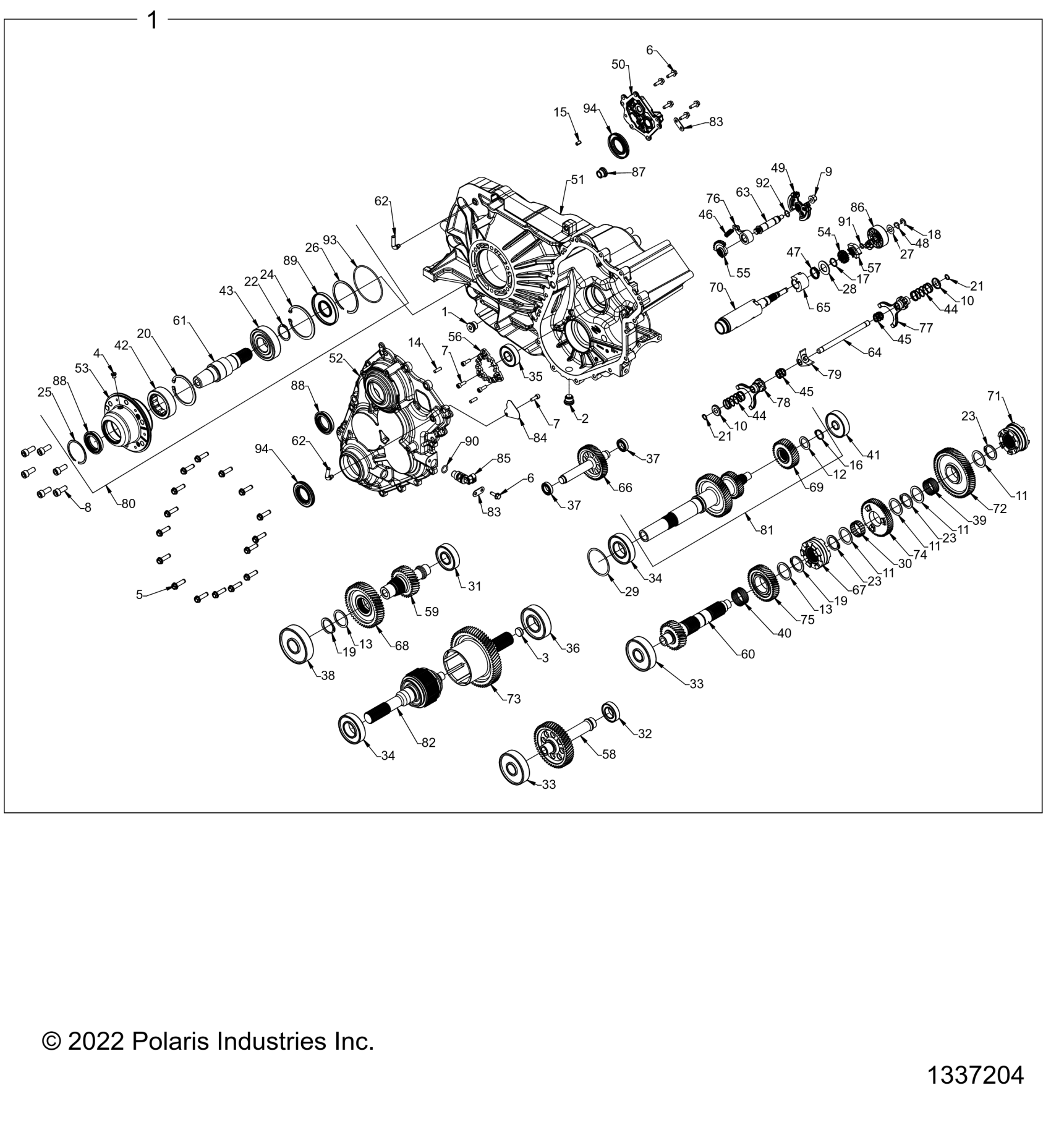

Polaris RZR PRO R4 LV (R02) - Z23RML2KAJ/BJ/AK/BK DRIVE TRAIN, GEARCASE, MAIN, INTERNALS - Z23RML2KAJ/BJ/AK/BK (1337005) Diagram

#

Description
Price

1

ASM-GEARCASE,LIMT,COMPLETE,MP [INCL. ALL]

1337204

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

PLUG-EXPANSION,20 X 7

3236578

$17.99

4

PLUG, HOLLOW HEX 5/16-24

3236579

$7.99

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

7

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

7

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

8

SCREW, SOCKET HEAD, CAP, M10 X 1.5 X 25

3236580

$11.32

9

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

10

WASHER-CUP

3234091

$9.52

10

WASHER-CUP

3234091

$9.52

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

11

WASHER-32.3X42X1.5(115288)

3235211

$10.32

12

WASHER, 22.70 X 32.0 X 1.5

3236581

$12.34

13

WASHER, 35.3 X 44 X 1.5

3236582

$8.99

13

WASHER, 35.3 X 44 X 1.5

3236582

$8.99

14

PIN, DOWEL 6 X 20

3234330

$7.14

15

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

16

RING, RETAINING BASIC EXTERNAL

7710434

$3.97

17

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

18

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

19

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

19

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

20

RING, RETAINING BASIC INTERNAL 72

3236619

$10.51

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

22

RING, RETAINING EXTERNAL

7710917

$19.84

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

24

RING, RETAINING BASIC INTERNAL 80

7710912

$23.81

25

RING, RETAINING KLM-58

3236700

$13.75

26

RING, RETAINING KLM-80

7710918

$19.99

27

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

28

SPACER, 19.4 X 34.0 X 2.0

3235883

$28.56

29

SHIM, 70 OD X 62 ID

3236585

$84.99

30

BEARING, NEEDLE

3233014

$43.65

31

BEARING

3233020

$47.62

32

Bearing, Ball

3233305

$31.75

33

BEARING, BALL, 6405 C3 25X80X21

3235539

$51.59

33

BEARING, BALL, 6405 C3 25X80X21

3235539

$51.59

34

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

34

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

35

BEARING, BALL, 6304 C3 20X52X15

3236587

$15.87

36

BEARING, BALL (35X80X21)

3235099

$31.75

37

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

37

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

38

BEARING, BALL, 6406 C3, 30 X 90 X 23

3236588

$79.99

39

BEARING, NEEDLE, 32 X 37 X 17

3236589

$29.99

40

BEARING, NEEDLE, CAGE ASSY, 35 X 40 X 17

3236734

$34.99

41

BEARING, BALL, 6403 C3 17X62X17

3236590

$64.99

42

BEARING, ROLLER, RNU2207

3236591

$59.99

43

BEARING, DGB 6307CO

3236592

$54.99

44

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

44

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

45

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

45

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

46

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$13.75

47

SPRING, TORSION

3235885

$20.22

48

WASHER-SPRING,210393

3235327

$9.52

49

PULLEY, SHIFT

3236593

$49.99

50

COVER, SECTOR GEARS MACH

3235809

$47.49

51

CASE, MACH

3236594

Unavailable

52

COVER, MACH

3236716

$399.99

52

SUBASSEMBLY, COVER [HD/RACE]

3239873

Unavailable

53

HOUSING, PTO MACH

3236596

$161.49

54

GEAR, SECTOR, 16T

3233839

$36.41

55

GEAR-SECTOR,31T

3233832

$36.41

56

PLATE, PARK, 12 FACE

3235456

$40.46

57

STAR, DETENT

3236638

$39.99

58

SHAFT, IDLER 51T

3236597

$169.99

59

SHAFT, IDLER 31T

3236598

$274.99

60

SHAFT, REVERSE 29T

3236600

$174.27

61

SHAFT, PTO

5142333

$171.41

62

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

62

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

63

SHAFT-SHIFT(352973)

3235238

$42.74

64

RAIL-SHIFT SHAFT(353622)

3235542

$28.32

65

CAM, PARK

3235983

$183.95

66

SHAFT, REVERSE 53T

3236603

$256.57

67

ENGAGEMENT DOG, 6-FACE

3236735

$101.65

68

GEAR, IDLER 49T

3236604

$154.99

69

GEAR, LOW 37T

3236605

$44.51

70

DRUM, SHIFT MACH

3236606

$169.43

71

SHIFT DOG, PARK

3236607

$121.02

72

GEAR, LOW 68T

3236608

$198.48

73

GEAR, OUTPUT 67T

3236610

Unavailable

74

GEAR, REVERSE 56T

3236758

$154.99

75

GEAR, HIGH 47T

3236759

$111.33

76

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

77

SUBASSEMBLY, SHIFT FORK

3236611

$62.92

78

SUBASSEMBLY, SHIFT FORK

3236612

$67.76

79

SUBASSEMBLY, SHIFT COLLAR

3236736

$71.41

80

SUBASSY, ROGUE PTO

3236733

$999.99

81

SUBASSY, INPUT, 57T/39T/37T

3236771

$290.46

82

SUBASSEMBLY, ROGUE PTL

3239506

$949.99

83

BRACKET, WIRE HARNESS

3235350

$8.89

83

BRACKET, WIRE HARNESS

3235350

$8.89

84

DEFLECTOR, OIL

3239507

$29.99

85

SENSOR-SPEED,TRANS

4013908

$109.27

86

SWITCH, ROTARY, 2 PIN RESISTIVE

7662468

$54.99

87

PLUG, M18 X 1.5

3234755

$27.78

88

SEAL, VITON DBL LIP, W/SHIELD AND FLANGE, 35X52X8

3236617

$28.49

88

SEAL, VITON DBL LIP, W/SHIELD AND FLANGE, 35X52X8

3236617

$28.49

89

SEAL, 35 X 80 X 8

3236618

$18.99

90

O-RING, -113 VITON

3233840

$11.32

91

O-RING, -012 VITON

3233836

$6.87

92

O-RING, -014 VITON

3233828

$6.87

93

O-RING 2-153

3236615

$11.99

94

SEAL, TRIPLE LIP VITON, 35 X 62 X 8

3236616

$35.71

94

SEAL, TRIPLE LIP VITON, 35 X 62 X 8

3236616

$35.71
