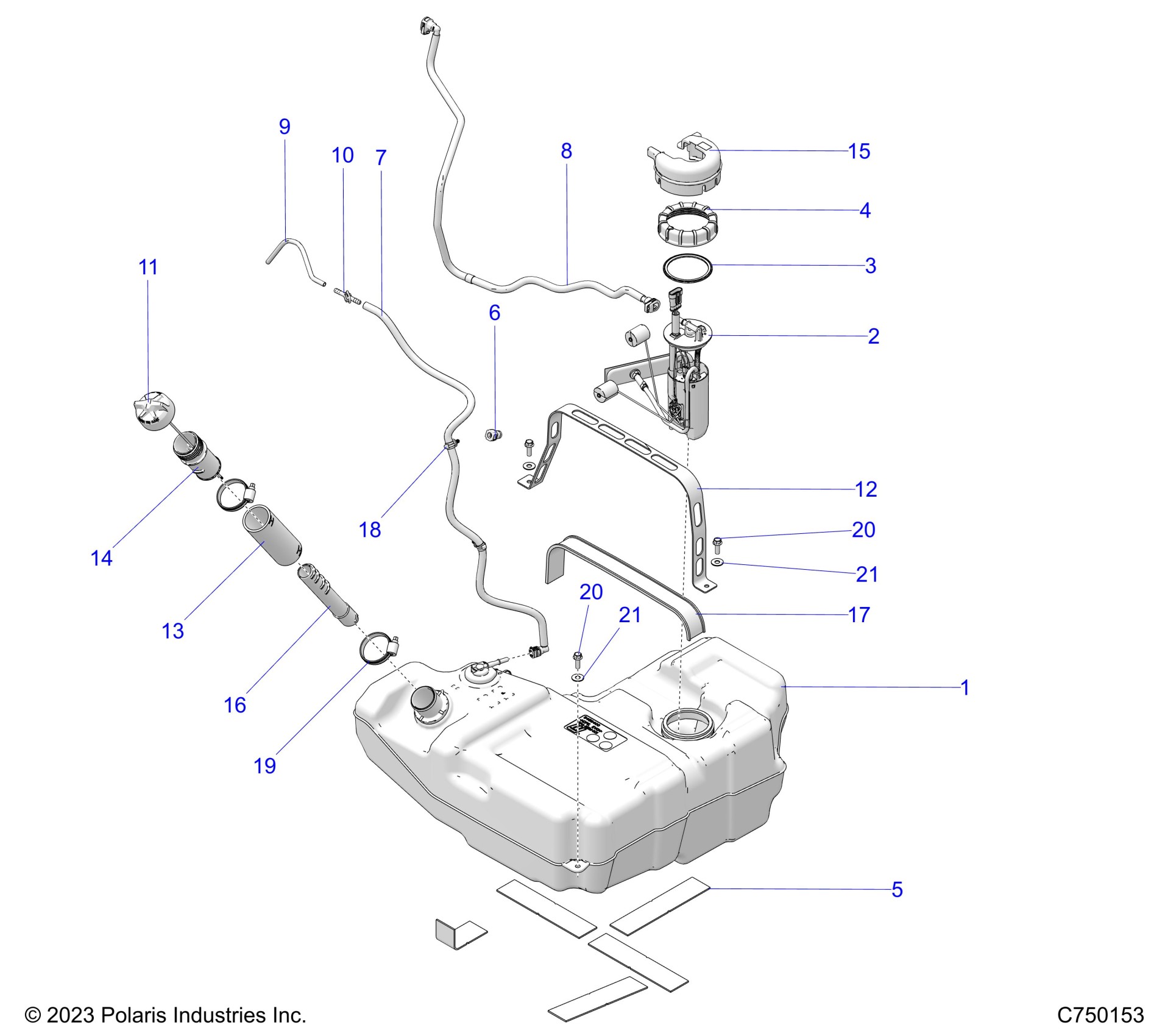

Polaris RZR PRO R4 FACTORY ARMORED LE ULTIMATE (R02) - Z25R4P2KAE/BE FUEL SYSTEM, STD. - Z25R4P2KAE/BE (C750153) Diagram

ASM-FUEL TANK,PRO R4 [INCL. 2-5]

2522693

$483.99

K-FUEL PUMP,PRO R 4 [INCL. 3 & 4]

2211790

$457.59

GASKET-PFA,RIBBED

5413451

$11.99

NUT-MASON JAR

5437138

$35.99

PAD-TANK,MOUNT

5814781

Unavailable

CAP-EVAP,THROTTLE BODY

2521948

$12.79

ASM-LINE,VENT TO CHASSIS

2522304

$79.99

ASM-FUEL LINE,G4,MP

2522360

$87.99

ASM-LINE,VENT TERM [INCL. 10]

2522401

$31.99

FITTING-VENT LINE,35

5457446

$8.79

CAP-GAS TANK,TETHER

2522651

$31.99

BRKT-STRAP,FUEL TANK,ECOAT

5268334-329

$75.99

HOSE, FUEL FILL

5414709

$55.99

NECK-FUEL FILL,OUTER

5455329

$23.36

PANEL-ACCESS,TANK,MP,BLK

5456697-070

$39.99

TUBE-FUEL FILL,INNER [TO 1/1/2024]

5465445

$12.79

TUBE-FUEL FILL,INNER [FROM 1/1/2024]

5466555

$13.59

PAD-STRAP,RUBBER,MP

5522332

$7.47

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLAMP-HOSE,25-77 DIA,PLASTIC

7083059

$6.15

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

WASHER-.390X.940X.060,FL-Y

7555976

$3.99

WASHER-.390X.940X.060,FL-Y

7555976

$3.99
