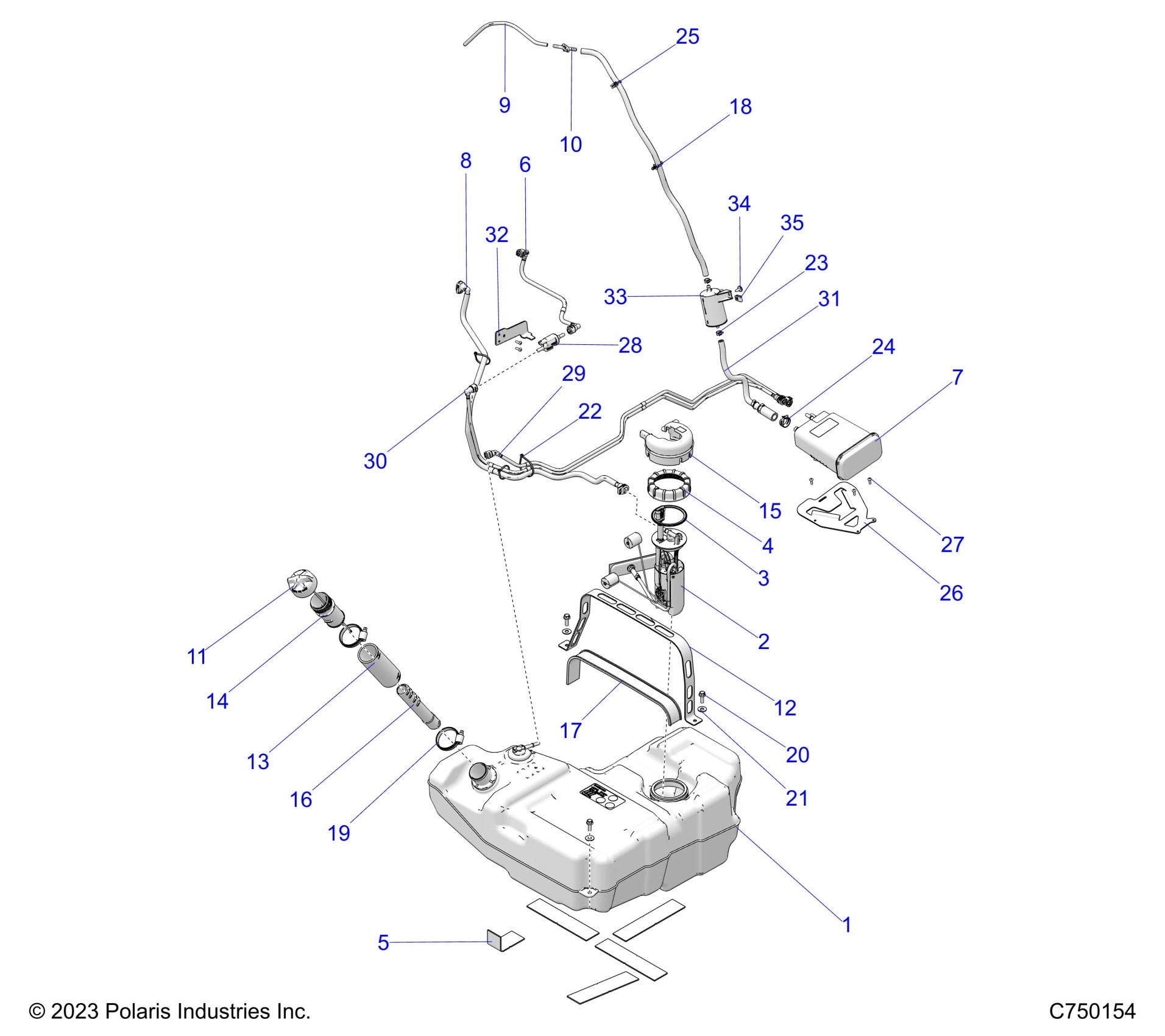

Polaris RZR PRO R4 FACTORY ARMORED LE ULTIMATE (R02) - Z25R4P2KAE/BE FUEL SYSTEM, EVAP - Z25R4P2KBE (C750154) Diagram

#

Description
Price

1

ASM-FUEL TANK,PRO R4 [INCL. 2-5]

2522693

$483.99

2

K-FUEL PUMP,PRO R 4 [INCL. 3 & 4]

2211790

$457.59

3

GASKET-PFA,RIBBED

5413451

$11.99

4

NUT-MASON JAR

5437138

$35.99

5

PAD-TANK,MOUNT

5814781

Unavailable

6

ASM-LINE,PURGE TO TB

2522296

$43.99

7

CANISTER-ACTIVATED CARBON

2521786

$71.99

8

ASM-FUEL LINE,G4,MP

2522360

$87.99

9

ASM-LINE,VENT TERM [INCL. 10]

2522401

$31.99

10

FITTING-VENT LINE,35

5457446

$8.79

11

CAP-GAS TANK,TETHER

2522651

$31.99

12

BRKT-STRAP,FUEL TANK,ECOAT

5268334-329

$75.99

13

HOSE, FUEL FILL

5414709

$55.99

14

NECK-FUEL FILL,OUTER

5455329

$23.36

15

PANEL-ACCESS,TANK,MP,BLK

5456697-070

$39.99

16

TUBE-FUEL FILL,INNER

5466555

$13.59

17

PAD-STRAP,RUBBER,MP

5522332

$7.47

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

19

CLAMP-HOSE,25-77 DIA,PLASTIC

7083059

$6.15

20

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

21

WASHER-.390X.940X.060,FL-Y

7555976

$3.99

22

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

23

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

24

CLAMP-SPRINGBAND 24/12

7081693

$4.03

25

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

26

BRKT-MNT CANISTER,BLK

5268296-329

$39.99

27

RIVET-3/16-.090-.290

7661637

$1.49

28

VALVE-PURGE

2521964

$59.99

29

ASM-LINE,TANK TO CANISTER

2522220

$59.99

30

ASM-LINE,CANISTER TO PURGE

2522221

$59.99

31

ASM-HOSE,VENT TO CANISTER

2522459

$43.99

32

BRKT-MNT PURGE VALVE,ECOAT

5269075-329

$35.99

33

FILTER-CANISTER VENT

2521750

$55.99

34

SCR-M6X1X16 TR/TX-M

7518936

$3.99

35

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49
