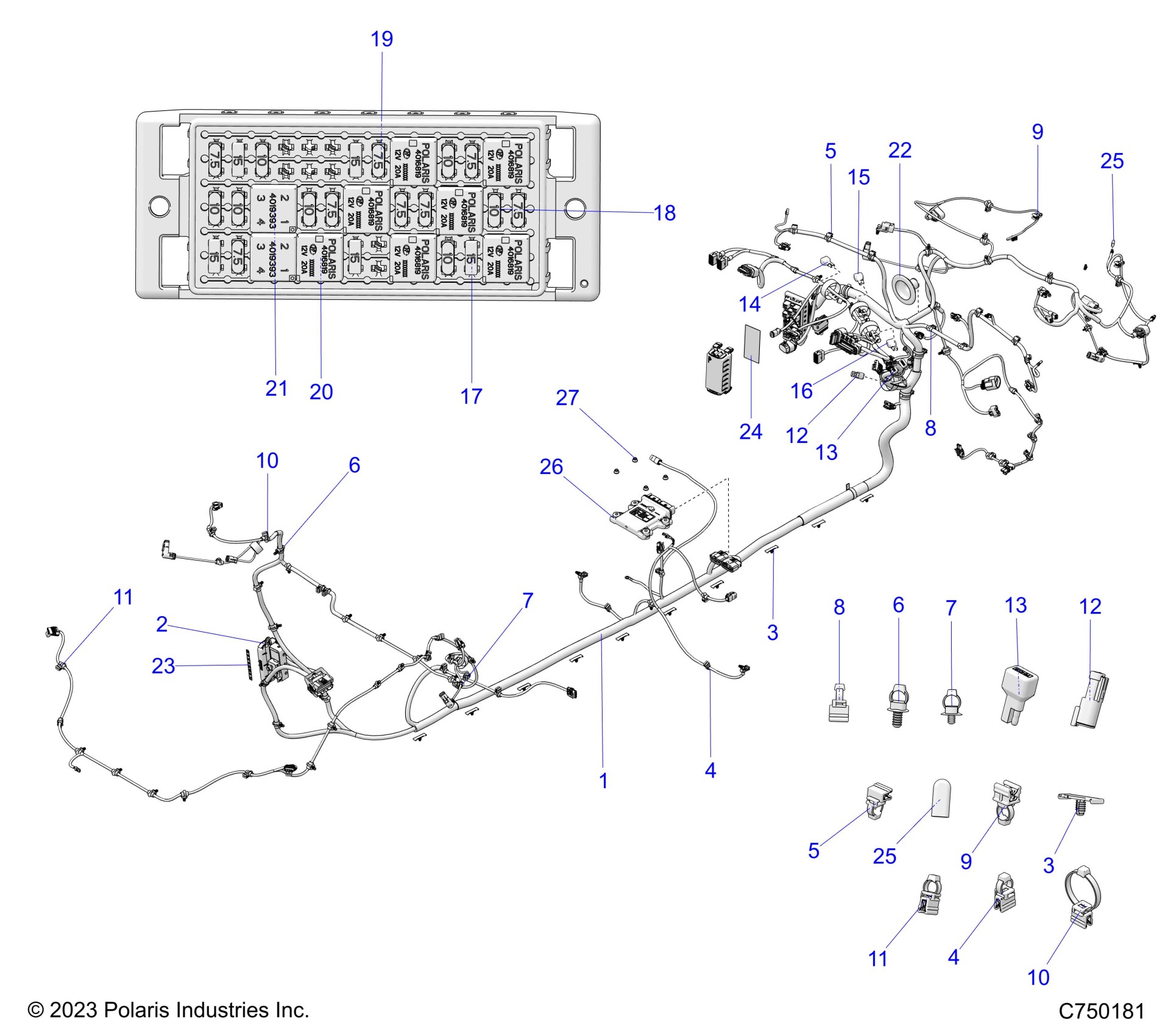

Polaris RZR PRO R4 FACTORY ARMORED LE ULTIMATE (R02) - Z25R4P2KAE/BE ELECTRICAL, WIRE HARNESS, CHASSIS - Z25R4P2KAE/BE (C750181) Diagram

#

Description
Price

1

HARN-CHASSIS,ULT,PROR,ULT,MP [INCL. 2-25]

2417244

$1,592.79

2

FUSE-PDM

4017598

$57.19

2

COVER-PDM

4018416

Unavailable

3

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

3

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

4

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

4

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

5

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

5

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

7

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

8

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

8

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

9

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

9

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

CLIP, EDGE, HARNESS

7081890

$10.39

11

CLIP, EDGE, HARNESS

7081890

$10.39

12

DIODE-2 AMP

2415626

$14.39

12

DIODE-2 AMP

2415626

$14.39

13

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

13

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

14

RESISTOR-1.6KOHM

2415213

$8.79

15

RESISTOR-4.75KOHM

2415214

$8.79

16

RESISTOR-24.9KOHM

2415215

$8.79

17

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

18

FUSE-IGNITION,10 AMP

2434016

$4.79

19

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

20

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

21

SSR-4PIN

4019393

$103.99

22

GROMMET - 65 MM, BLK

5813954

$7.19

23

LABEL-PDM,RZR,G4

7191499

Unavailable

24

LABEL-FUSEBOX,PROR

7199860

Unavailable

25

CAP - VINYL, 125X375, BLACK

5438230

$5.59

25

CAP - VINYL, 125X375, BLACK

5438230

$5.59

26

SCM-PROGRAMMED,PRO R,MP [TO 6/23/2025]

4081371

$718.95

26

SCM-PROGRAMMED,PRO R,MP [FROM 6/23/2025]

4083377

Unavailable

27

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49
