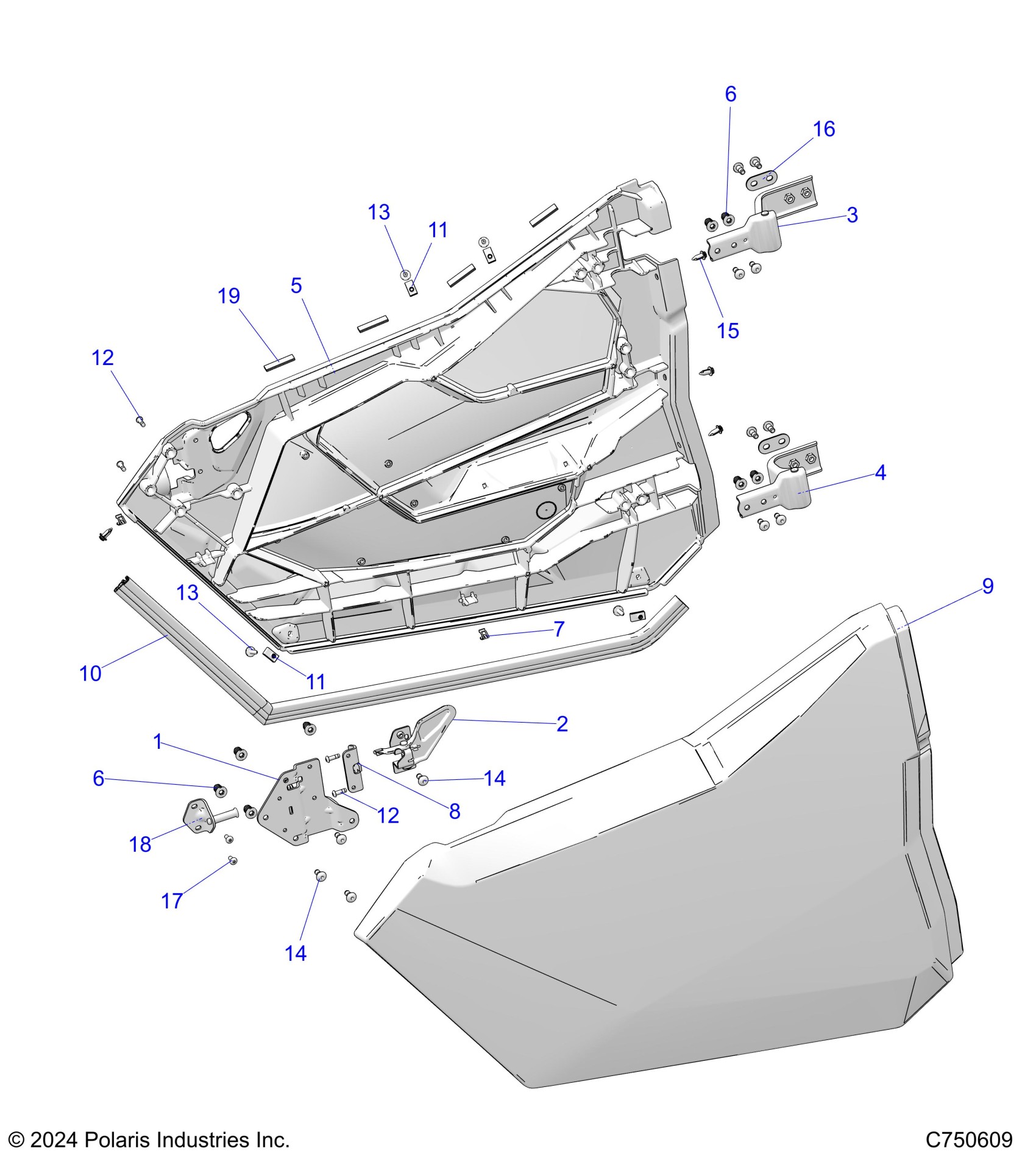

Polaris RZR PRO R4 FACTORY ARMORED LE ULTIMATE (R02) - Z25R4P2KAE/BE BODY, DOORS, FRONT - Z25R4P2KAE/BE (C750609) Diagram

#

Description
Price

1

WELD-BRKT,DOOR,LATCH,MOUNT,LH

1028866

$43.99

1

WELD-BRKT,DOOR,LATCH,MOUNT,RH

1028867

$43.99

2

ASM-ACTUATOR,LATCH,LH [TO 8/17/2025]

2637402

$39.99

2

ASM-ACTUATOR,LATCH,LH [FROM 8/17/2025]

2640457

$39.99

2

ASM-ACTUATOR,LATCH,RH [TO 8/17/2025]

2637403

$39.99

2

ASM-ACTUATOR,LATCH,RH [FROM 8/17/2025]

2640458

$39.99

3

ASM-HINGE,FRONT,UPPER,MP

2639401

$43.99

4

ASM-HINGE,FRONT,LOWER,MP

2639402

$35.99

5

ASM-DOOR,INNER,FRONT,MP,LH

2639614

Unavailable

5

ASM-DOOR,INNER,FRONT,MP,RH

2639615

Unavailable

6

INSERT-M8X1.25,THREADED [TO 2/24/2025]

7548153

Unavailable

6

INSERT-M8X1.25,THREADED [FROM 2/24/2025]

7548170

$2.39

6

INSERT-M8X1.25,THREADED [TO 2/24/2025]

7548153

Unavailable

6

INSERT-M8X1.25,THREADED [FROM 2/24/2025]

7548170

$2.39

7

CLIP-TINNERMAN,D98640-051M

7670136

$2.39

8

ASM-LATCH,DOOR,LH

2639731

$27.99

8

ASM-LATCH,DOOR,RH

2639732

$27.99

9

DOOR-SKIN,FRT,LH,MP,PNT,MARORG [INCL. 1-16][MATTE MARMALADE ORANGE]

5465000-991

Unavailable

9

DOOR-SKIN,FRT,RH,MP,PNT,MARORG [INCL. 1-16][MATTE MARMALADE ORANGE]

5465001-991

Unavailable

10

SEAL-BULB,FRONT,DOOR,LH,MP

5526553

Unavailable

10

SEAL-BULB,FRONT,DOOR,RH,MP

5526554

Unavailable

11

CLIP-U SPEED NUT

7081305

$1.99

11

CLIP-U SPEED NUT

7081305

$1.99

12

BOLT-M6X1.0X20,PH/TX-OLIVE D

7518616

$1.49

12

BOLT-M6X1.0X20,PH/TX-OLIVE D

7518616

$1.49

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

15

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

16

PLATE-HINGE,ADJUSTMENT

5274547

$8.79

17

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

18

WELD-STRIKER

1026523

$15.83

19

DUAL LOCK-12.7MMX50.8MM

8360250

$3.99
