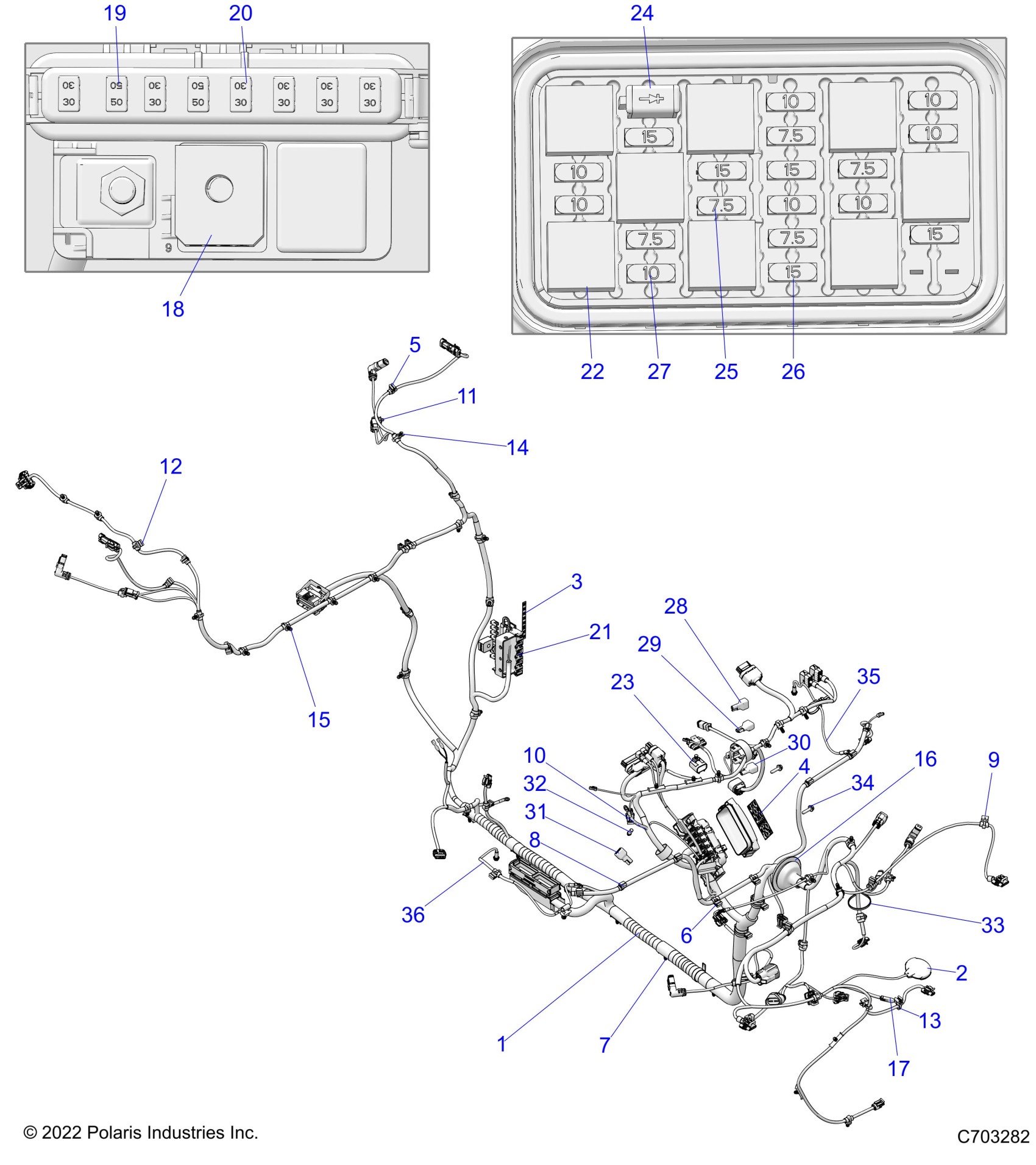

Polaris RZR PRO R ULTIMATE TLD (R01) - Z23RGU2KAN/BN ELECTRICAL, WIRE HARNESS, CHASSIS - Z23RGU2KAN/BN (C703282) Diagram

#

Description
Price

1

HARN-CHASSIS,ULT,PROR LE [INCL. 2-33]

2416689

$1,619.19

2

ANTENNA,GPS,EXT

4018662

$111.99

3

LABEL-PDM,RZR,G4

7191499

Unavailable

4

LABEL-FUSE BOX

7197503

Unavailable

5

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

6

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

7

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

8

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

9

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

10

CLIP - ROUTING, DIN BOX

7082020

$5.59

11

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

12

CLIP, EDGE, HARNESS

7081890

$10.39

13

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

14

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

16

GROMMET - 65 MM, BLK

5813954

$7.19

17

CAP - VINYL, 125X375, BLACK

5438230

$5.59

18

FUSE-ZCASE, 200A

4018415-200

$37.39

19

FUSE-MCASE,50A

4018414-50

$9.59

20

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

21

FUSE-PDM

4017598

$57.19

22

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

23

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

24

DIODE-6AMP

4011474

$40.46

25

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

26

FUSE-15AMP,MINI BLADE

4010859

$7.19

27

FUSE-IGNITION,10 AMP

2434016

$4.79

28

RESISTOR-24.9KOHM

2415215

$8.79

29

RESISTOR-4.75KOHM

2415214

$8.79

30

RESISTOR-1.6KOHM

2415213

$8.79

31

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

32

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

35

LED-PANEL MNT,12V,BLUE,LE,LH

2416169

$51.99

36

LED-PANEL MNT,12V,BLUE,LE,RH

2416170

$59.99
