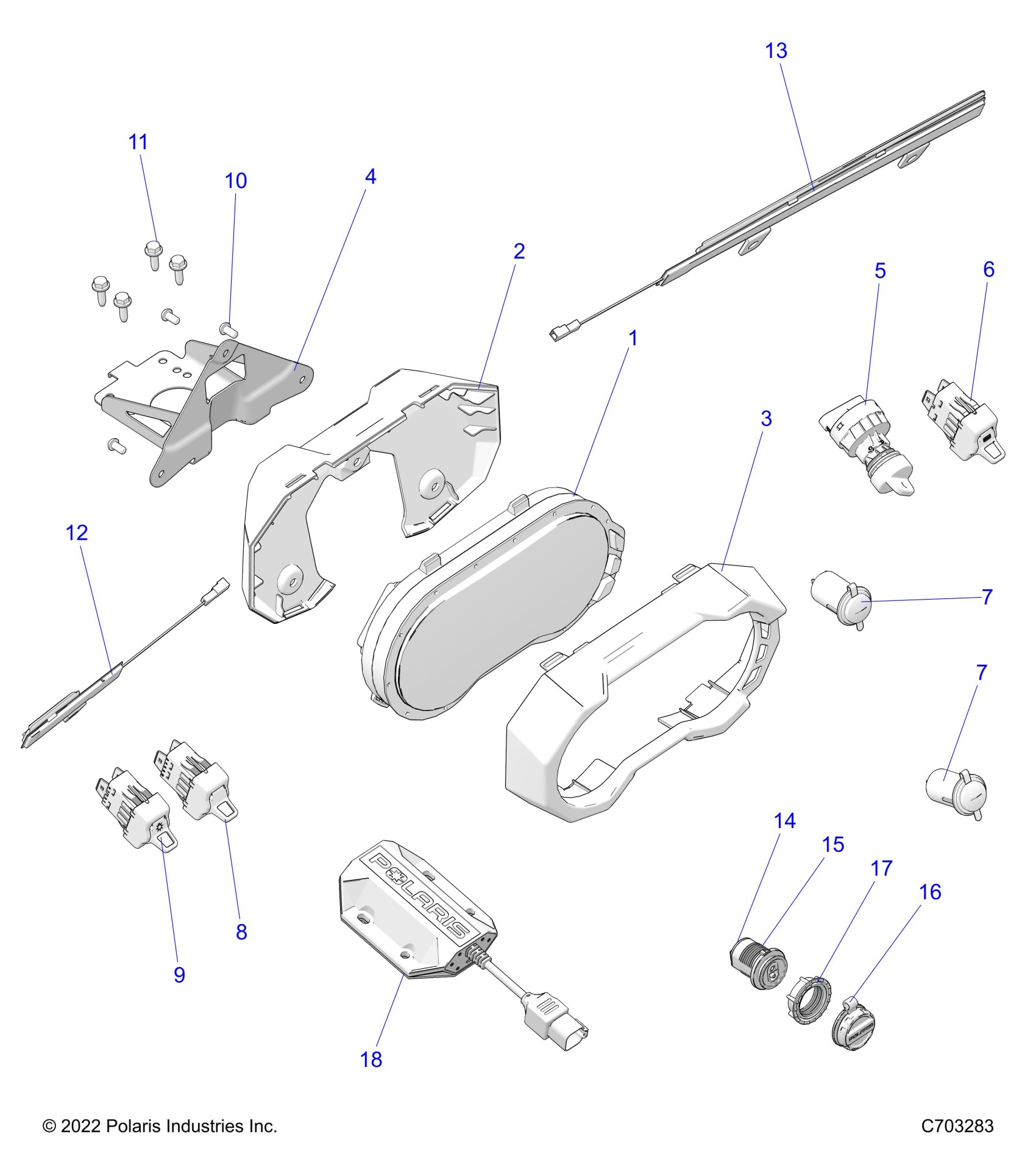

Polaris RZR PRO R ULTIMATE TLD (R01) - Z23RGU2KAN/BN ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z23RGU2KAN/BN (C703283) Diagram

#

Description
Price

1

ASM-C4,RZR 500K

3286874

Unavailable

2

BEZEL-GAUGE,REAR

5455957

$9.59

3

BEZEL-GAUGE,FRONT

5455956

$9.59

4

BRKT-MOUNT,C4 GAUGE

5266496

$43.99

5

SWITCH-KEY,4 POSITION,SEALED

4016135

$47.99

6

SWITCH-DRIVER MODE

4018462

$79.99

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

8

SWITCH-3 POSITION 4WD

4080751

$63.99

9

SWITCH-HEADLIGHT

4017992

$59.99

10

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

ASM-LIGHT,DASH,DRIVER

2414547

$71.99

13

ASM-LIGHT,DASH,PASS

2414549

$83.99

14

ASM-CHARGE PORT,BASE [INCL. 16-17]

2415295

$40.46

15

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

16

CAP-CHARGE PORT

5417215

$12.79

17

NUT-CHARGE PORT

5456622

Unavailable

18

HARDWARE-DONGLE,TELEMATICS

4080567

Unavailable
