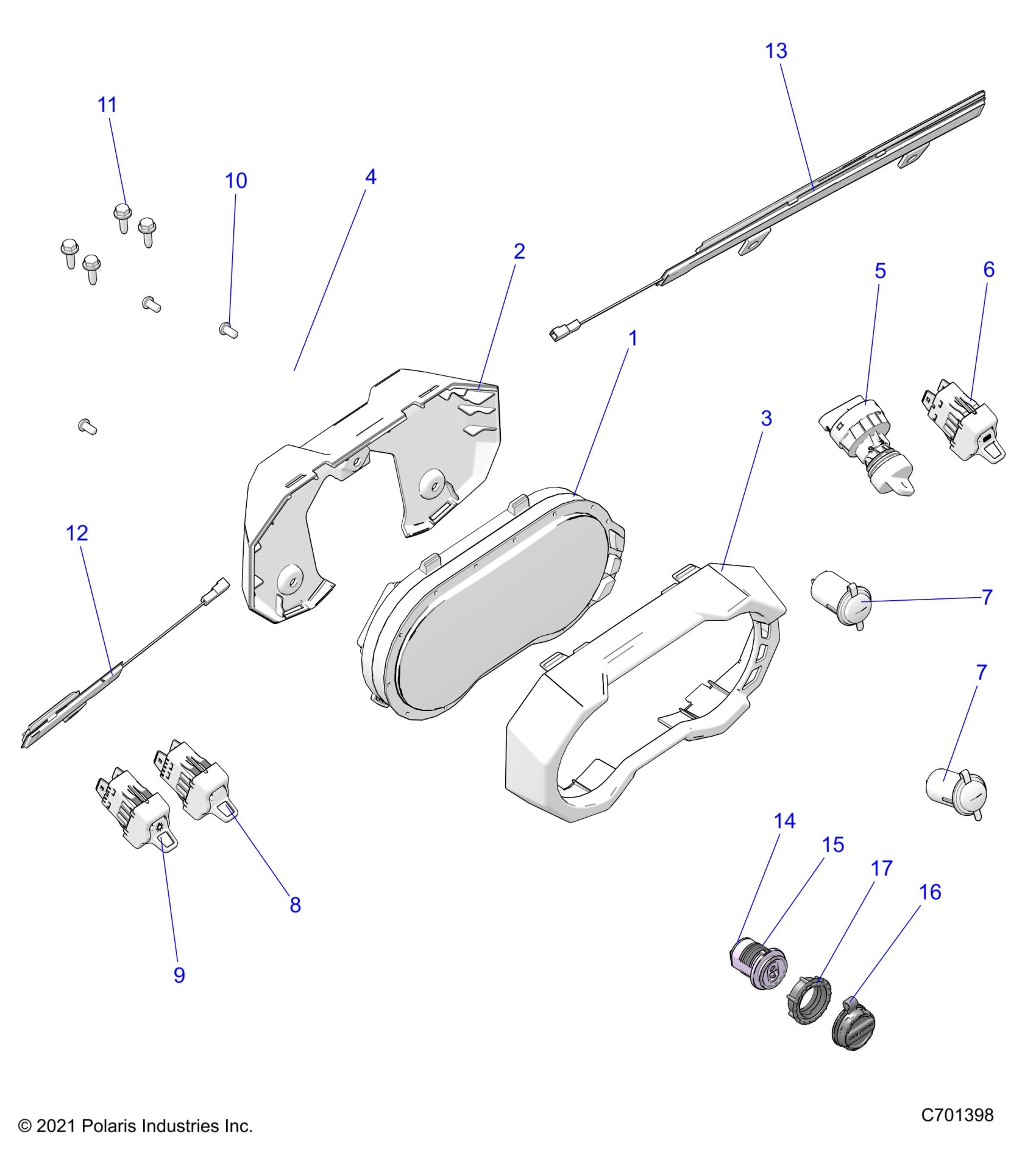

Polaris RZR PRO R ULTIMATE (R02) - Z23RGL2KAJ/BJ/KAK/BK ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z23RGL2KAJ/BJ/KAK/BK (C0704548-02) Diagram

#

Description
Price

1

ASM-C4,RZR 500K

3286874

$529.99

2

BEZEL-GAUGE,REAR

5455957

$9.70

3

BEZEL-GAUGE,FRONT

5455956

$9.70

4

BRKT-MOUNT,C4 GAUGE

5266496

$44.51

5

SWITCH-KEY,4 POSITION,SEALED

4016135

$56.99

6

SWITCH-DRIVER MODE

4018462

$80.94

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

8

SWITCH-3 POSITION 4WD

4080751

$79.99

9

SWITCH-HEADLIGHT

4017992

$71.24

10

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

12

ASM-LIGHT,DASH,DRIVER

2414547

$89.99

13

ASM-LIGHT,DASH,PASS

2414549

$99.74

14

ASM-CHARGE PORT,BASE [INCL. 16-18]

2415295

$44.51

15

PLUG-HARNESS CHARGE PORT �

2415198

$44.51

16

CAP-CHARGE PORT �

5417215

$12.94

17

NUT-CHARGE PORT �

5456622

$44.51
