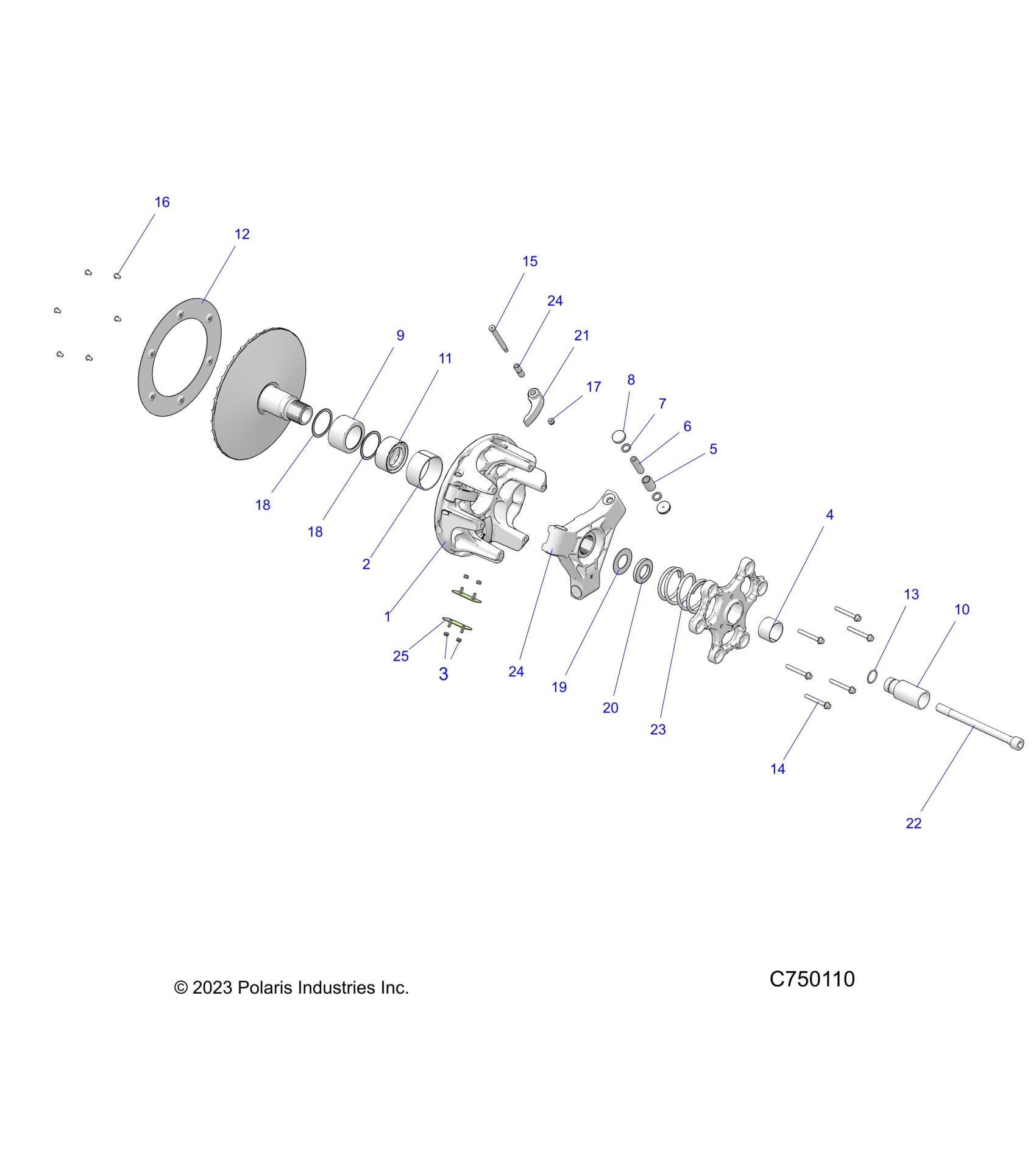

Polaris RZR PRO R ULTIMATE (R02) - Z23RGL2KAJ/BJ/KAK/BK DRIVE TRAIN, PRIMARY CLUTCH - Z23RGL2KAJ/BJ/KAK/BK (C750110) Diagram

ASM-DRIVE CLUTCH, RZR,G4 [INCL. 1-21,23-26]

1327309

$845.49

ASM-DRIVE CLUTCH,BASIC

1327310

$809.99

BUSHING-DU,60X65X30

3515116

$19.84

NUT-M5X.8,HX NYL-Y

7546601

$1.19

BUSHING-DU.35X39X25

3515109

$4.76

ASM-SPIDER ROLLR,12X17X25,DP11

1323587

$28.32

PIN-SPIDER,8X12X40

5142278

$5.56

WASHER-12X17X1.4,SP-21

5455244

$3.97

BUTTON-CLUTCH,24X5.25,SCP

5456312

$9.49

BEARING-NEEDLE,45X60X35,FKM

3515117

$51.59

POST-CLUTCH,OUTER

5142275

$28.32

SPACER-CLUTCH,60MM

5142338

$36.41

PLATE-WINDAGE,DRIVE

5267245

$28.32

O-RING-020 0.875X0.0625

5416424

$4.74

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.97

BOLT-SHOULDER,8X65,10-24 [TO 2/24/2022]

7520949

$6.35

BOLT-SHOULDER,8X65,10-24 [FROM 2/24/2022]

7527984

$6.35

SCR-TXBH-M5X0.8X8 SPC TRILOBE

7521023

$3.17

NUT-10-24-FLEX LOC-Z

7541906

$3.17

WSHR-45.5X54X0.8,SP-21

7557138

$4.74

WSHR-45.5X54X0.8,SP-21

7557138

$4.74

WSHR-26.5X49.0X1.21 ZY3

7557139

$4.84

WSHR-SPR,26.5X45.7X6.86,P&O

7557140

$7.59

ASM-WEIGHT-SHIFT,XP [TO 2/24/2022]

1323597

$14.99

ASM-WEIGHT-SHIFT 38-117 [FROM 2/24/2022]

1327358

$34.99

SCR-HXFL,M14X1.5X180 12.9 SPC

7520950

$11.39

SPRING-CLUTCH,SP

7045118

$32.37

BUSHING-WEIGHT,8X10X30,DU

5455243

$3.97

BUSHING-WEIGHT,8X10X30,DU

5455243

$3.97

ASM-CLUTCH WEAR

1327285

$8.89
