BODY, DOORS - Z23RGL2KAJ/BJ/KAK/BK (C701161-01)

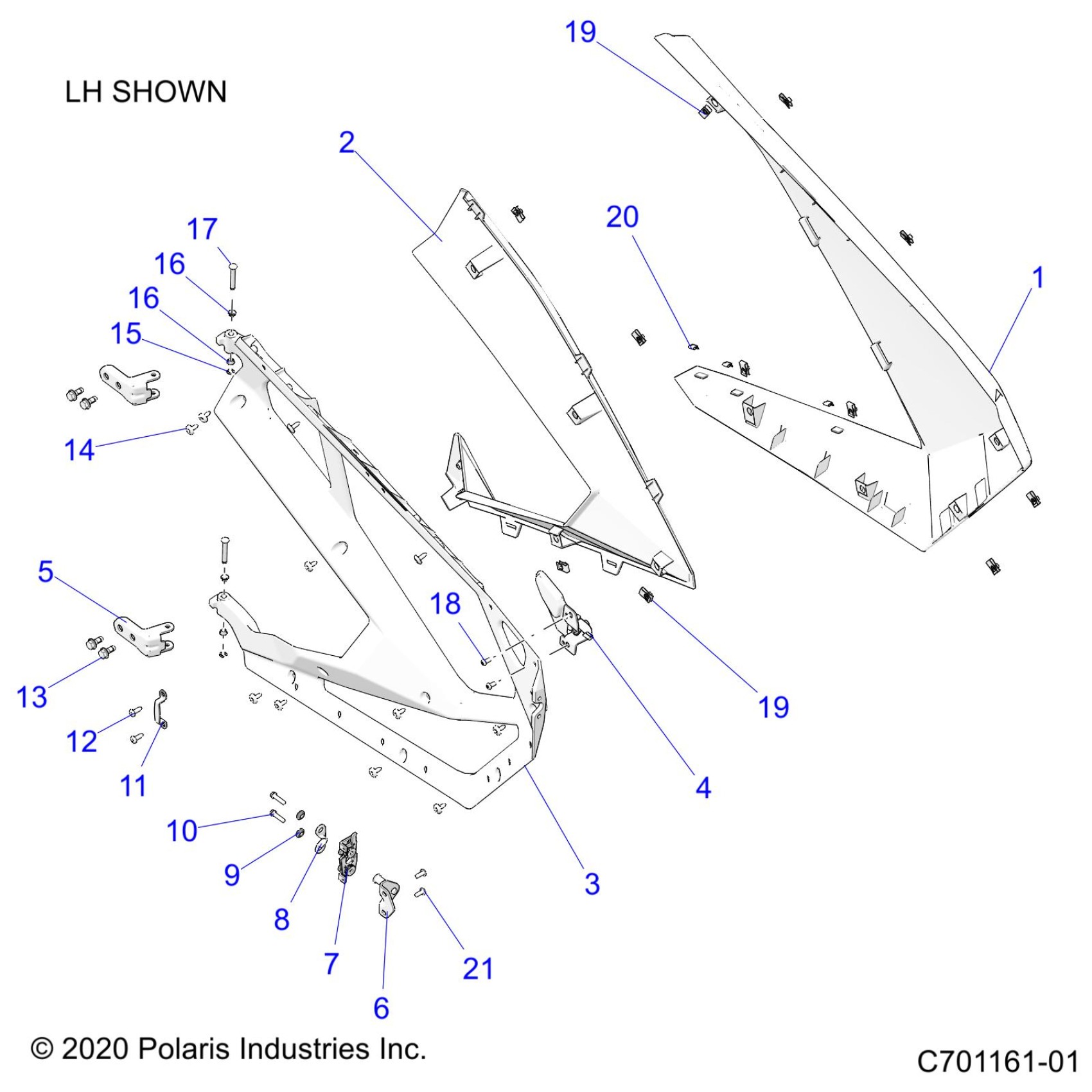

Polaris RZR PRO R ULTIMATE (R02) - Z23RGL2KAJ/BJ/KAK/BK BODY, DOORS - Z23RGL2KAJ/BJ/KAK/BK (C701161-01) Diagram
#
Description
Price
1
PNL-DOOR,FRT,PNT,LH,STLTH BLK [AK][BK]
5455960-464
$475.79
1
PANL-DOOR,FRT,PNT,RH,STLTH BLK [AK][BK]
5455961-464
$475.79
1
PANEL-DOOR,FRT,PAINT,LH,ACRSTL [AJ][BJ]
5455960-809
$475.79
1
PANL-DOOR,FRT,PNT,RH,AZR CRSTL [AJ][BJ]
5455961-809
$475.79
2
PNL-DOOR,RR,PLAT,LH,PNT,ACRSTL [AJ][BJ]
5457098-809
$327.99
2
PNL-DOOR,RR,PLAT,RH,PNT,ACRSTL [AJ][BJ]
5457099-809
$327.99
2
PNL-DOOR,RR,PLAT,LH,PNT,ST BLK [AK][BK]
5457098-464
$327.99
2
PNL-DOOR,RR,PLAT,RH,PNT,ST BLK [AK][BK]
5457099-464
$327.99
3
CASTING-DOOR FRAME,LH,BLK
5634424-458
$327.99
3
CASTING-DOOR FRAME,RH,BLK
5634425-458
$291.99
4
ASM-ACTUATOR,LATCH,LH
2637402
$39.99
4
ASM-ACTUATOR,LATCH,RH
2637403
$39.99
5
BRKT-DOOR HINGE
5267526
$31.99
6
WELD-STRIKER
1026523
$15.83
7
ASM-LATCH,DOOR,LH [TO 10/05/2023]
2637039
$31.99
7
ASM-LATCH,DOOR,LH [FROM 10/05/2023]
2639731
$27.99
7
ASM-LATCH,DOOR,RH [TO 10/05/2023]
2637040
$31.99
7
ASM-LATCH,DOOR,RH [FROM 10/05/2023]
2639732
$27.99
8
BUMPER-DOOR
5417528
Unavailable
9
SLEEVE-SHLD,15.5OD,10 OD,6.5ID
5140211
$3.99
10
SCREW-HXFLG,M6X1.0X25,10.9
7519297
$3.99
11
BRKT-TRIM,DOOR
5267829
$8.79
12
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
7519045
$3.19
13
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
$3.99
14
SCR-M6X1X16 TR/TX-M
7518936
Unavailable
15
NUT-HXFL-M6X1.0 8 ZB3 NYL [FROM 1/3/2022}
7547453
$3.99
15
E-CLIP,M6, DIN 6799 [TO 1/3/2022}
7710466
$3.19
16
BUSHING-DOOR PIVOT
5266311
$3.19
16
BUSHING-DOOR PIVOT
5266311
$3.19
17
SCR-TXWH-M6X1.0X54 10.9 ZTB SP [FROM 1/3/2022}
7527850
$3.19
17
PIN-DOOR HINGE [TO 1/3/2022}
7662356
$5.27
18
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$3.99
19
CLIP-U SPEED NUT
7081305
Unavailable
19
CLIP-U SPEED NUT
7081305
Unavailable
20
FASTENER-U TYPE CLIP
7670040
$3.99
21
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$3.99
