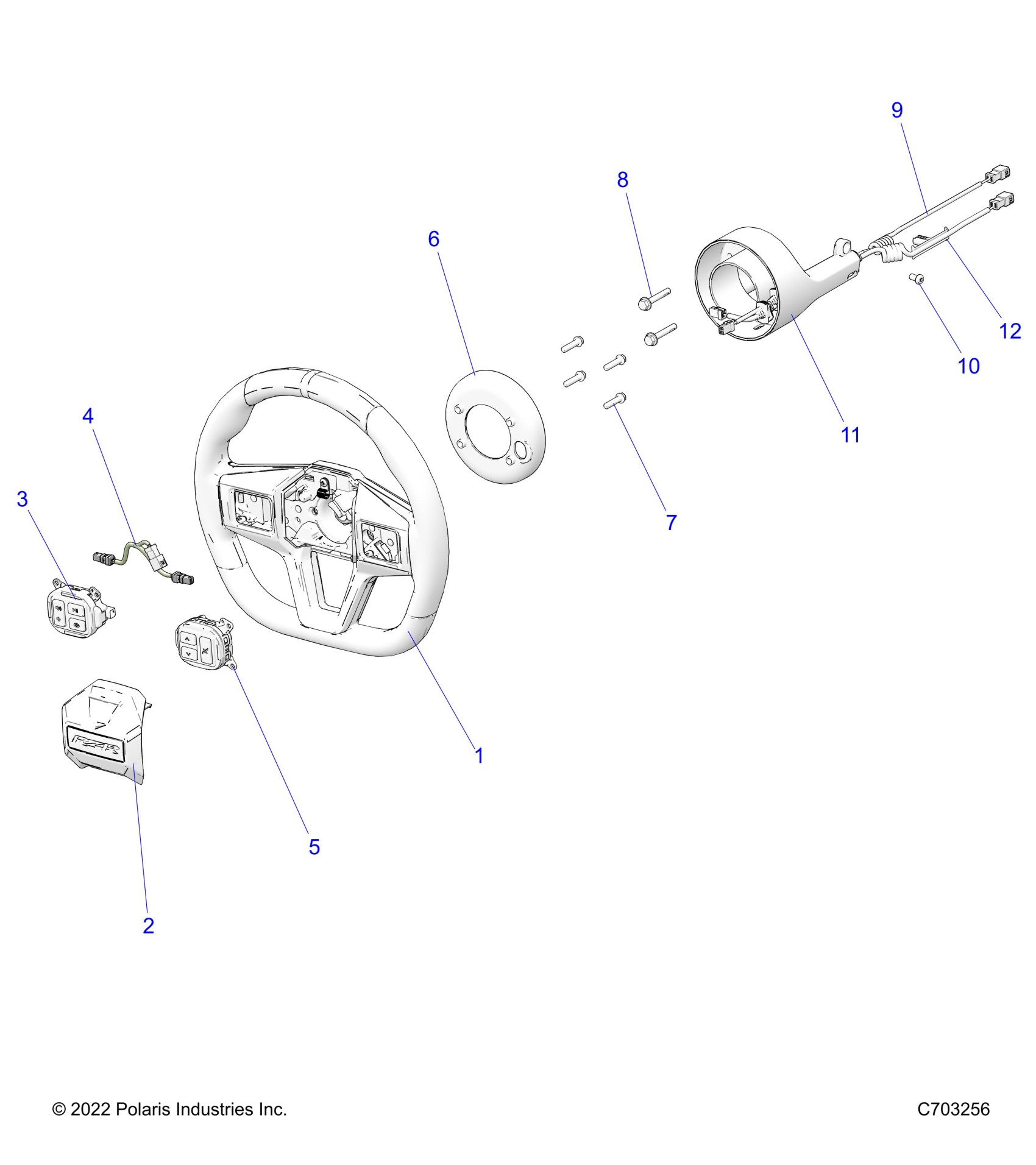

Polaris RZR PRO R ULTIMATE (R02) - Z23RGD2KAJ/AK/BJ/BK STEERING, WHEEL - Z23RGD2KAJ/AK/BJ/BK (C703256) Diagram

#

Description

Price

1

WHEEL-STEERING,13"

1824823

$426.79

2

CAP-STEERING WHEEL,BASE,BLK

5456146-070

$23.99

3

SWITCH-MODULE,STR WHL,500K,LH [TO 1/9/2023]

4019327

Unavailable

3

SWITCH-ASSY,SWC,500K,LH [FROM 1/9/2023]

4081088

$241.99

4

HARNESS-STEERING WHEEL

2414689

$83.99

5

SWITCH-MODULE,STR WHL,500K,RH [TO 1/9/2023]

4019329

Unavailable

5

SWITCH-ASSY,SWC,500K,RH [FROM 1/9/2023]

4081089

$241.99

6

COVER-COLUMN HARNESS

5455734

$8.79

7

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

8

BOLT-M6X1.0X40 HXHD,FLG,W/PATC

7518470

$1.49

9

ASM-COIL,CORD,DRUM [INCL. 11-12]

2414807

$179.73

10

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

GUIDE-COLUMN HARNESS

5455733

$35.99

12

CLIP-WELD STUD,5MM,TAPE-ON

7082493

$3.19
