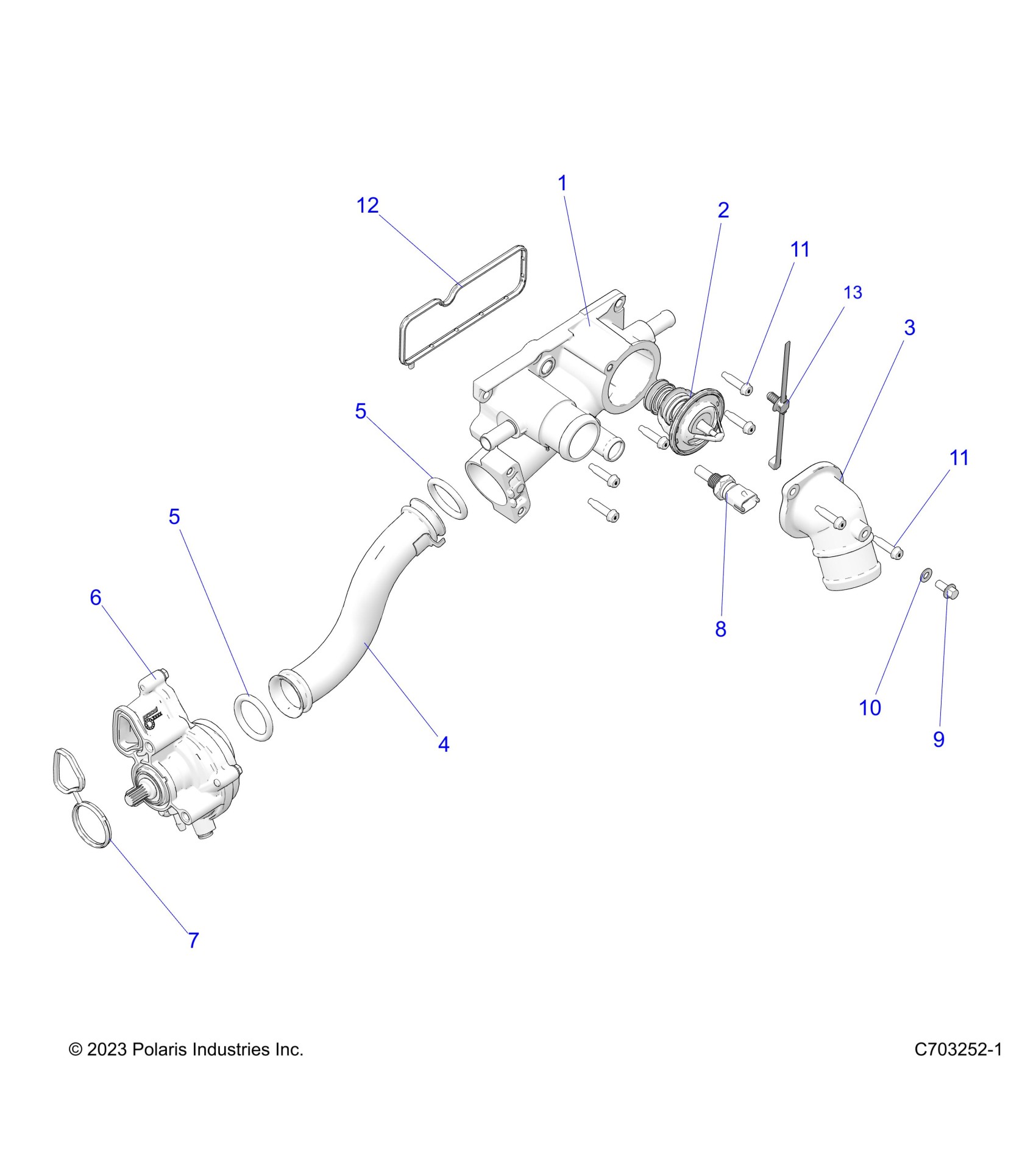

Polaris RZR PRO R ULTIMATE (R02) - Z23RGD2KAJ/AK/BJ/BK ENGINE, WATERPUMP - Z23RGD2KAJ/AK/BJ/BK (C703252-1) Diagram

#

Description
Price

1

HOUSING-TSTAT

3023621

$31.99

1

HOUSING-TSTAT [RACE/HD OPTION]

3024366

$83.99

2

THERMOSTAT-78C

7052766

$55.99

3

COVER, THERMOSTAT

3023629

$31.99

4

TUBE-TRANSFER

3024146

$51.99

5

O-RING

5815287

$23.99

5

O-RING

5815287

$23.99

6

ASM-PUMP,COOLANT,HIGHFLOW

3023613

$219.99

7

GASKET, COOLANT PUMP

5814464

$7.19

8

SENSOR-THERMISTER

4010644

$87.13

9

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED

7520470

$4.79

10

WASHER-FLAT,6.15X12X1MM-AL

7555998

$1.49

11

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

11

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

12

GASKET, MODULE,COOLING

5814698

$10.39

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
