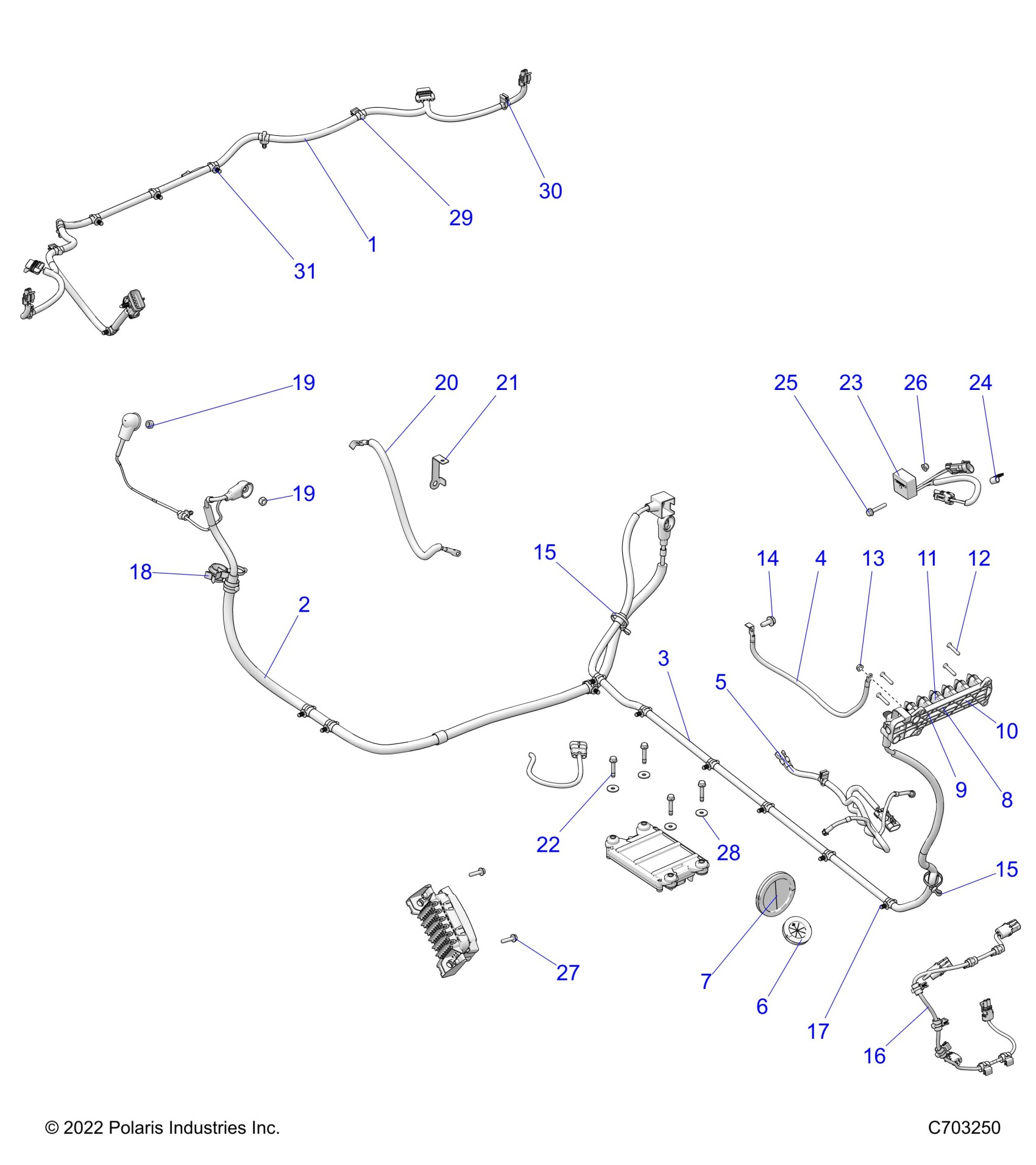

Polaris RZR PRO R ULTIMATE (R02) - Z23RGD2KAJ/AK/BJ/BK ELECTRICAL, WIRE HARNESS, PERIPHERAL - Z23RGD2KAJ/AK/BJ/BK (C703250) Diagram

HARNESS-BOX,RZR G4 [INCL. 29-31]

2415274

$99.99

CABLE-POS,PDM,START,ALT

4019608

$103.99

CABLE-ACCY,PDM TO ATB

4018865

$67.99

CABLE-GROUND,ATB,CHAS

4081125

$35.99

HARNESS-CONSOLE

2415067

$95.99

GROMMET-ELEC,CAB,SLIT

5415049

$3.99

GROMMET-ELECTRICAL,CAB

5417178

$5.59

BLOCK-TERMINAL,3 POST,TALL

4016007

$44.99

FUSE-CARTRIDGE,40A

4013891

$31.99

PLUG,ACCY TB

5454283

$39.99

COVER,TB,JCASE

5454284

$27.99

SCR-10X1.12 TX PN PLS-Y

7512078

$1.49

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

HARNESS-JUMPER FRONT DRIVE

2416574

$43.99

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

CLIP-OMEGA,CABLE/19-24.5MM DIA

7082408

$11.99

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

CABLE-GROUND,ENG,CHAS,G4

4018143

$43.99

BRKT-MOUNT,CONNECTOR,ECOAT

5270941-329

$35.99

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.39

RELAY, SOLID STATE, 9 AMP, LONG, LD

4012829

$71.99

CLAMP-HOSE,.312DIA,VINYL COAT

7080683

$2.39

BOLT-M6X1.0X35,HXFLG/SH-OLV D

7518612

$4.79

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

WASHER-.270X.84X.075 BLK-M

7556386

$4.79

CLIP, EDGE, HARNESS

7081890

$10.39

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
