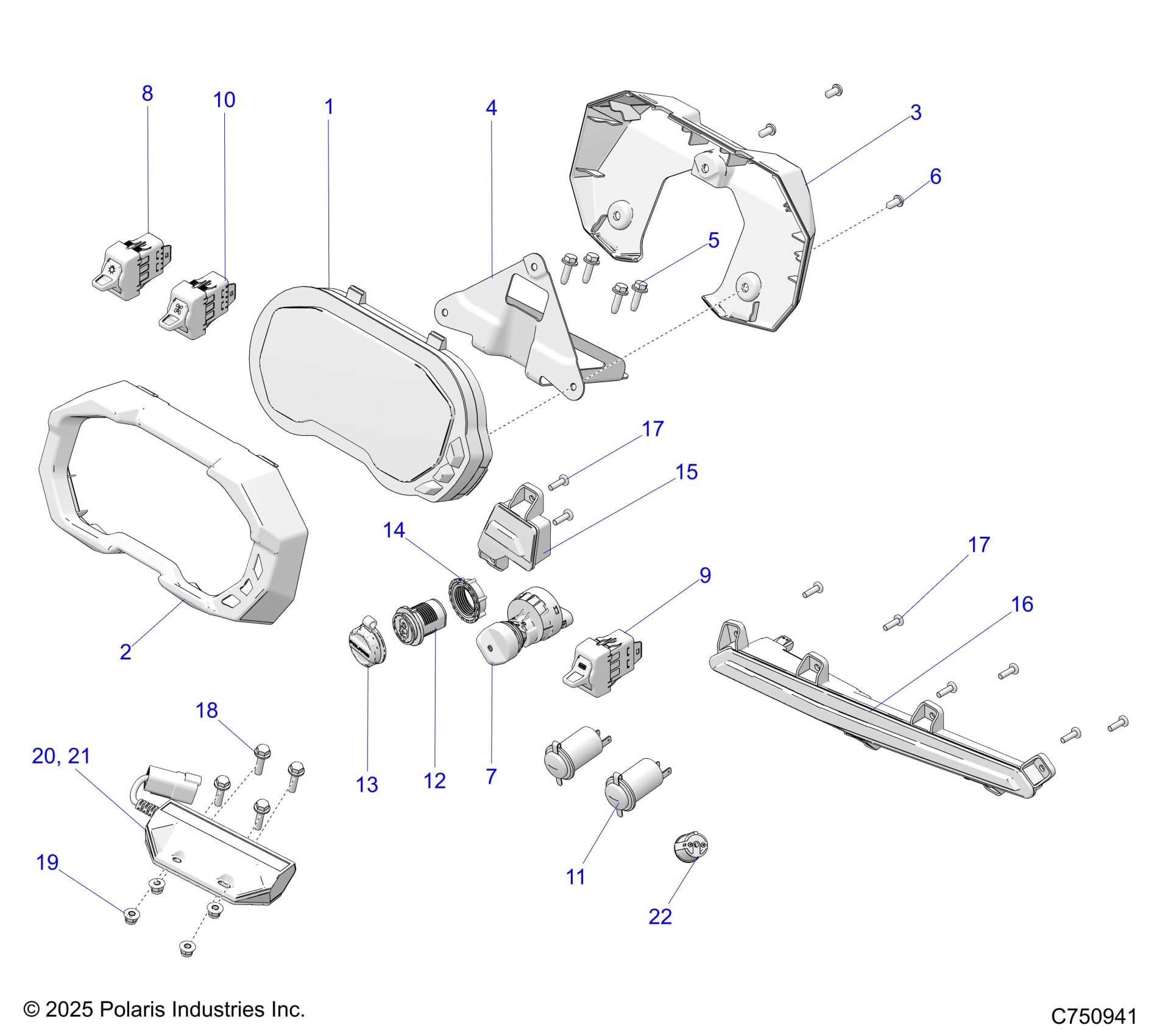

Polaris RZR PRO R ULTIMATE (R01) - Z26RPK2KAR/BR/AV/BV/AC/BC/AJ/BJ ELECTRICAL, DASH INSTRUMENTS, CONTROLS, & LIGHTING - Z26RPK2KAR/BR/AV/BV/AC/BC/AJ/BJ (C750941) Diagram

ASM-C4,500K

3286934

$409.63

PANEL-DASH,BEZEL,C4,BLK

5459971-070

$8.79

BEZEL-GAUGE,REAR

5455957

$9.59

BRKT-MOUNT,C4 GAUGE

5266496

$43.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SWITCH-KEY,4 POSITION,SEALED

4016135

$47.99

SWITCH-HEADLIGHT

4081621

$59.99

SWITCH-DRIVER MODE

4018462

$79.99

SWITCH-3 POSITION 4WD

4080751

$63.99

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

ASM-CHARGE PORT,BASE [INCL. 12-14]

2415295

$40.46

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

CAP-CHARGE PORT

5417215

$12.79

NUT-CHARGE PORT

5456622

Unavailable

ASM-LIGHT,DASH,LH,5700K

2417275

$43.99

ASM-LIGHT,DASH,RH,5700K

2417276

$83.99

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

ASM-DONGLE,TELEMATICS,500K [INCL. 21]

4080566

Unavailable

HARDWARE-DONGLE,TELEMATICS

4080567

Unavailable

CAMERA,C2B,DIG,NON-MIL,REAR

4082714

Unavailable
