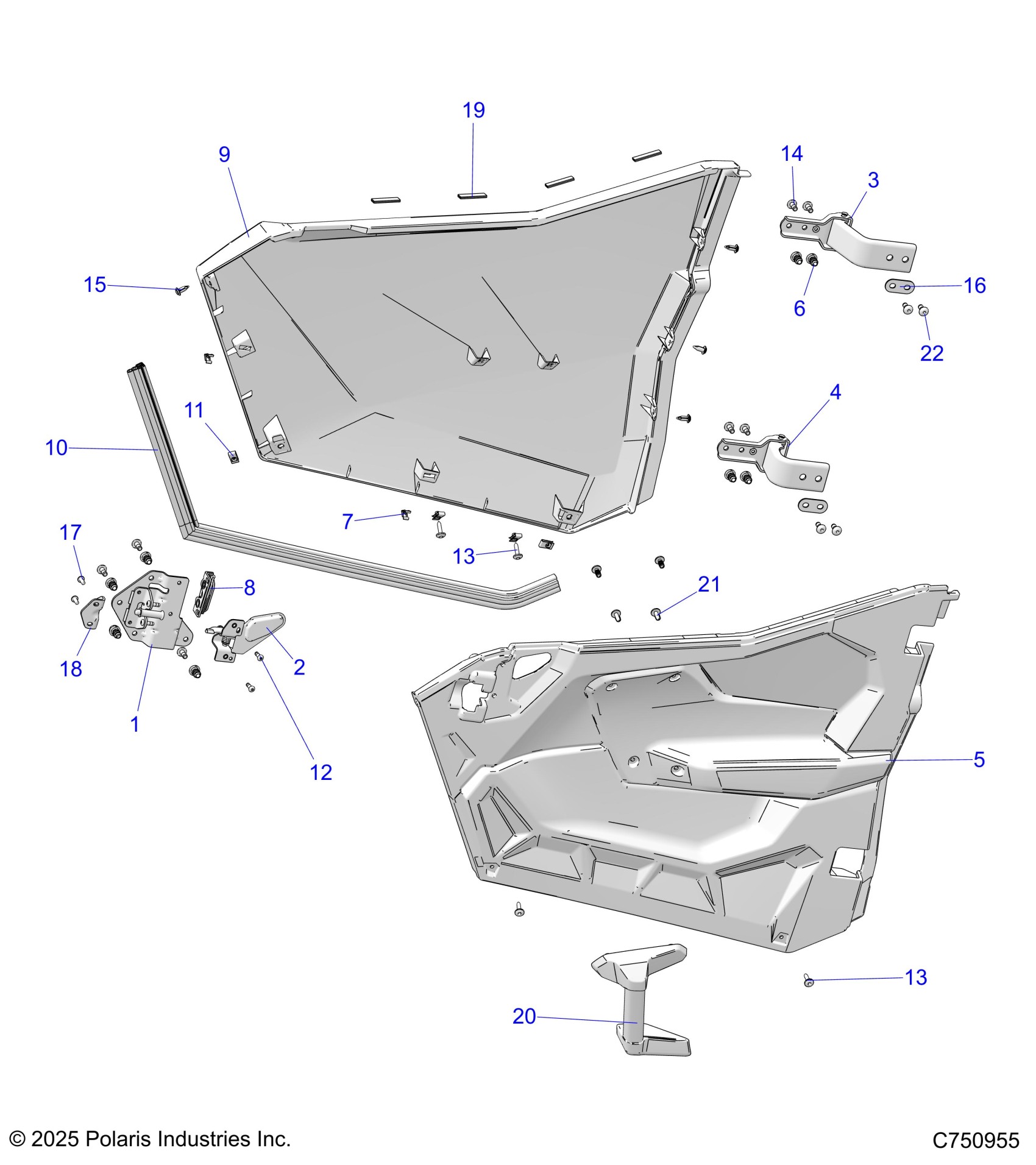

Polaris RZR PRO R ULTIMATE (R01) - Z26RPK2KAR/BR/AV/BV/AC/BC/AJ/BJ BODY, DOORS - Z26RPK2KAR/BR/AV/BV/AC/BC/AJ/BJ (C750955) Diagram

#

Description
Price

1

WELD-BRKT,DOOR,LATCH,MOUNT,LH

1028866

$43.99

1

WELD-BRKT,DOOR,LATCH,MOUNT,RH

1028867

$43.99

2

ASM-ACTUATOR,LATCH,LH

2640457

$39.99

2

ASM-ACTUATOR,LATCH,RH

2640458

$39.99

3

ASM-HINGE,REAR,UPPER,MP

2639399

$43.99

4

ASM-HINGE,FRONT,LOWER

2639400

$43.99

5

ASM-DOOR,INNER,2P,LH

2640390

$163.99

5

ASM-DOOR,INNER,2P,RH

2640391

$163.99

6

INSERT-M8X1.25,THREADED

7548170

$2.39

7

CLIP-TINNERMAN,D98640-051M

7670136

$2.39

8

ASM-LATCH,DOOR,LH

2639731

$27.99

8

ASM-LATCH,DOOR,RH

2639732

$27.99

9

DOOR-SKIN,FRNT,LH,PAINT,I.RED [INDY RED][AR] [BR]

5464998-293

Unavailable

9

DOOR-SKIN,FRT,RH,PAINT,I.RED [INDY RED][AR] [BR]

5464999-293

Unavailable

9

DOOR-SKIN,FRT,LH,PAINT,PURPLE [PURPLE THUNDER][AV] [BV]

5464998-381

Unavailable

9

DOOR-SKIN,FRT,RH,PAINT,PURPLE [PURPLE THUNDER][AV] [BV]

5464999-381

Unavailable

9

DOOR-SKIN,FRNT,LH,PAINT,GHWHT [GHOST WHITE][AC] [BC]

5464998-774

Unavailable

9

DOOR-SKIN,FRT,RH,PAINT,GHWHT [GHOST WHITE][AC] [BC]

5464999-774

Unavailable

9

DOOR-SKIN,FRT,LH,PAINT,MSG [SUPER GRAPHITE SMOKE][AJ] [BJ]

5464998-894

Unavailable

9

DOOR-SKIN,FRT,RH,PAINT,MSG [SUPER GRAPHITE SMOKE][AJ] [BJ]

5464999-894

Unavailable

10

SEAL-BULB,DOOR,LH

5526618

$43.99

10

SEAL-BULB,DOOR,RH

5526619

$43.99

11

CLIP-U SPEED NUT

7081305

$1.99

12

BOLT-M6X1.0X20,PH/TX-OLIVE D

7518616

$1.49

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

15

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

16

PLATE-HINGE,ADJUSTMENT

5274547

$8.79

17

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

18

WELD-STRIKER

1026523

$15.83

19

DUAL LOCK-12.7MMX50.8MM

8360250

$3.99

20

HANDLE,DOOR,FRT,LH,BLK

5467051-070

$35.19

20

HANDLE,DOOR,FRT,RH,BLK

5467052-070

$35.19

21

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

22

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99
