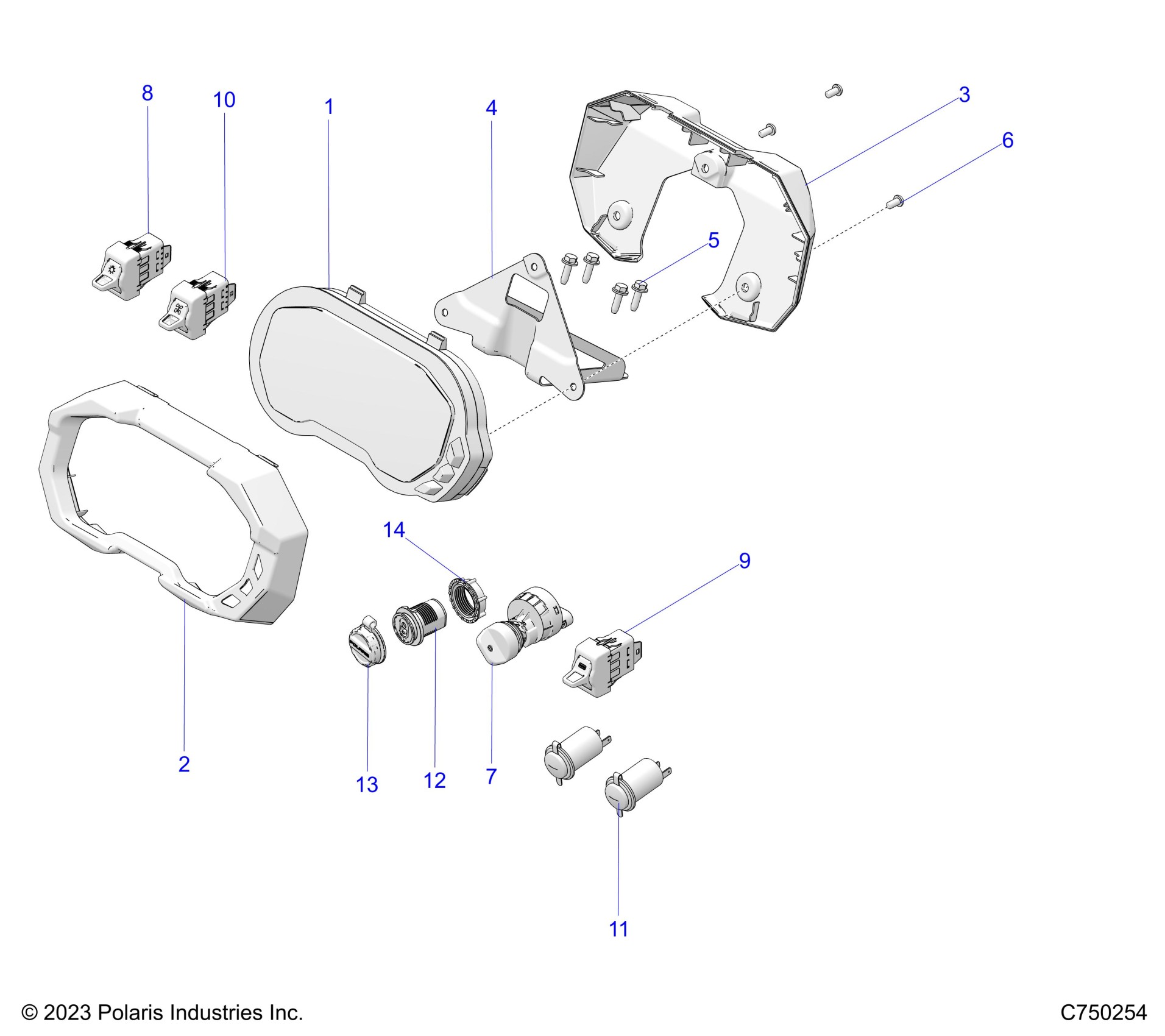

Polaris RZR PRO R SPORT (R02) - Z25RPE2KA4/B4 ELECTRICAL, DASH INSTRUMENTS, CONTROLS, & LIGHTING - Z25RPE2KA4/B4 (C750254) Diagram

#

Description
Price

1

ASM-C4,500K

3287009

$394.39

2

PANEL-DASH,BEZEL,C4,BLK

5459971-070

$8.79

3

BEZEL-GAUGE,REAR

5455957

$9.59

4

BRKT-MOUNT,C4 GAUGE

5266496

$43.99

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

7

SWITCH-KEY,4 POSITION,SEALED

4016135

$47.99

8

SWITCH-HEADLIGHT

4081621

$59.99

9

SWITCH-DRIVER MODE

4018462

$79.99

10

SWITCH-3 POSITION 4WD

4080751

$63.99

11

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

12

ASM-CHARGE PORT,BASE [INCL. 12-14]

2415295

$40.46

12

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

13

CAP-CHARGE PORT

5417215

$12.79

14

NUT-CHARGE PORT

5456622

Unavailable
