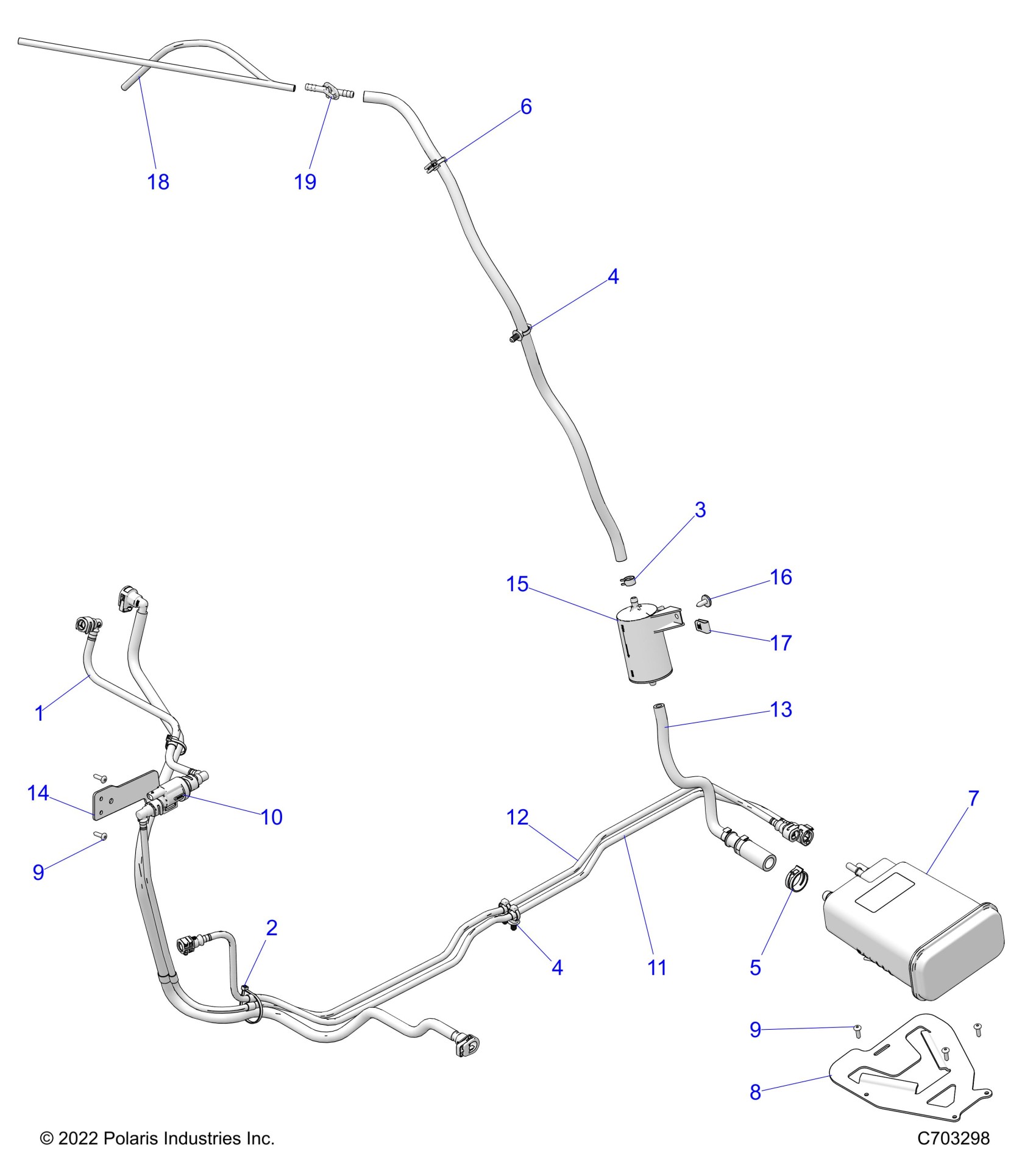

Polaris RZR PRO R SPORT/PREMIUM (R01) - Z23RGC2KAJ/BJ FUEL SYSTEM, FUEL LINES, EVAP - Z23RGCKBJ (C703298) Diagram

#

Description
Price

1

ASM-LINE,PURGE TO TB

2522296

$43.99

2

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

3

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

5

CLAMP-SPRINGBAND 24/12

7081693

$4.03

6

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

7

CANISTER-ACTIVATED CARBON

2521786

$71.99

8

BRKT-MNT CANISTER,BLK

5268296-329

$39.99

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

10

VALVE-PURGE

2521964

$59.99

11

ASM-LINE,TANK TO CANISTER

2522164

$55.99

12

ASM-LINE,CANISTER TO PURGE

2522297

$63.99

13

ASM-HOSE,VENT TO CANISTER

2522459

$43.99

14

BRKT-MNT PURGE VALVE,ECOAT

5269075-329

$35.99

15

FILTER-CANISTER VENT

2521750

$55.99

16

SCR-M6X1X16 TR/TX-M

7518936

$3.99

17

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

18

ASM-LINE,VENT TERM [INCL. 19]

2522401

$31.99

19

FITTING-VENT LINE,35

5457446

$8.79
