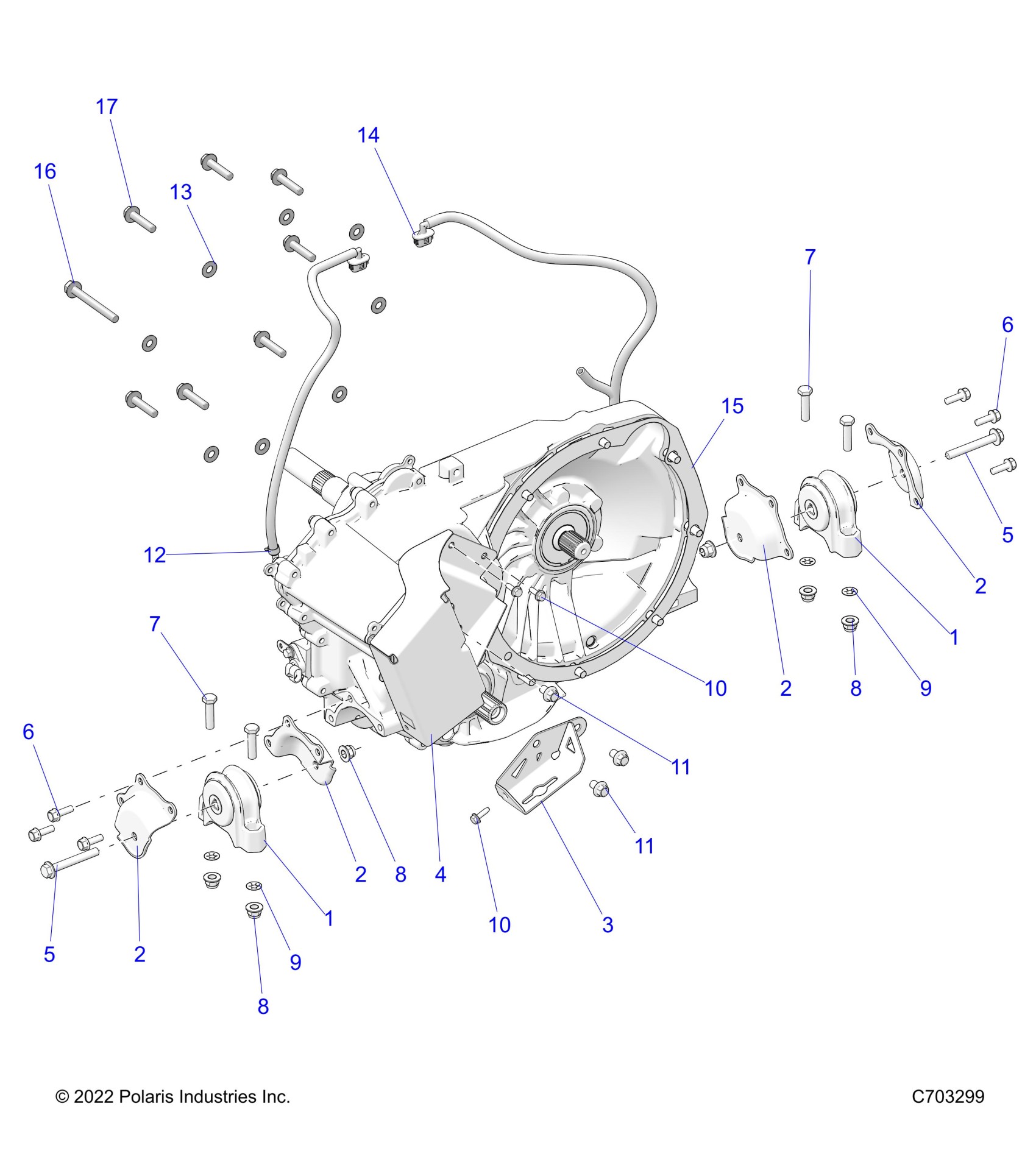

Polaris RZR PRO R SPORT/PREMIUM (R01) - Z23RGC2KAJ/BJ DRIVE TRAIN, GEARCASE, MAIN, MOUNTING - Z23RGC2KAJ/BJ (C703299) Diagram

#

Description
Price

1

MOUNT-ISOLATOR,G4 [TO 10/31/2022]

1334112

Unavailable

1

MOUNT-ISOLATOR,G4 [FROM 10/31/2022]

1337135

$83.99

1

MOUNT-ISOLATOR,G4 [TO 10/31/2022]

1334112

Unavailable

1

MOUNT-ISOLATOR,G4 [FROM 10/31/2022]

1337135

$83.99

2

BRKT-MOTOR MOUNT,BLK

5267287-458

$51.41

2

BRKT-MOTOR MOUNT,BLK

5267287-458

$51.41

2

BRKT-MOTOR MOUNT,BLK

5267287-458

$51.41

2

BRKT-MOTOR MOUNT,BLK

5267287-458

$51.41

3

BRKT-TRANS,CABLE MNT,BLK

5268251-458

$59.99

4

SHIELD-SENSOR, GEAR POSITION

5268362

$51.99

5

SCR-HXFL-M10X1.5X75 8.8 ZY3

7518473

$4.79

5

SCR-HXFL-M10X1.5X75 8.8 ZY3

7518473

$4.79

6

SCR-HEXFLGHD,M8 X 25,0600086(10)

7517839

$5.59

6

SCR-HEXFLGHD,M8 X 25,0600086(10)

7517839

$5.59

7

SCR-HEXHD,M10X40,0600088

7517993

$4.99

7

SCR-HEXHD,M10X40,0600088

7517993

$4.99

8

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

8

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

8

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

9

RETAINER-BOLT,PUSHNUT,3/8"

7670146

$2.39

9

RETAINER-BOLT,PUSHNUT,3/8"

7670146

$2.39

10

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

10

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

11

SCR-HXFL-M10X1.5X16 8.8 ZPB

7517951

$5.59

11

SCR-HXFL-M10X1.5X16 8.8 ZPB

7517951

$5.59

12

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

13

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

14

FITTING-VENT LINE,90

5453464

$5.59

15

GASKET-BELL HOUSING

3610343

$47.99

16

SCR-HXFL-M10X1.5X90 10.9 ZPB

7519172

$10.39

17

SCR-HXFL-M10X1.5X45 10.9 RIE

7519906

$4.79
