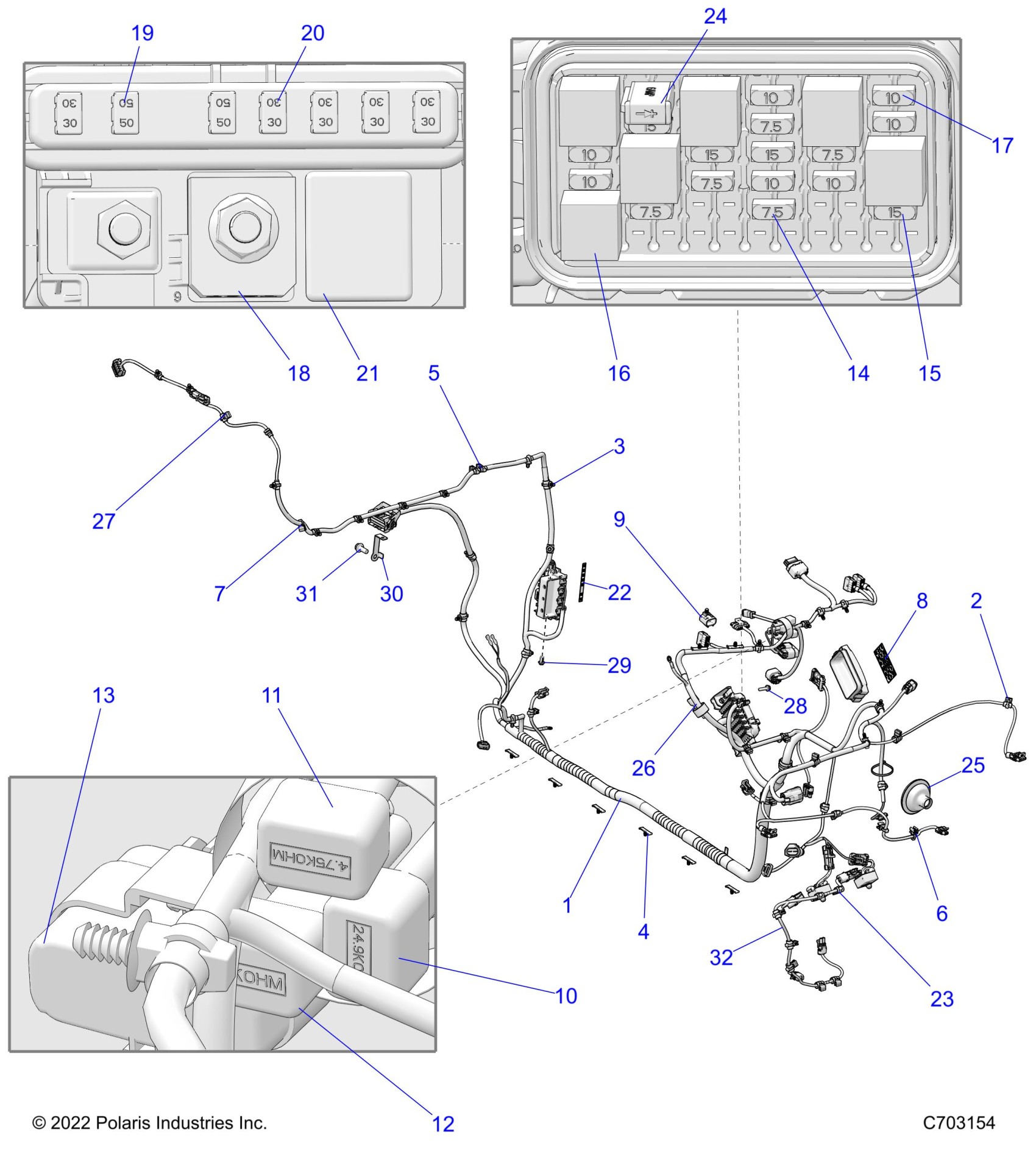

Polaris RZR PRO R RC (R02) - Z23RGK2KAJ/BJ ELECTRICAL, WIRE HARNESS, CHASSIS - Z23RGK2KAJ/BJ (C0704548-8) Diagram

#

Description
Price

1

HARN-CHASSIS,BASE PROR [INCL. 2-27]

2416687

$1,526.79

2

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

3

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

4

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

5

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

6

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

7

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

8

LABEL-FUSE BOX

7197503

Unavailable

9

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

10

RESISTOR-24.9KOHM

2415215

$8.79

11

RESISTOR-4.75KOHM

2415214

$8.79

12

RESISTOR-1.6KOHM

2415213

$8.79

13

CAP-EVAP CONNECTOR

4018655

$3.99

14

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

15

FUSE-15AMP,MINI BLADE

4010859

$7.19

16

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

17

FUSE-IGNITION,10 AMP

2434016

$4.79

18

FUSE-ZCASE, 200A

4018415-200

$37.39

19

FUSE-MCASE,50A

4018414-50

$9.59

20

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

21

FUSE-PDM

4017598

$57.19

22

LABLE-PDM,RZR,G4,BASE

7193060

Unavailable

23

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

24

DIODE-6AMP

4011474

$40.46

25

GROMMET - 65 MM, BLK

5813954

$7.19

26

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

27

CLIP, EDGE, HARNESS

7081890

$10.39

28

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

29

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

30

BRKT-MOUNT,CONNECTOR,ECOAT

5270941-329

$35.99

31

SCR-HXFL-M10X1.5X25,DIN6921ZB

7519349

$5.59

32

HARNESS-JUMPER FRONT DRIVE

2416574

$43.99
