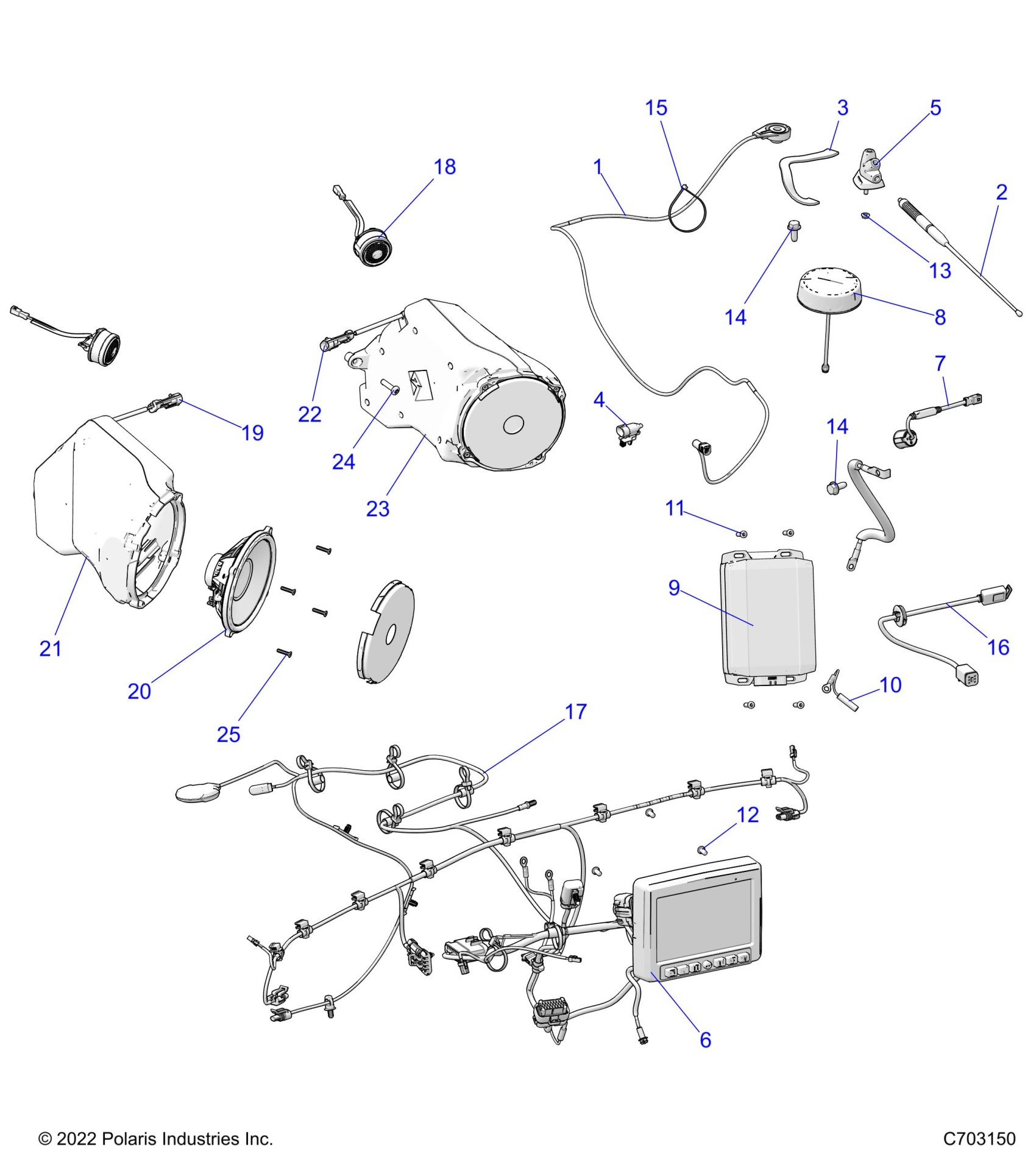

Polaris RZR PRO R RC (R02) - Z23RGK2KAJ/BJ ELECTRICAL, AUDIO, RIDE COMMAND - Z23RGK2KAJ/BJ (C703150) Diagram

HARNESS,AM/FM ANTENNA

2415037

$103.99

ANTENNA MAST, AM/FM, SHORT

4014849

$111.99

STRAP-GROUND,ANTENNA,BRAIDED

4081019

$12.79

SENSOR-GAUGE,AIR TEMP,PNL MNT

4018205

$55.99

MOUNT-ANTENNA,90-DEG ADJ

4019254

$47.99

ASM-DISPLAY,DIG,P7,PRG,500K

3286869

Unavailable

CAM-IR ILLUMINATED,AMB SENSE

4019856

Unavailable

ANTENNA,V2V

4018713

$111.99

ASM-AMP,4 CHANNEL

2414533

Unavailable

JUMPER,AMP GROUND

4018709

$12.79

SCR-10X1.12 TX PN PLS-Y

7512078

$1.49

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

NUT-HXFL-M5X0.8 A2SS

7547437

$3.19

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

HARNESS,USB,RC

2415322

$43.99

HARN-RIDE CMND

2415759

$527.99

ASM-SPEAKER,TWEETER

2414535

$59.99

ASM-ENCL,INJ,SPKR,MID,FR,LH

2415143

$325.59

ASM-SPEAKER,WOOFER

2414536

$147.99

ASM-HOUSING,SPKR,INJ,FR,LH

2637741

$135.99

ASM-ENCL,INJ,SPKR,MID,FR,RH

2415144

$325.59

ASM-HOUSING,SPKR,INJ,FR,RH

2637742

Unavailable

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99
