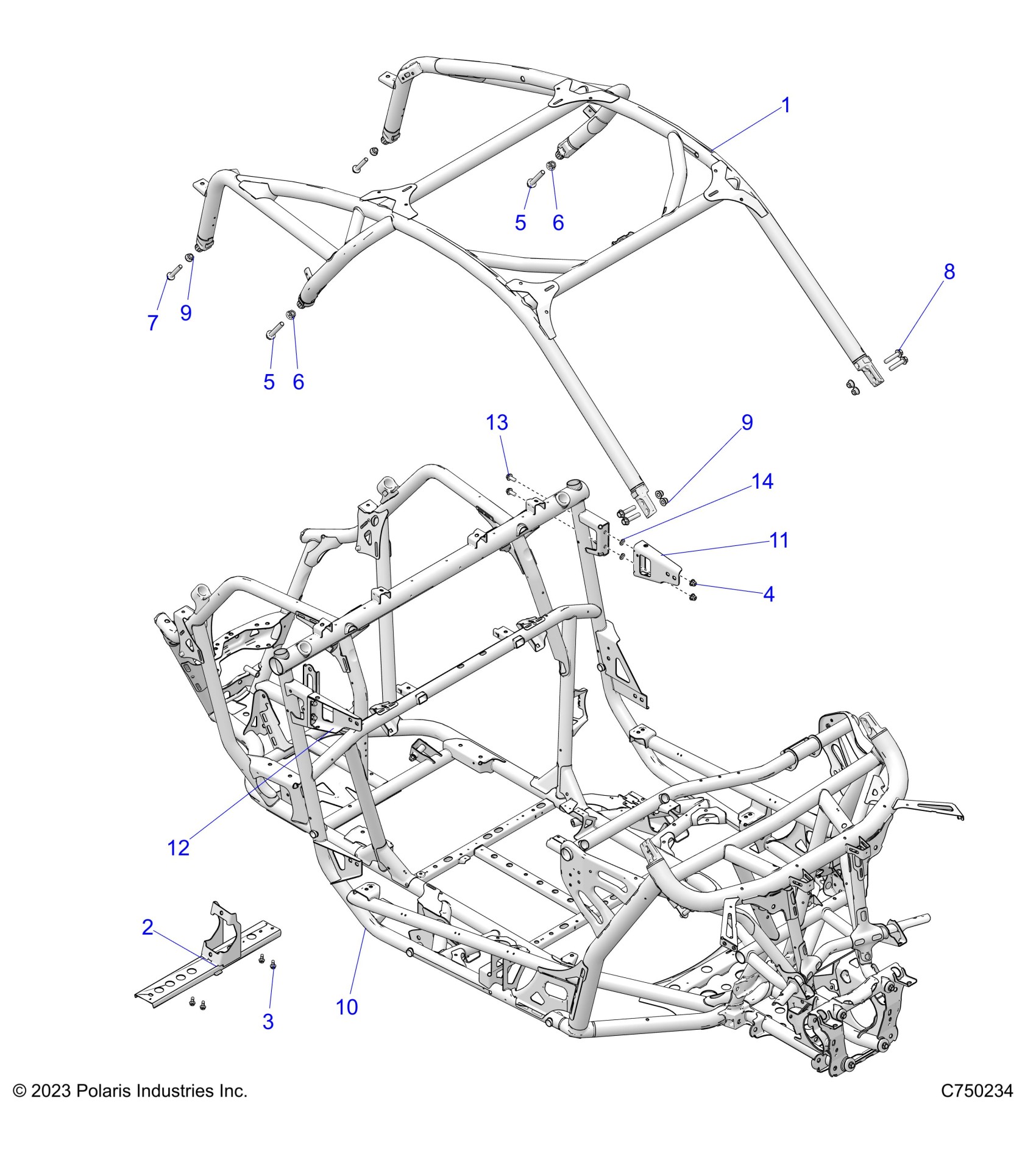

Polaris RZR PRO R RC (R02) - Z23RGK2KAJ/BJ CHASSIS, CAB FRAME - Z23RGK2KAJ/BJ (C750234) Diagram

WELD-ROPS,MAIN,MT TTNM MET SM

1024860-705

$1,909.59

WELD-MOUNT,PROPSHAFT,ECOAT

1025195-329

$93.49

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

SCR-HXFL-M14X2.0X85 10.9 [TO 9/1/2023]

7521241

$10.39

SCR-HXFL-M14X2.0X85 10.9 ZFB [FROM 9/1/2023]

7521335-85

$3.99

SCR-HXFL-M14X2.0X85 10.9 [TO 9/1/2023]

7521241

$10.39

SCR-HXFL-M14X2.0X85 10.9 ZFB [FROM 9/1/2023]

7521335-85

$3.99

NUT-HXFL-M14X2X 10 ZFB SPC

7547981

$3.19

NUT-HXFL-M14X2X 10 ZFB SPC

7547981

$3.19

SCR-HXFL-M12X1.5X75 10.9 ZOD

7521073

$4.39

SCR-HXFL-M12X1.5X60 10.9 ZOD

7519138

$9.59

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

WELD-MAINFRAME,74,BLK

1027808-458

$3,709.19

BRKT-MOUNT,HINGE,UPR,LH,BLK

5271054-458

$67.99

BRKT-MOUNT,HINGE,UPR,RH,BLK

5271055-458

$67.99

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
