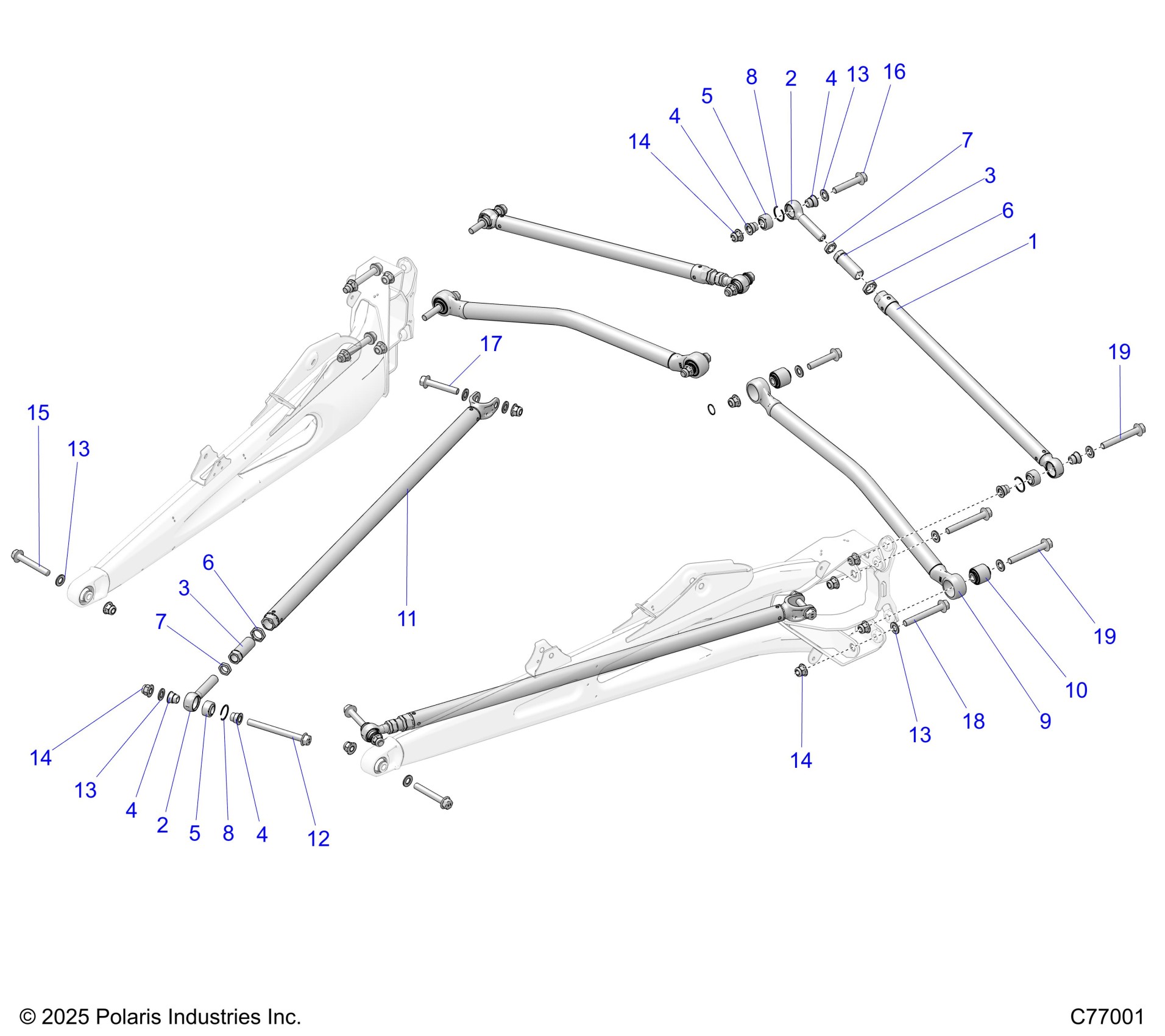

Polaris RZR PRO R RACE (R02) - Z25RRL2KAL SUSPENSION, REAR TRAILING ARM MOUNTING - Z25RRL2KAL (C77001) Diagram

#

Description
Price

1

ASM-UPPER RADIUS ROD M BLK [INCLUDES 1-8]

1545180-458

$519.99

2

ROD END M20X1.0 LH

5145117

$54.99

2

ROD END M20X1.0 LH

5145117

$54.99

3

INTERMEDIATE ADJUSTER

5145118

Unavailable

3

INTERMEDIATE ADJUSTER

5145118

Unavailable

4

BUSHING REDUCER TOP HAT

5145119

Unavailable

4

BUSHING REDUCER TOP HAT

5145119

Unavailable

4

BUSHING REDUCER TOP HAT

5145119

Unavailable

4

BUSHING REDUCER TOP HAT

5145119

Unavailable

5

BEARING SPHERICAL NMB ABWTE12

7083067

$199.99

5

BEARING SPHERICAL NMB ABWTE12

7083067

$199.99

6

NUT-HEX-M27X1.0 8 ZFB JAM-RH

7548124

Unavailable

6

NUT-HEX-M27X1.0 8 ZFB JAM-RH

7548124

Unavailable

7

NUT-HEX-M20X1.0 8 ZFB JAM-LH-

7548125

Unavailable

7

NUT-HEX-M20X1.0 8 ZFB JAM-LH-

7548125

Unavailable

8

CIRCLIP-PLAIN 35MM

7718454

$7.94

8

CIRCLIP-PLAIN 35MM

7718454

$7.94

9

ASM-RADIUS ROD,MBLK [INCLUDES 10]

1545039-458

$182.13

10

BEARING-SPHERICAL, M14,40X44

7082584

$35.71

11

ASM TOE LINK,M BLK [INCLUDES 2-8]

1545182-458

$501.89

12

SCR-HXFL-M14X2.0X145 10.9 ZFB

7521335-145

$7.14

13

WSHR-15X28X2.5 ZPB

7557195

$3.17

13

WSHR-15X28X2.5 ZPB

7557195

$3.17

13

WSHR-15X28X2.5 ZPB

7557195

$3.17

13

WSHR-15X28X2.5 ZPB

7557195

$3.17

14

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$3.17

14

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$3.17

14

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$3.17

15

SCR-HXFL-M14X2.0X95 10.9 ZFB

7521335-95

$6.35

16

SCR-HXFL-M14X2.0X75 10.9 ZFB

7521335-75

$6.46

17

SCR-HXFL-M14X2.0X80 10.9 ZFB

7521335-80

$3.97

18

SCR-HXFL-M14X2.0X110 10.9 ZFB

7521335-110

$2.84

19

SCR-HXFL-M14X2.0X105 10.9 ZFB

7521335-105

$5.56

19

SCR-HXFL-M14X2.0X105 10.9 ZFB

7521335-105

$5.56
