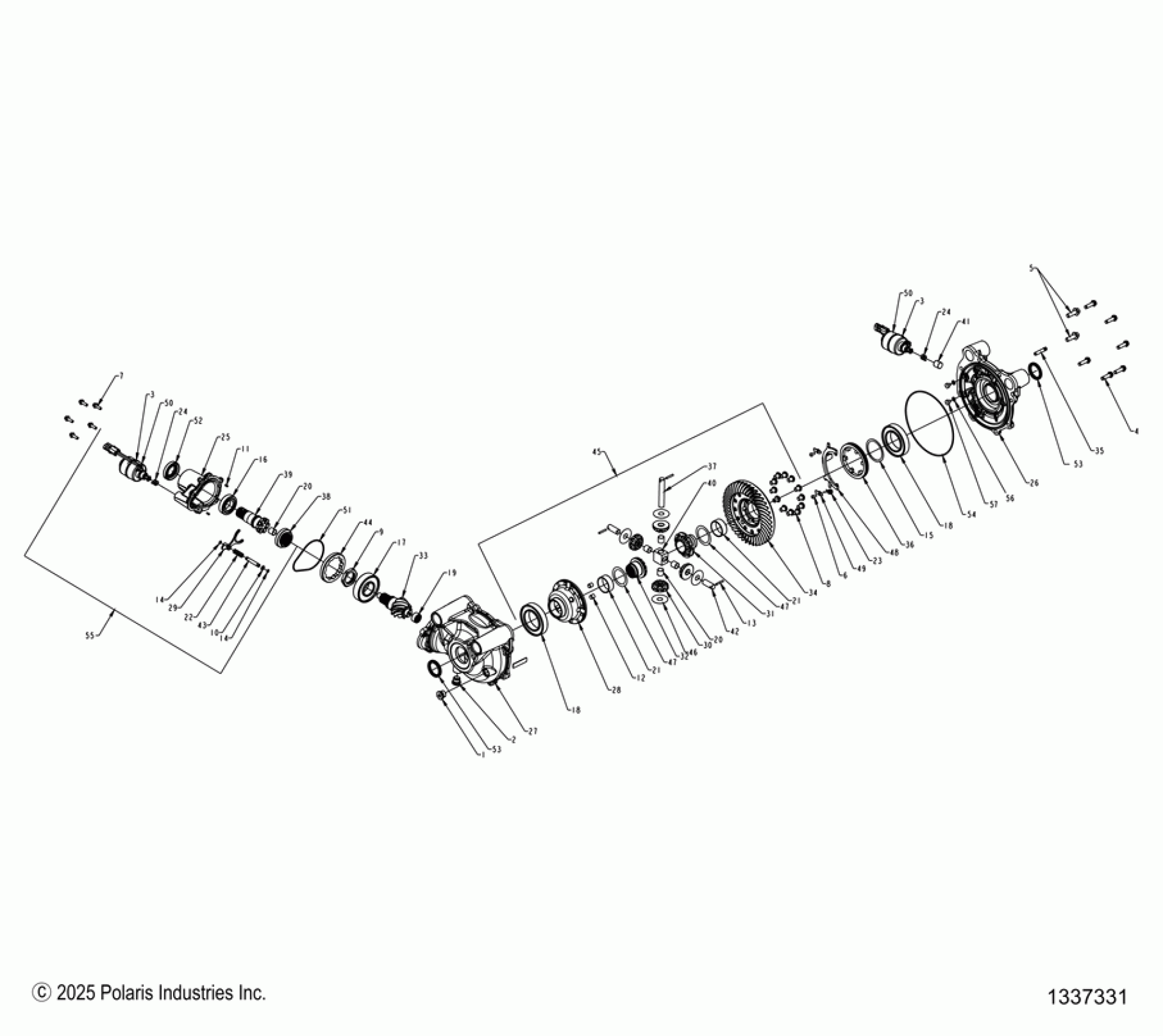

Polaris RZR PRO R RACE (R02) - Z25RRL2KAL DRIVE TRAIN, GEARCASE INTERNALS, FRONT - Z25RRL2KAL (1337331) Diagram

#

Description
Price

-

ASM-GEARCASE,FRONT,RM,8K [INCL. ALL]

1337331

Unavailable

1

PLUG, M18 X 1.5

3234755

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

Unavailable

3

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

Unavailable

3

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

Unavailable

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

Unavailable

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

3234634

Unavailable

6

SCREW-SOCK,BUTTON HD,M5X.8X1

3239227

Unavailable

7

SCREW, HEX FLANGE HEAD , M6 X 1 X 20

3239475

Unavailable

8

SCREW, 6-LOBE BUTTON HD M10 X 1.5 X 13

3239568

Unavailable

9

NUT, HEX PINION BEARING , M35 X 1.5-6H X 8.00

3239229

Unavailable

10

WASHER, 8.15 X 12.00 X 1.00

3239567

Unavailable

11

PIN, DOWEL, M4X8

3235715

Unavailable

12

PIN, DOWEL , 10MM X 14MM

3239230

Unavailable

13

PIN, DOWEL , .1562 X 1

3239325

Unavailable

14

RING, RETAINING EXT CG-31SJ

3239569

Unavailable

14

RING, RETAINING EXT CG-31SJ

3239569

Unavailable

15

SHIM, 66.30 X 55.50

3239232

Unavailable

16

BEARING, BALL , 6006 30 X 55 X 13

3239460

Unavailable

17

BEARING, BALL

3235099

Unavailable

18

BEARING, BALL , 55 X 90 X 18

3239233

Unavailable

18

BEARING, BALL , 55 X 90 X 18

3239233

Unavailable

19

BEARING, NEEDLE .5625 X .750 X .500

3239570

Unavailable

20

BEARING, PLAIN , 14 X 16 X 15

3239443

Unavailable

20

BEARING, PLAIN , 14 X 16 X 15

3239443

Unavailable

21

BEARING, PLAIN , 1.625 X 1.781 X .685

3239235

Unavailable

21

BEARING, PLAIN , 1.625 X 1.781 X .685

3239235

Unavailable

22

SPRING, COMPRESSION , 10.80 OD X 9.02 ID X 0.89 WIRE

3239461

Unavailable

23

SPRING, TORSION , RETURN

3239411

Unavailable

24

SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE

3239412

Unavailable

24

SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE

3239412

Unavailable

25

HOUSING, DISCONNECT MACH

3239571

Unavailable

26

COVER, FRONT DIFF MACH

3239572

Unavailable

27

CASE, FRONT MAIN MACH

3239573

Unavailable

28

CARRIER, DIFFERENTIAL MACH

3239574

Unavailable

29

FORK, DISCONNECT SHIFT

3239575

Unavailable

30

PINION, 10T BEVEL

3239438

Unavailable

31

GEAR, OUTPUT , 14T MACH

3239243

Unavailable

32

GEAR, OUTPUT , 14T MACH

3239244

Unavailable

33

PINION, 10T SPIRAL BEVEL

3239576

Unavailable

34

GEAR, RING 41T

3239577

Unavailable

35

TUBE, VENT , 1/4" HOSE

3239296

Unavailable

36

DOG, ENGAGEMENT

3239248

Unavailable

37

PIN, DIFFERENTIAL

3239249

Unavailable

38

COLLAR, SHIFT 25T

3239464

Unavailable

39

SHAFT, DISCONNECT 25T

3239465

Unavailable

40

COUPLER, PIN

3239489

Unavailable

41

CUP

3239415

Unavailable

42

PIN, DIFFERENTIAL

3239442

Unavailable

43

RAIL, SHIFT SHAFT

3239580

Unavailable

44

NUT, LOCK M85 X 2.0 LH

3239578

Unavailable

45

SUBASSEMBLY, DIFFERENTIAL 4.10 RATIO, 4 SPIDER

3239581

Unavailable

46

WASHER, THRUST , 14.25 X 43.25 X 0.38

3239253

Unavailable

47

WASHER, THRUST , 42.10 X 56.25 X 0.38

3239254

Unavailable

47

WASHER, THRUST , 42.10 X 56.25 X 0.38

3239254

Unavailable

48

CONTROL ARM, SHIFT , FRONT DIFF

3239417

Unavailable

49

STRAP, SHIFT FORK

3239582

Unavailable

50

SOLENOID

3235478

Unavailable

50

SOLENOID

3235478

Unavailable

51

O-RING, 2-154

3239583

Unavailable

52

SEAL, TRIPLE LIP , 1.181 X 2.047 X 0.394

3239468

Unavailable

53

SEAL, OIL, 37 X 48 X 6 TG

3239328

Unavailable

53

SEAL, OIL, 37 X 48 X 6 TG

3239328

Unavailable

54

O-RING, 2-168

3239584

Unavailable

54

O-RING, 2-168

3239584

Unavailable

55

SUBASSEMBLY, DISCONNECT TRITON 8K

3239657

Unavailable

56

SHIM .450 X .265

3233583

Unavailable

57

THRUST BUTTON

3233582

Unavailable
