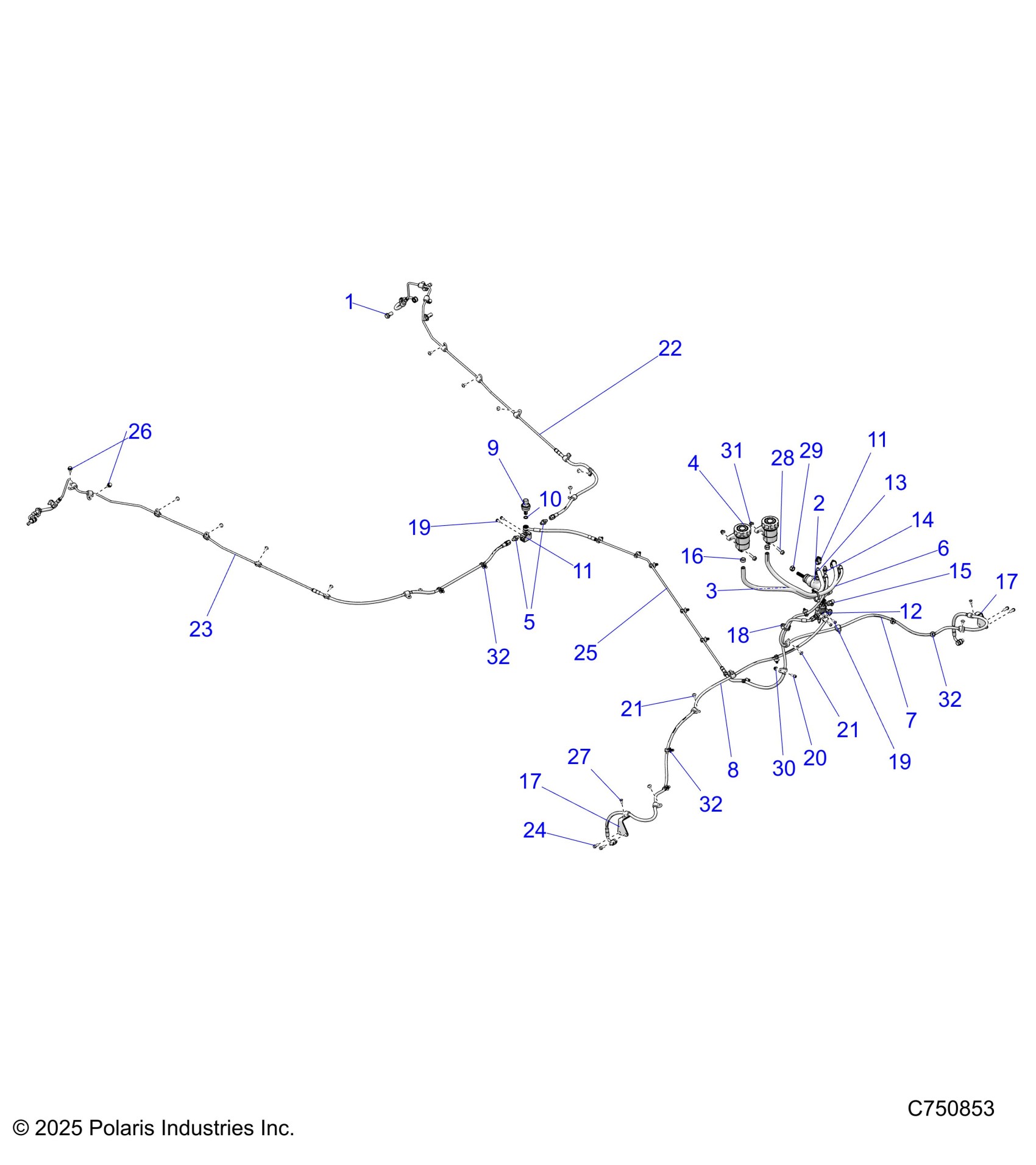

Polaris RZR PRO R RACE (R02) - Z25RRL2KAL BRAKES, BRAKE LINES AND MASTER CYLINDER - Z25RRL2KAL(C750853) Diagram

#

Description
Price

1

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

2

ASM-MASTER CYL,RACE

1914633

Unavailable

3

HOSE-RESEVOIR,BRAKE,450MM

1911267-450

Unavailable

4

ASM-RESERVOIR,BRAKE,FLS

1914158

$27.78

5

FITTING-3/8 BSPP TO AN-06

1914547

Unavailable

6

LINE-BRK,MCT,FRT,RACE

1914626

Unavailable

7

LINE-BRK,FL

1914686

Unavailable

8

LINE-BRK,FR

1914687

Unavailable

9

SENSOR P.TRAN-BRK,M10X1.25,SGL

4080159

$164.99

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.84

11

FITTING 90 DEG BARB TO AN-04

7055637

Unavailable

11

FITTING 90 DEG BARB TO AN-04

7055637

Unavailable

12

FIT CROSS BRK 3 WAY

7055643

Unavailable

13

FITTING-9/16-18 TO AN-04

7055667

Unavailable

14

FITTING-AN03 TO AN03

7055668

Unavailable

15

FTG-90 DEG 3/8 JIC M TO 3/8 FE

7055669

Unavailable

16

HOSE CLAMP, RED

7080003

$1.19

17

BRKT-HOSE,BRAKE,KNUCKLE,BLK

5272111-458

$48.56

17

BRKT-HOSE,BRAKE,KNUCKLE,BLK

5272111-458

$48.56

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

19

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$4.76

19

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$4.76

20

SCR-SH-M5X0.8X10 8.8 ZPB D204

7516610

$3.97

21

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.76

21

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.76

22

LINE,BRK,RL,RACE

1914728

$199.98

23

LINE,BRK,RR,RACE

1914729

$228.56

24

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.97

25

LINE-BRK,MCT,RACE

1914629

Unavailable

26

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

7518513

$4.76

27

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.19

28

SCR-HXFL-M6X1.0X25 10.9 ZFB

7521331-25

$1.59

29

NUT-3/8-24-2B-Z

7542401

$2.38

30

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.17

31

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

32

CLIP-FIR TREE,HEAT-STAB

7662429

$5.56

32

CLIP-FIR TREE,HEAT-STAB

7662429

$5.56

32

CLIP-FIR TREE,HEAT-STAB

7662429

$5.56
