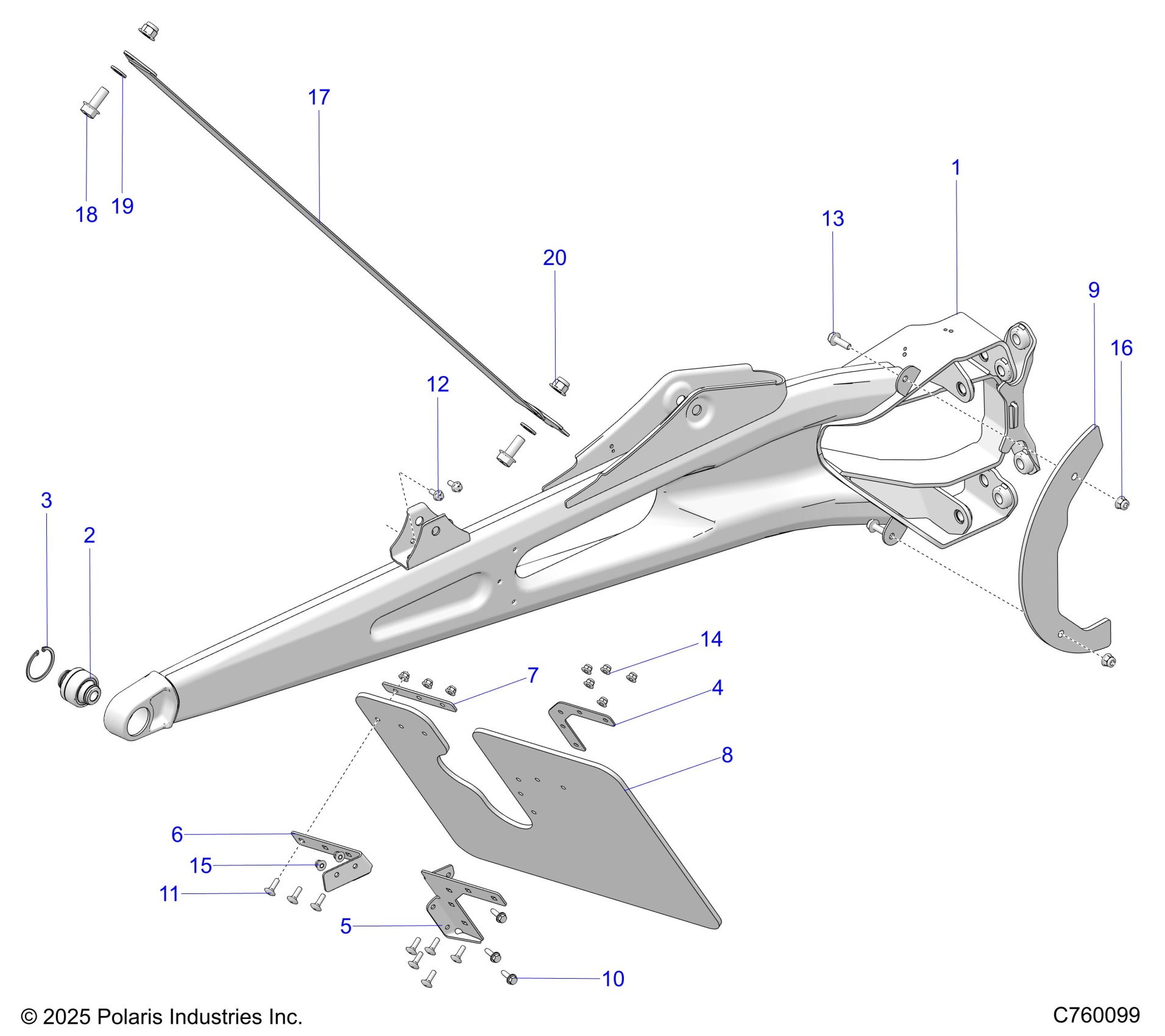

Polaris RZR PRO R RACE H.O. (R01) - Z26RRL2KAL SUSPENSION, REAR TRAILING ARMS - Z26RRL2KAL (C760099) Diagram

ASM-TRL ARM,BEARING,LH,RACE [INCLUDES 1-3]

1545546-458

Unavailable

ASM-TRL ARM,BEARING,RH,RACE [INCLUDES 1-3]

1545547-458

Unavailable

WELD-TRL ARM,RACE,LH,BLK

1031966-458

Unavailable

WELD-TRL ARM,RACE,RH,BLK

1031967-458

Unavailable

BEARING-SPHERICAL, M14,47X55

7082583

$23.99

RING-SNAP,DIN472,47X1.75MM

7710947

$3.99

BRKT-MOUNT, DEBRIS FLAP,BLK

5270915-458

$27.99

BRKT-OUT DEBRIS FLAP LH,MBLK

5274974-458

Unavailable

BRKT-OUT DEBRIS FLAP RH,MBLK

5274975-458

Unavailable

BRKT-INNER DEBRIS FLAP LH,MBLK

5274976-458

$26.39

BRKT-INNER DEBRIS FLAP RH,MBLK

5274977-458

$26.39

BRKT-DEBRIS FLAP BACKER,MBLK

5275393-458

Unavailable

FLAP-DEBRIS RACE

5418935

$63.99

SHIELD-DEBRIS REAR TA

5466858

$39.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

SCR-HXFL-M6X1.0X16 10.9 ZFB

7521331-16

$2.79

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

STRAP-LIMIT,R

7083119

Unavailable

SCR-HXFL-M12X1.75X30 10.9 ZFB

7521334-30

$2.79

WSHR-FLAT-M12X2.5 ZTB

7557236

$2.39

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.19
