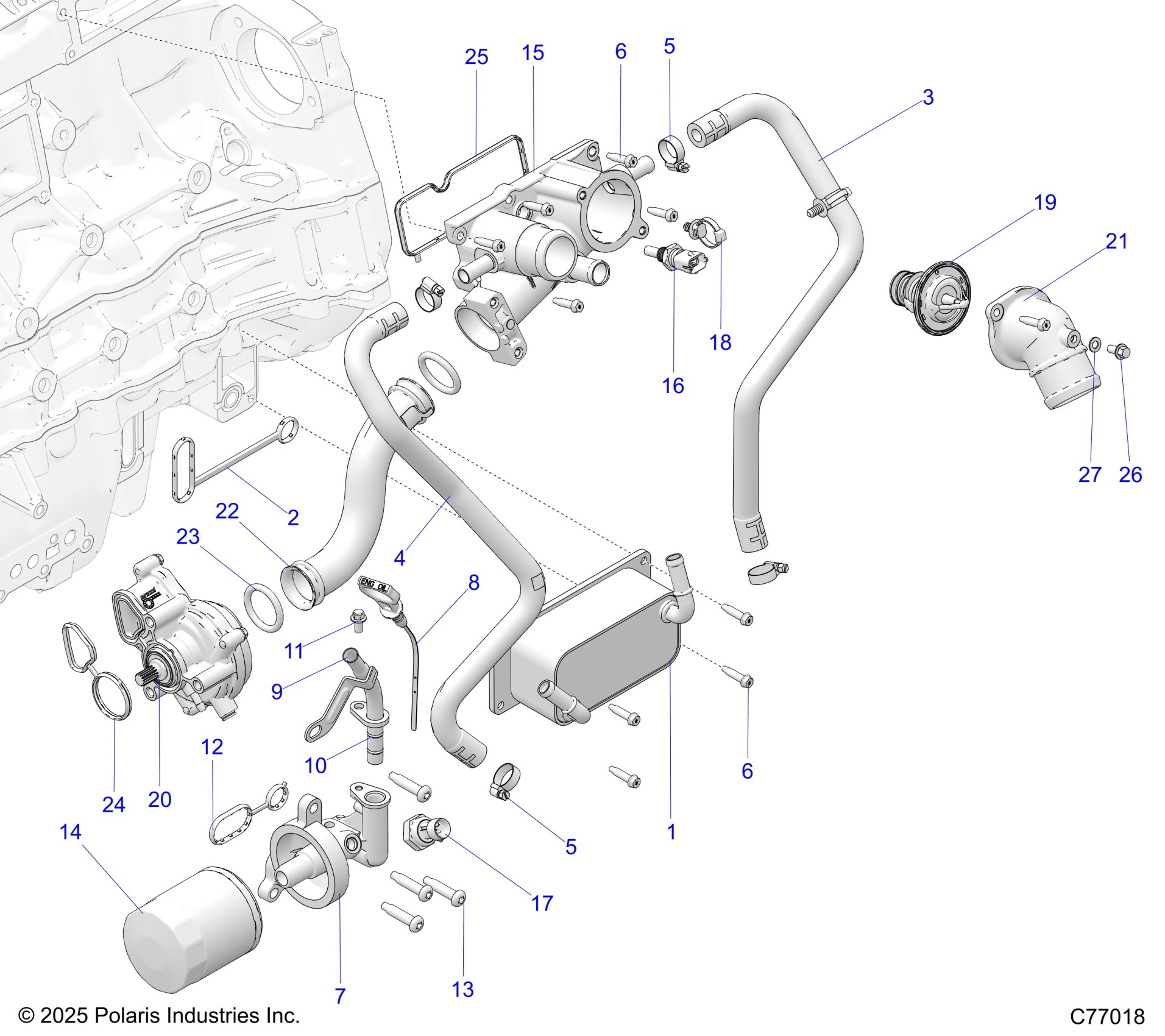

Polaris RZR PRO R RACE H.O. (R01) - Z26RRL2KAL ENGINE, OIL FILTER, OIL COOLER AND THERMASTAT - Z26RRL2KAL (C77018) Diagram

COOLER-OIL

2521776

$91.99

GASKET-OIL COOLER

5814676

$7.99

HOSE-OIL COOLER,RETURN

5417160

$35.99

HOSE-OIL COOLER,SUPPLY

5417161

$35.99

CLAMP-HOSE,SPRING .81 [TO 12/01/2025]

7081026

$7.99

CLAMP-HOSE(WORM DR)0.5-0.88 [FROM 12/01/2025]

-------

Unavailable

CLAMP-HOSE,SPRING .81 [TO 12/01/2025]

7081026

$7.99

CLAMP-HOSE(WORM DR)0.5-0.88 [FROM 12/01/2025]

-------

Unavailable

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

ADAPTER-FILTER,MACH

5144938

$27.99

DIPSTICK

3024020

$75.99

TUBE-DIPSTICK [INCLUDES 10]

3023415

$43.99

O-RING-.364X.504X.07,VITON

5416422

$3.19

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

SEAL-FILTER ADAPTER [TO 1/12/2026]

5814721

$7.99

SEAL-FILTER ADAPTER [FROM 1/12/2026]

5815858

Unavailable

SCR-BHCS-M8X1.25X30 DOG

7520705

$3.19

FILTER-OIL

2521728

$11.99

HOUSING-TSTAT

3024366

$83.99

SENSOR-THERMISTER

4010644

$87.13

SENSOR-OIL PRESSURE

4018558

$87.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

THERMOSTAT-78C

7052766

$55.99

ASM-PUMP,COOLANT,HIGHFLOW

3023613

$219.99

COVER, THERMOSTAT

3023629

$31.99

TUBE-TRANSFER

3024146

$51.99

O-RING

5815287

$23.99

GASKET, COOLANT PUMP

5814464

$7.19

GASKET, MODULE,COOLING

5814698

$10.39

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED

7520470

$4.79

WASHER-FLAT,6.15X12X1MM-AL

7555998

$1.49
