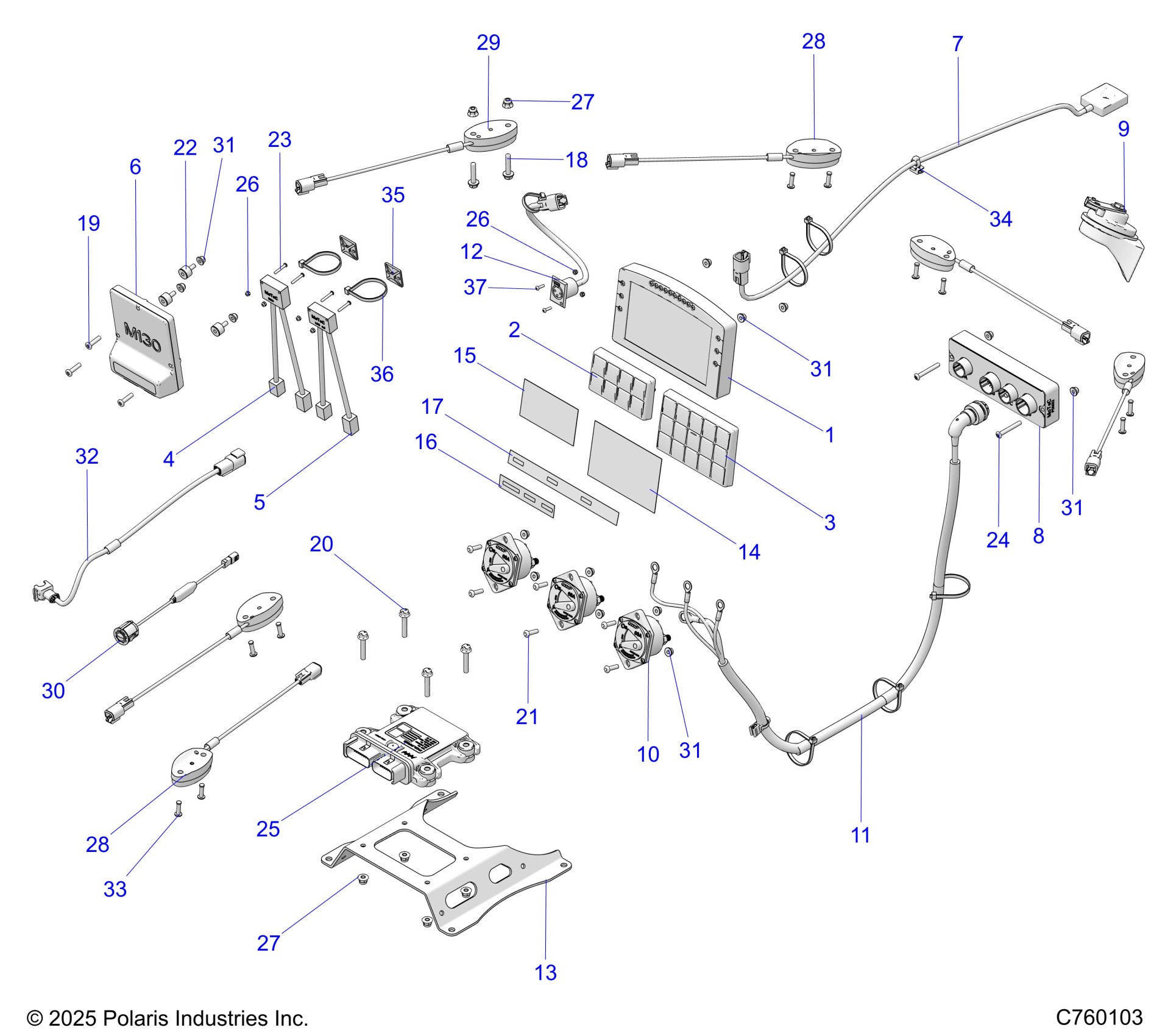

Polaris RZR PRO R RACE H.O. (R01) - Z26RRL2KAL ELECTRICAL, COMPONENTS - Z26RRL2KAL (C760103) Diagram

#

Description
Price

1

C127-PGM,RACE RZR

3287071

Unavailable

2

SWITCH PAD MOTEC 8 BUTTON

4082206

$580.79

3

SWITCH PAD MOTEC 15 BUTTON

4082207

$677.59

4

IGNITION MOD MOTEC

4082210

$483.99

5

LAMDA TO CAN SENSOR

4082211

$774.39

6

M130M ECU MOTEC [DEALER INSTALL REQUIRED][TO 9.30.2025]

4082208

$5,879.99

6

M130M ECU MOTEC,HO [DEALER INSTALL REQUIRED][FROM 9.30.2025]

4083917

Unavailable

7

GPS RECEIVER,MOTEC

4083395

$387.19

8

PDM32-PGM,RACE RZR

4083483

Unavailable

9

HORN-TRUMPET,LOW TONE,45DEG

4080943

$59.99

10

BREAKER-CIRCUIT 60 AMP

4082487-60

$159.99

11

CBL-PWR,MAIN,RACE

4082870

$1,143.99

12

PORT-AMPHENOL PDM

4083135

$131.99

13

BRKT SCM MNT,MBLK

5274525-458

$52.79

14

DECAL,15 BUTTON KEYPAD,RACE

7202766

$47.99

15

DECAL,8 BUTTON KEYPAD,RACE

7202767

$35.99

16

DECAL,FUSE SWITCH,RACE

7202769

$23.99

17

DECAL,FLASH PORT,RACE

7202770

$19.99

18

BOLT-M6X1.0X30,HXHD,FLG,BLK

7518530

$3.99

19

SCR-M5X0.8X20 8.8 TXPH ZOD

7518980

$3.19

20

SCR-HXFL-M6X1.0X35 10.9 ZFB

7521331-35

$1.49

21

SCR-TXBH-M5X0.8X20 10.9 ZTB

7527946-20

$2.39

22

ISOLATOR-MALE TO FEMALE,5MM

7528356

Unavailable

23

SCR-TXBH-M3X0.5X20 8.8ZTC

7528362

$2.39

24

SCR-TXBH-M5X0.8X40 8.8 ZFS

7528393

$2.39

25

SCM-PROGRAMMED,PRO R,RACE [TO 11/01/2025]

4083242

Unavailable

25

SCM-PROGRAMMED,PRO R,RACE [FROM 11/01/2025]

-------

Unavailable

26

NUT-HEX-M3X0.5 8 ZY3

7547500

$3.99

26

NUT-HEX-M3X0.5 8 ZY3

7547500

$3.99

27

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

27

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

28

K-ROCK,LT,WHITE

2890539

Unavailable

28

K-ROCK,LT,WHITE

2890539

Unavailable

29

K-ROCK,LT,RED

2890540

$143.99

30

CAM-IR ILLUMINATED,AMB SENSE

4081064

$187.99

31

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

31

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

31

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

31

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

32

HARN-THERMISTOR JUMPER

2418611

Unavailable

33

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

34

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

35

CLIP-PANDUIT MNT,ADHESIVE

7082523

$4.79

36

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

Unavailable

37

SCR-TXBH-M3X0.5X12 8.8ZTC

7528421

Unavailable
