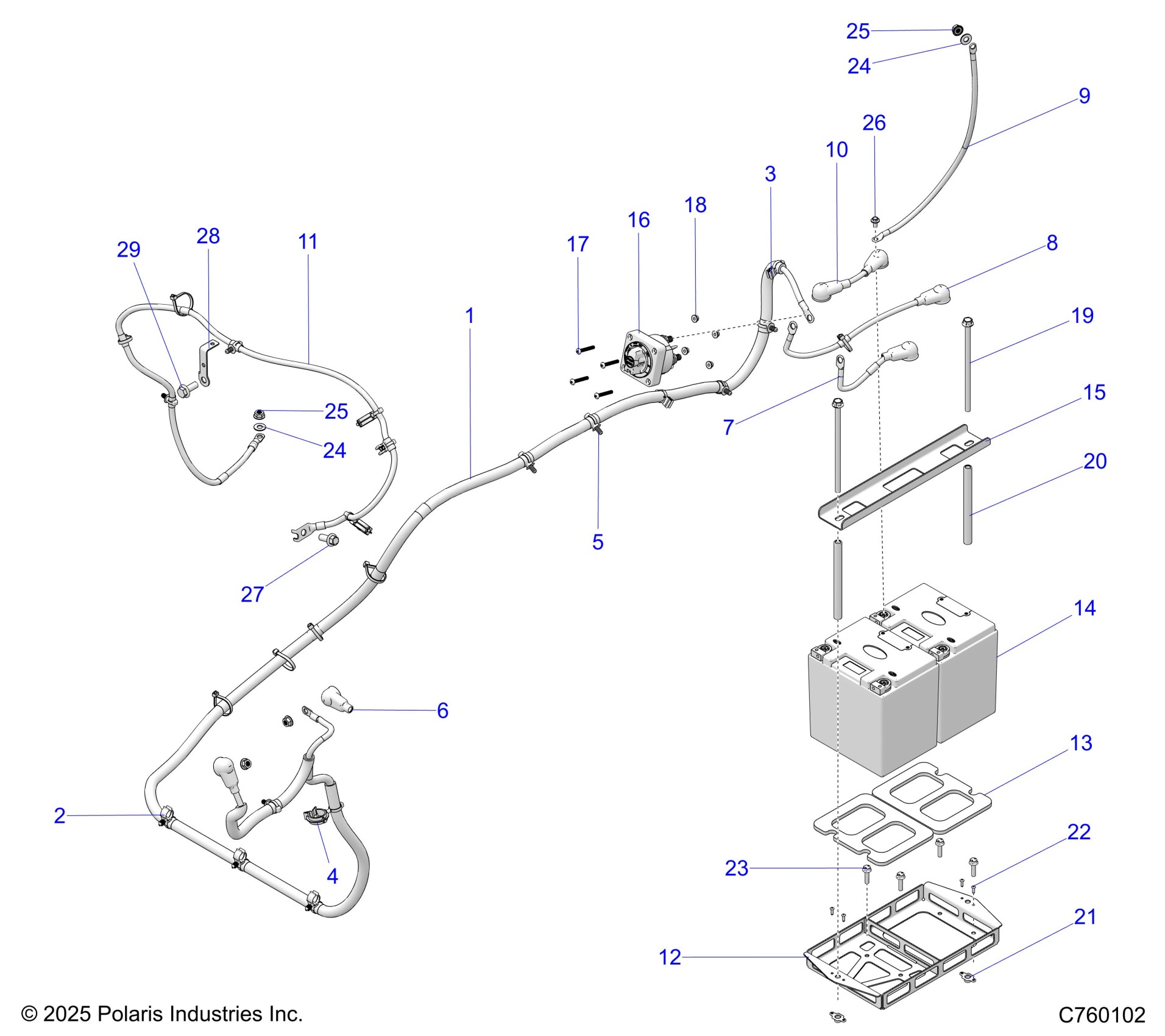

Polaris RZR PRO R RACE H.O. (R01) - Z26RRL2KAL ELECTRICAL, BATTERY AND CABLES - Z26RRL2KAL (C760102) Diagram

#

Description
Price

1

CBL-PWR,ALT,START,RACE [INCLUDES 2-6]

4083465

Unavailable

2

CLIP-XMAS,OMEGA, CABLE/11-15MM

7082750

$3.17

3

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

4

CLIP-OMEGA,CABLE/19-24.5MM DIA

7082408

$12.13

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

6

BOOT, BATTERY, RED

4011723

$8.08

7

CBL-BATT,POS1,RACE

4082872

Unavailable

8

CBL-BATT,POS2,RACE

4082873

Unavailable

9

CBL-BATT,GND1,RACE

4082874

Unavailable

10

CBL-BATT,GND2,RACE

4082875

Unavailable

11

CBL-BATT,GND,START

4083458

Unavailable

12

WELD-BATTERY TRAY BTM,BLK

1029983-458

Unavailable

13

SPACER-BATTERY TRAY,F

5466213

Unavailable

14

BATTERY-12 VOLT,LITH

4083259

Unavailable

15

BRKT-BATTERY TRAY TOP,MBLK

5274869-458

Unavailable

16

SWITCH-BATTERY SELECTOR

4082212

Unavailable

17

SCR-HXBH-M5X0.5X35 8.8 ZPB DRI

7527922

$9.52

18

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.17

19

SCR-HXFL-M8X1.25X170 10.9 ZY3

7521080

$6.99

20

BATTERY BOLT SPACER

5145835

Unavailable

21

NUT-ANCHOR-M8X1.25 SPC

7548160

Unavailable

22

RIVET-1/8X0.4 (.188-.250) AL

7662394

$1.19

23

SCR-HXFL-M6X1.0X25 10.9 ZFB

7521331-25

$1.59

24

WSH-.344,.750,.050,FLT,SS

7556716

$1.59

24

WSH-.344,.750,.050,FLT,SS

7556716

$1.59

25

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.56

25

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.56

26

Screw, Flange

7517653

$5.56

27

SCR-HXFL-M10X1.5X25 8.8 ZPC

7518908

$1.59

28

BRKT-MOUNT,CONNECTOR,ECOAT

5276269-329

Unavailable

29

SCR-HXFL-M10X1.5X25,DIN6921ZB

7519349

$5.56
