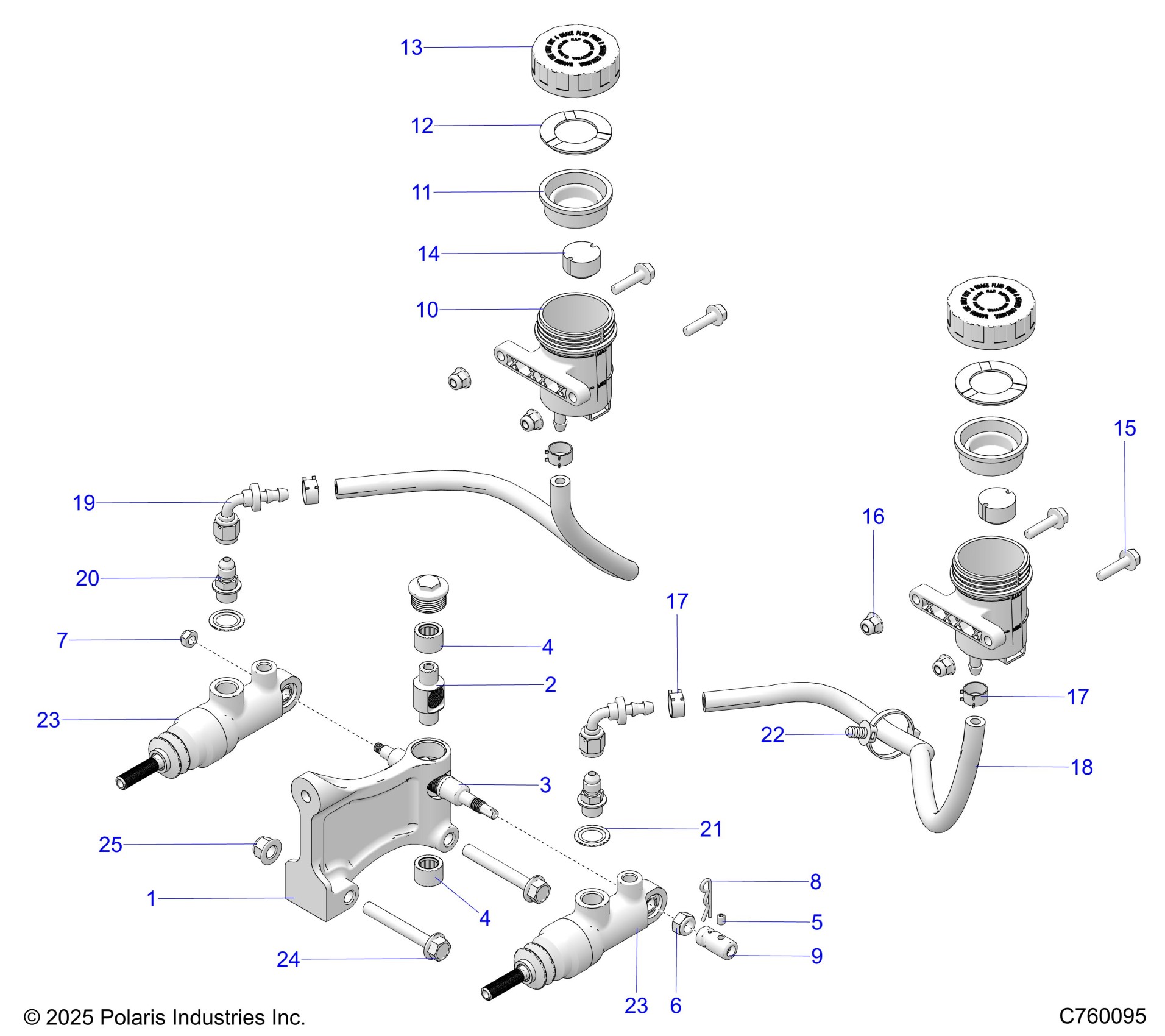

Polaris RZR PRO R RACE H.O. (R01) - Z26RRL2KAL BRAKES, MASTER CYLINDER & RESERVOIRS - Z26RRL2KAL (C760095) Diagram

ASM-MOUNT MASTER CYLINDER [INCLUDES 2-9]

1914680

Unavailable

TRUNION-BIAS BAR

5145609

Unavailable

SHAFT-BIAS BAR

5145610

Unavailable

BEARING-NEEDLE

7061334

Unavailable

BEARING-NEEDLE

7061334

Unavailable

SCR-HXSOC SET,M5X8X6

7520596

$2.38

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.19

NUT-HEX-M6X1.0 ZOD NYL

7547650

$3.97

PIN-HITCH, 3/32-Y

7661644

$2.38

ADAPTOR-BRAKE BIAS,SHORT

----

Unavailable

ASM-RESERVOIR,BRAKE,FLS [INCLUDES 10-14]

1914158

$27.78

CUP-FLS-RES,BRAKE

5418431

$3.97

DIAPHRAM-FLS-RES,BRAKE

5418432

$3.17

RING-FLS-RES,BRAKE

5418433

$3.97

CAP-FLS-RES,BRAKE

5418434

$3.17

FLOAT-SENSOR,RESERVOIR,BRK

5418577

$8.73

SCR-HXFL-M6X1.0X25 10.9 ZFB

7521331-25

$1.59

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

HOSE CLAMP, RED

7080003

$1.19

HOSE CLAMP, RED

7080003

$1.19

HOSE-RESEVOIR,BRAKE,450MM

1911267-450

Unavailable

FITTING 90 DEG BARB TO AN-04

7055637

Unavailable

FITTING-9/16-18 TO AN-04

7055667

Unavailable

SEAL-STAT-O-M14

----

Unavailable

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

ASM-MASTER CYL,RACE

1914633

Unavailable

ASM-MASTER CYL,RACE

1914633

Unavailable

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97
