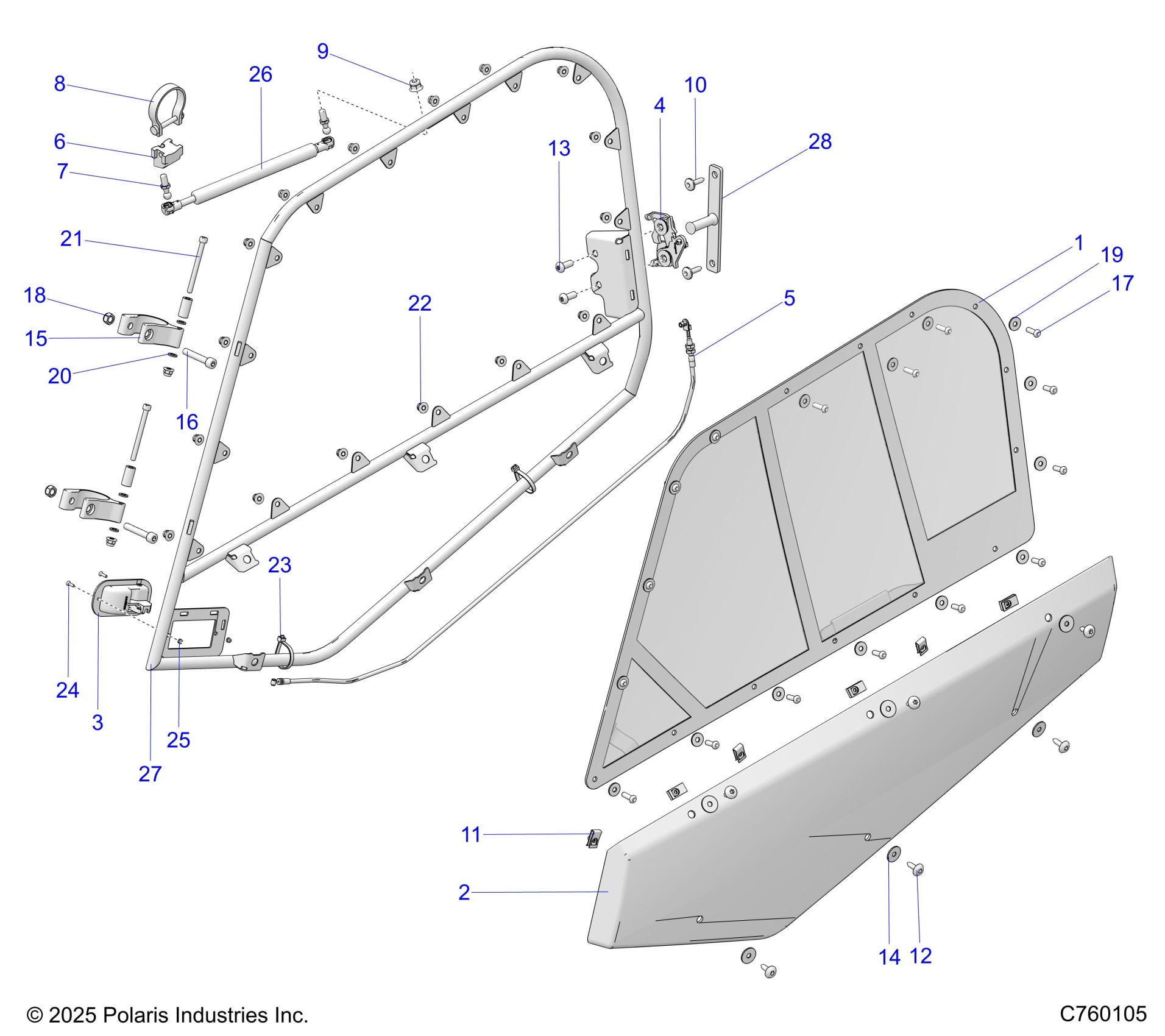

Polaris RZR PRO R RACE H.O. (R01) - Z26RRL2KAL BODY, DOORS - Z26RRL2KAL (C760105) Diagram

#

Description
Price

1

NET,UPPER,LH

2639937

Unavailable

1

NET,UPPER,RH

2639938

Unavailable

2

PANEL-DOOR,FRONT,CARBON,LH

5466182

Unavailable

2

PANEL-DOOR,FRONT,CARBON,RH

5466183

Unavailable

3

ASM-HANDLE-DOOR,REAR

7082387

$67.76

4

LATCH,LH

7083122

Unavailable

4

LATCH,RH

7083123

Unavailable

5

ASM-CABLE

7083124

Unavailable

6

MNT,NET,UPPER LOCK

5145476

Unavailable

7

BALL,END,M8X1.25

7081839

$24.27

8

CLAMP,2.0 DIA

7083126

Unavailable

9

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.38

10

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

11

CLIP-U SPEED NUT

7081305

$1.98

12

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.17

13

SCREW-TXBH-M8X1.25X20 TX W/PATCH

7519648

$3.97

14

WASHER-NYLON .260 IDX.880 OD

7555798

$0.79

15

CLAMP,DOOR

7083151

Unavailable

16

SCREW-SH-M8X1.25X45 10.9 ZPB

7520920

$3.17

17

SCR-TXBH-M6X1.0X20 10.9 ZTB

7527947-20

$0.79

18

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.19

19

WSHR-FLAT-M6X1.6 LARGE ZTB

7558714

$0.79

20

WSHR-6.4X12X1.6 BRS

7558833

Unavailable

21

SCR-M6X1.0X70MM SOC/CAP-ZINC

7521340

$5.56

22

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

23

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

24

SCR-TXFH-M3X0.5X12 8.8 ZPB

7520905

$4.99

25

NUT-HEX-M3X0.5 8 ZY3

7547500

$3.97

26

SHOCK-GAS

7046313

Unavailable

27

WELD-DOOR FRAME,LH,MBLK

1029321-458

Unavailable

27

WELD-DOOR FRAME,RH,MBLK

1029322-458

Unavailable

28

WELD-STRIKER,MBLK

1029320-458

Unavailable
