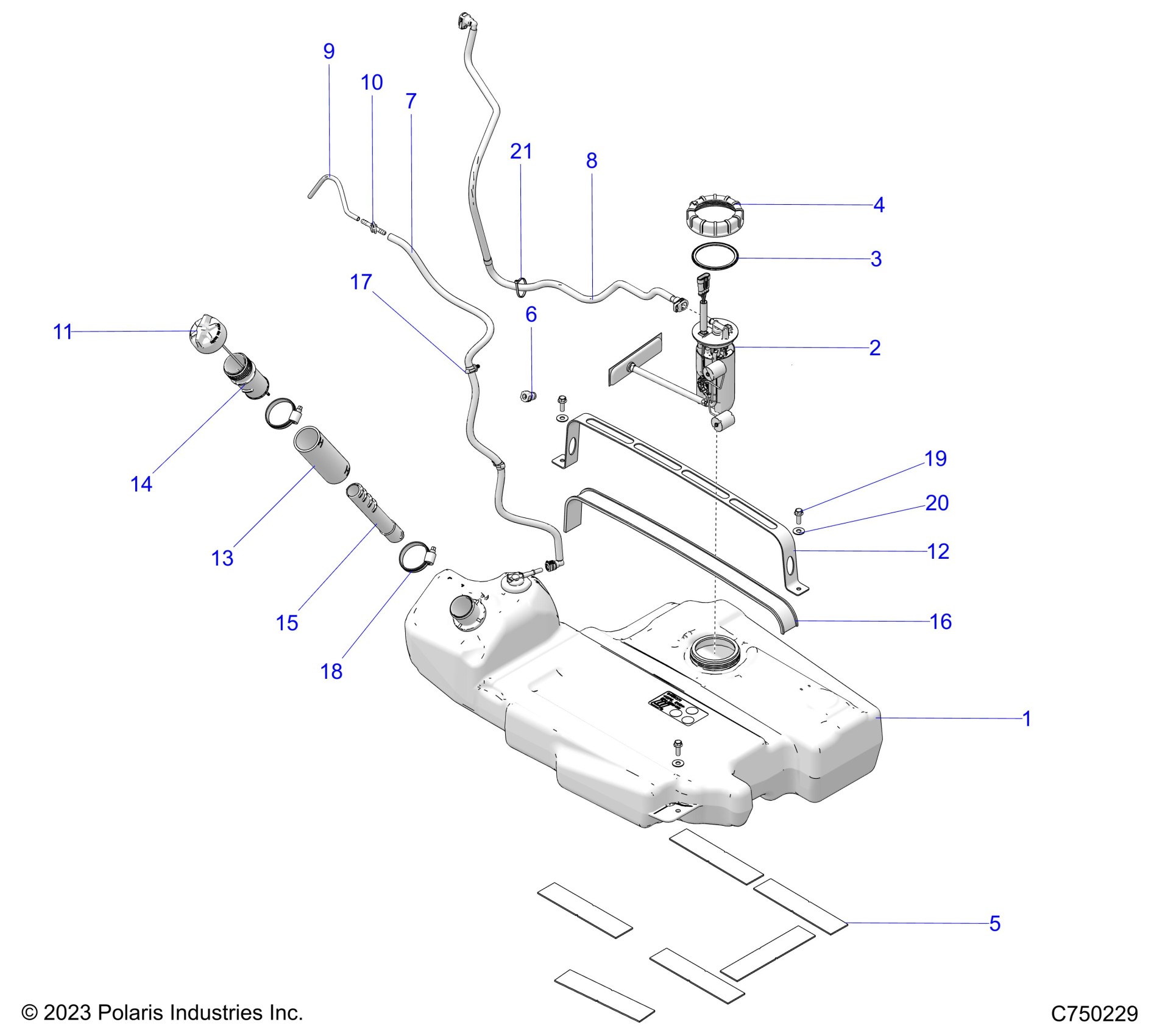

Polaris RZR PRO R FACTORY ARMORED LE ULTIMATE (R02) - Z25RPP2KAE/BE FUEL SYSTEM, STD. - Z25RPP2KAE/BE (C750229) Diagram

ASM-FUEL TANK,RZR [INCL. 2-5]

2637685

$812.61

K-FUEL PUMP,PRO R [INCL. 3 & 4]

2211789

$448.79

GASKET-PFA,RIBBED

5413451

$11.99

NUT-MASON JAR

5437138

$35.99

PAD-TANK,MOUNT

5814781

Unavailable

CAP-EVAP,THROTTLE BODY

2521948

$12.79

ASM-LINE,VENT TO CHASSIS

2522304

$79.99

ASM-FUEL LINE,G4

2522359

$139.99

ASM-LINE,VENT TERM [INCL. 10]

2522401

$31.99

FITTING-VENT LINE,35

5457446

$8.79

CAP-GAS TANK,TETHER

2522651

$31.99

BRKT-STRAP,FUEL TANK,ECOAT

5267867-329

$52.79

HOSE, FUEL FILL

5414709

$55.99

NECK-FUEL FILL,OUTER

5455329

$23.36

TUBE-FUEL FILL,INNER [TO 1/1/2024]

5465445

$12.79

TUBE-FUEL FILL,INNER [FROM 1/1/2024]

5466555

$13.59

PAD-STRAP,RUBBER

5522318

$7.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLAMP-HOSE,25-77 DIA,PLASTIC

7083059

$6.15

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

WASHER-.390X.940X.060,FL-Y

7555976

$3.99

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
