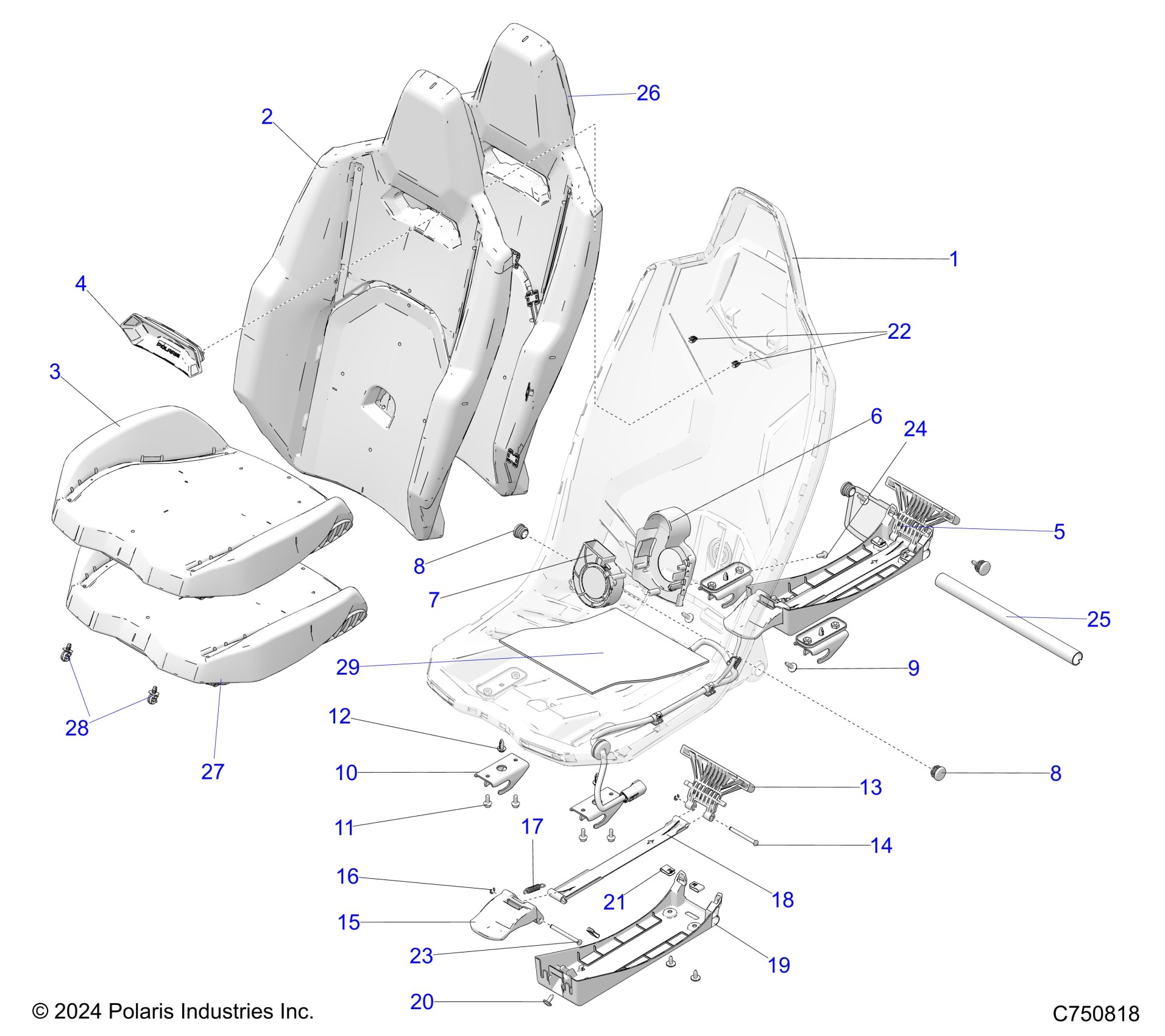

Polaris RZR PRO R FACTORY ARMORED LE ULTIMATE (R02) - Z25RPP2KAE/BE BODY, SEAT ASM. - Z25RPP2KAE/BE (C750818) Diagram

#

Description
Price

1

SEAT-SHELL,ROUTERED

5465064

$163.99

2

ASM-COVER-SEAT BACK,HVENT,OR B

2693209

$119.99

3

ASM-COVER-SEAT BTM,HVENT,OR B

2693401

$83.99

4

BEZEL-SEAT COVER,BLACK

5465755-070

$19.99

5

SCREEN-SEAT,H/V

5458643

$8.79

6

MOUNT-FAN,SEAT,BLK

5457836-070

$26.39

7

FAN-SEAT

2415452

$119.99

8

PLUG-END CAP,.88 DIA,RIBBED

5432831

$5.59

8

PLUG-END CAP,.88 DIA,RIBBED

5432831

$5.59

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

10

HOOK-SEAT BASE,FRONT,BLK

5466137-070

$7.99

11

SCR-HXFL-M6X1.0X16 10.9 ZFB

7521331-16

$2.79

12

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

13

RELEASE-SEAT

5459947

$23.99

14

PIN-RELEASE,SEAT

7662361

$14.95

15

LEVER-RELEASE,SEAT

5459945

$23.99

16

E-CLIP-M5,SS,0600101

7710568

$3.19

17

SPRING-RELEASE,SEAT

7045065

$10.55

18

LINK-RELEASE,SEAT

5459946

$39.99

19

COVER-RELEASE,SEAT

5454899

$35.99

20

SCR-M6X1X16 TR/TX-M

7518936

$3.99

21

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

22

CLIP-TRIM, PLASTIC, WHITE

5456313

$1.59

23

PIN-LINK,RELEASE,SEAT

7662362

$26.39

24

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

25

TUBE-SEAT SHELL

5346358

$23.99

26

ASM-SEAT,BUN,BACK [INCLS. BUN]

2639660

$67.99

26

BUN-SEAT BACK,VENT

5815569

Unavailable

27

ASM-SEAT,BUN,BOTTOM [INCLS. BUN]

2639641

$35.99

27

BUN-SEAT,BOTTOM

5815568

Unavailable

28

CLIP-C,FIR TREE,6-7.6MM,06.6MM [TO 6/5/2024]

7083115

$1.59

29

MAT-HEATER,SEAT,LWR

4082080

$327.99
