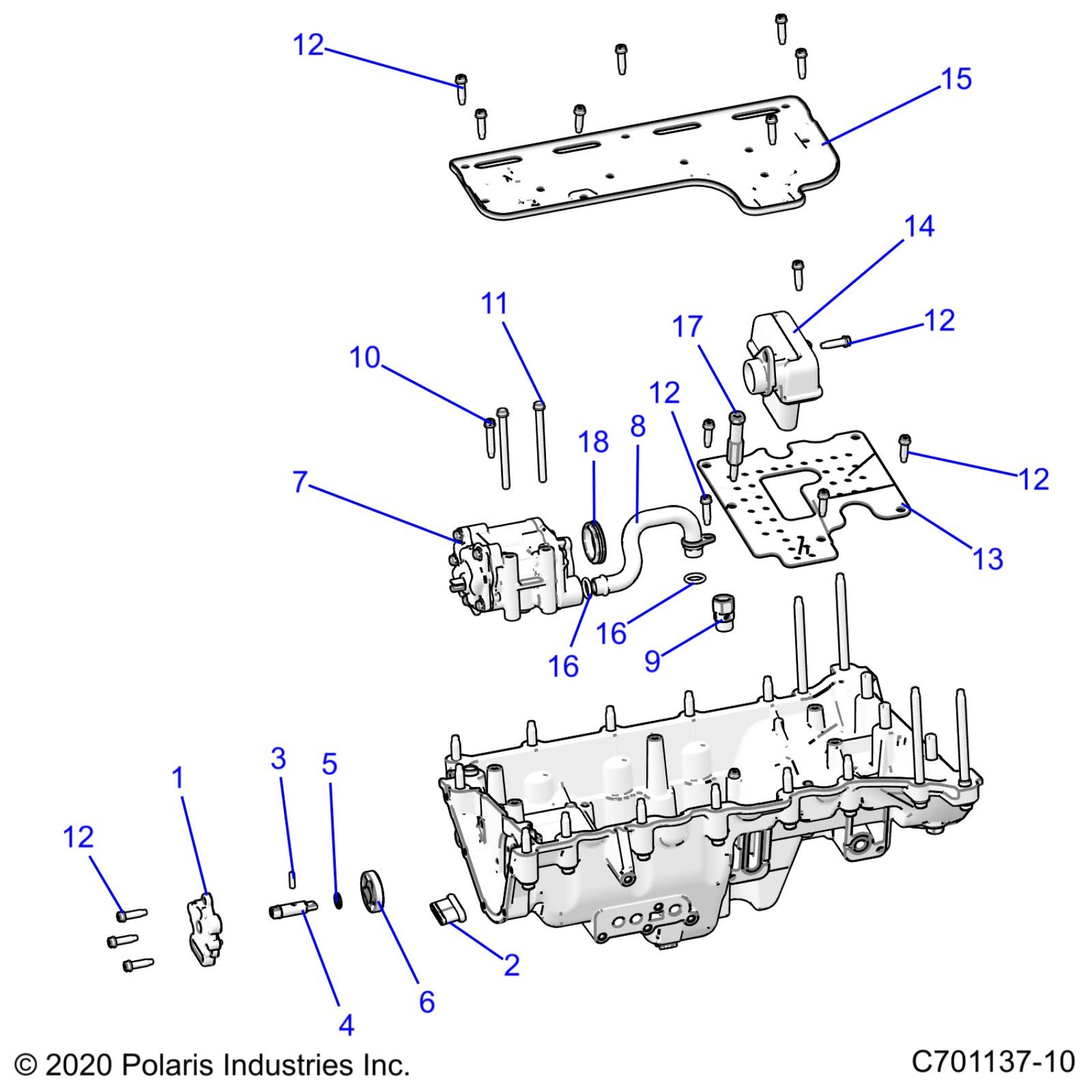

Polaris RZR PRO R 4 ULTIMATE TLD (R05) - Z23RMU2KAN/BN ENGINE, OIL PUMP AND RELATED - Z23RMU2KAN/BN (C701137-10) Diagram

#

Description
Price

1

PLATE-SCAVENGE PUMP MACH

5141741

$12.79

2

SCREEN-SCAVENGE PUMP INLET

2521902

$51.99

3

PIN-SOLID,M4X15.8

3022308

$3.99

4

SHAFT-SCAVENGE PUMP

2522438

$27.99

5

WASHER-11.2X15.0X1.0

7556570

$3.99

6

ASM-GEROTOR

1204293

$55.99

7

ASM-PUMP,OIL

2521774

$155.99

8

TUBE-OIL COOLER

2521903

$51.99

9

ASM-REGULATOR VALVE,85 PSI

2520672

$43.99

10

SCR-HXFL-M6X1.0X30 8.8 DOG

7520497

$3.19

11

SCREW-HXFLG,M6X1.0X80

7520115

$7.19

12

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

12

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

12

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

12

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

12

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.19

13

PLATE-OIL BAFFLE

5267748

$23.99

14

PICKUP-OIL

2522047

$39.99

15

PLATE-WINDAGE

5264963

$51.99

16

O-RING,.612X.818X.103

5413837

$4.84

16

O-RING,.612X.818X.103

5413837

$4.84

17

STANDOFF-WINDAGE PLATE [TO 8/23/2022]

5142643

Unavailable

17

STANDOFF-WINDAGE PLATE [FROM 8/23/2022]

5144751

$171.99

18

SEAL-OIL PICKUP

3610276

$10.71
