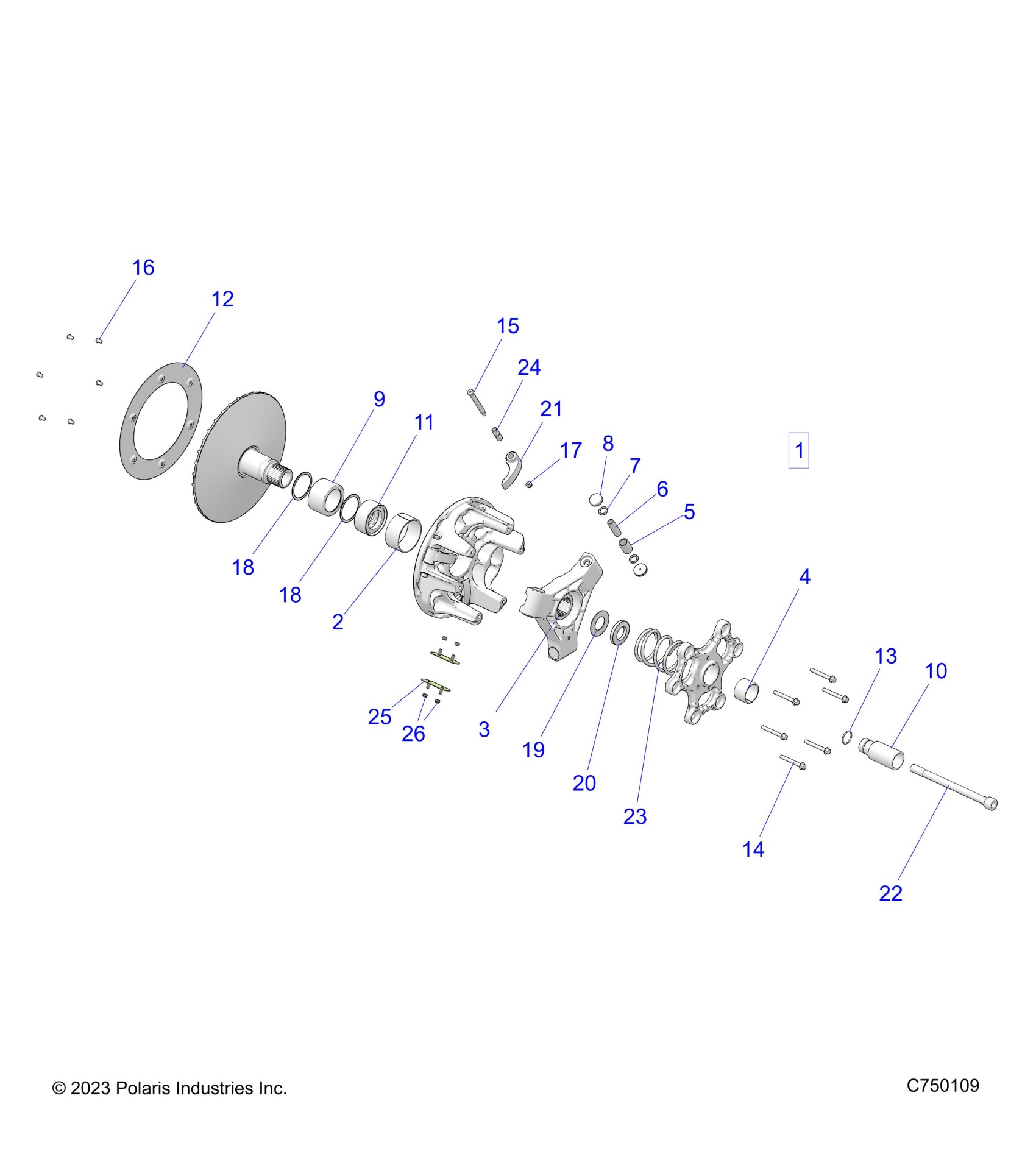

Polaris RZR PRO R 4 ULTIMATE TLD (R05) - Z23RMU2KAN/BN DRIVE TRAIN, PRIMARY CLUTCH - Z23RMU2KAN/BN (C750109) Diagram

#

Description
Price

1

ASM-DRIVE CLUTCH,RZR,G4 [INCL. 1-21,23-26]

1327340

$695.08

1

ASM-DRIVE CLUTCH,BASIC

1327341

$628.69

2

BUSHING-DU,60X65X30

3515116

$19.99

3

ASM-SPIDER,36T,89.5,24 BUTTON

1323584

$231.99

4

BUSHING-MU,35X39X25

3515181

$5.59

5

ASM-SPIDER ROLLR,12X17X25,DP11

1323587

$27.99

6

PIN-SPIDER,8X12X40

5142278

$5.59

7

WASHER-12X17X1.4,SP-21

5455244

$3.99

8

BUTTON-CLUTCH,24X5.25,SCP

5456312

$7.99

9

BEARING-NEEDLE,45X60X35,FKM

3515117

$51.99

10

POST-CLUTCH,OUTER

5142275

$27.99

11

SPACER-CLUTCH,60MM

5142338

$35.99

12

PLATE-WINDAGE,DRIVE

5267245

$27.99

13

O-RING-020 0.875X0.0625

5416424

$4.66

14

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.99

15

BOLT-SHOULDER,8X65,10-24

7527984

$6.39

16

SCR-TXBH-M5X0.8X8 SPC TRILOBE

7521023

$3.19

17

NUT-10-24-FLEX LOC-Z

7541906

$3.19

18

WSHR-45.5X54X0.8,SP-21

7557138

$4.39

18

WSHR-45.5X54X0.8,SP-21

7557138

$4.39

19

WSHR-26.5X49.0X1.21 ZY3

7557139

$4.79

20

WSHR-SPR,26.5X45.7X6.86,P&O

7557140

$7.03

21

ASM-WEIGHT-SHIFT 38-117

1327358

$27.99

22

SCR-HXFL,M14X1.5X180 12.9 SPC

7520950

$10.55

23

SPRING-CLUTCH,SP

7045118

$31.99

24

BUSHING-WEIGHT,8X10X30,MU

5456708

$3.19

25

ASM-CLUTCH WEAR

1327285

$7.99

26

NUT-M5X.8,HX NYL-Y

7546601

$1.49
