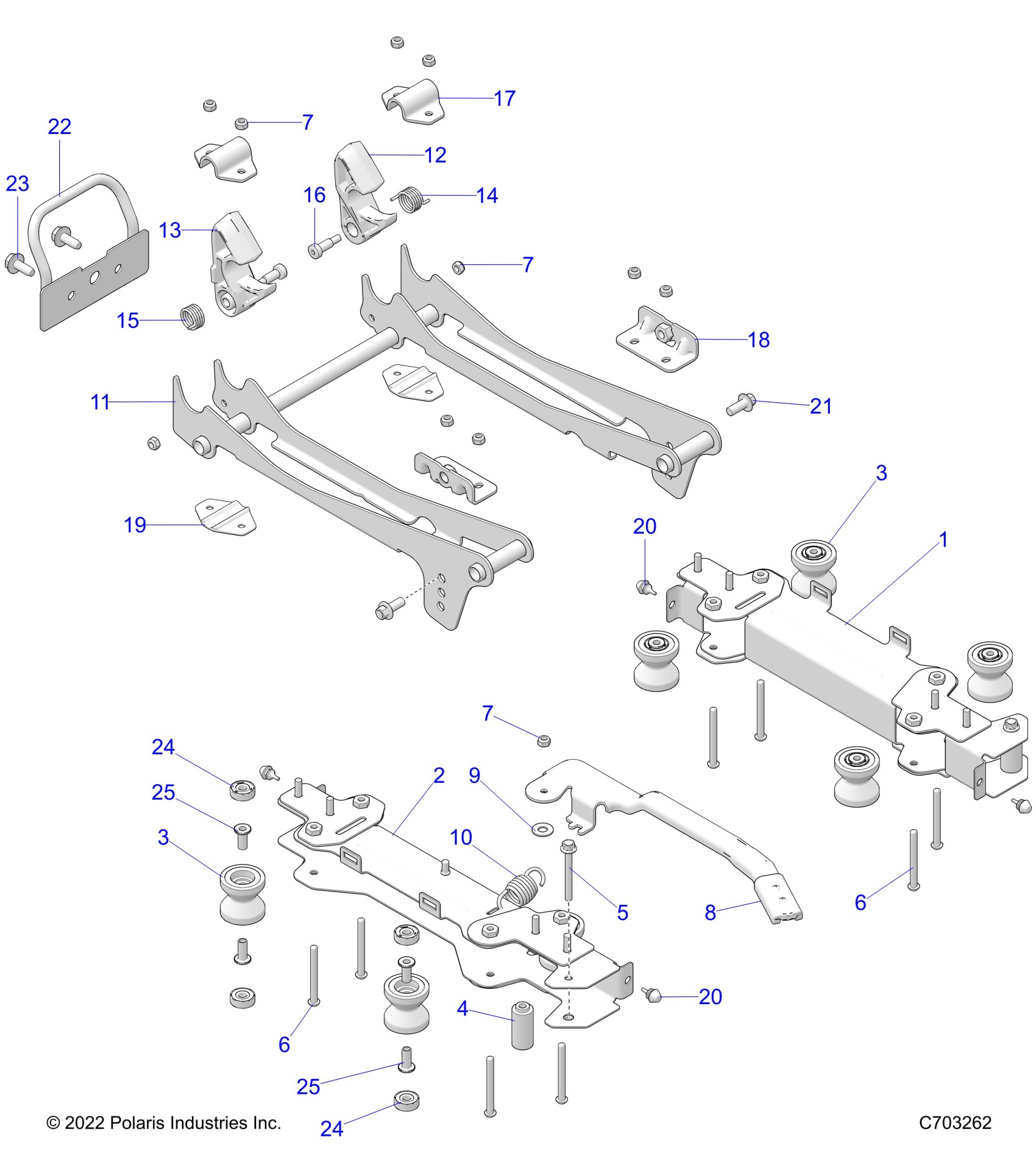

Polaris RZR PRO R 4 ULTIMATE TLD (R05) - Z23RMU2KAN/BN BODY, SEAT MOUNTING, FRONT - Z23RMU2KAN/BN (C703262) Diagram

#

Description
Price

1

ASM-FRAME,SEAT SLIDER,LH,BLK [INCL. 3-6]

2638272

$150.47

2

ASM-FRAME,SEAT SLIDER,RH,BLK [INCL. 3-10]

2638271

$150.47

3

ASM-V ROLLER,BEARING

2638213

$19.99

3

ASM-V ROLLER,BEARING

2638213

$19.99

4

SLIDER-SPACER

5142332

$10.39

5

SCR-HXFL-M6X1.0X55 8.8 ZOD

7519171

$5.59

6

SCR-TXTH-M6X1.0X60 10.9 ZY3

7527829

$3.99

6

SCR-TXTH-M6X1.0X60 10.9 ZY3

7527829

$3.99

7

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

7

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

7

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

8

BRKT-SEAT SLIDER LEVER

5267598

$31.99

9

WASHER-PLASTIC

5455866

$3.99

10

SPRING-SEAT SLIDER

7045274

$7.19

11

ASM-RCVR,SEAT,SLIDE/TILT [INCL. 7,11-16]

2637649

$79.99

12

LATCH-HOOK,LH

5456315

$9.59

13

LATCH-HOOK,RH

5456316

$9.59

14

SPRING, LATCH, LH

7043989

$13.75

15

SPRING, LATCH, RH

7043990

$9.70

16

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

17

BRKT-HINGE,SEAT,UPR,BLK

5265746-329

$26.39

18

BRKT-MOUNT,TILT ASM,BLK

5265748-329

$21.99

19

BUSHING-HINGE,SEAT,LWR

5454905

$3.19

20

BUMPER-GROMMET,1/4"

5412465

$1.59

20

BUMPER-GROMMET,1/4"

5412465

$1.59

21

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

22

WELD-SUPPORT,SEAT BASE,BLK

1024846-458

$43.99

23

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

24

BEARING-V ROLLER

3515187

$3.99

24

BEARING-V ROLLER

3515187

$3.99

25

BUSHING-SHOULDER,V ROLLER

5143866

$11.19

25

BUSHING-SHOULDER,V ROLLER

5143866

$11.19
