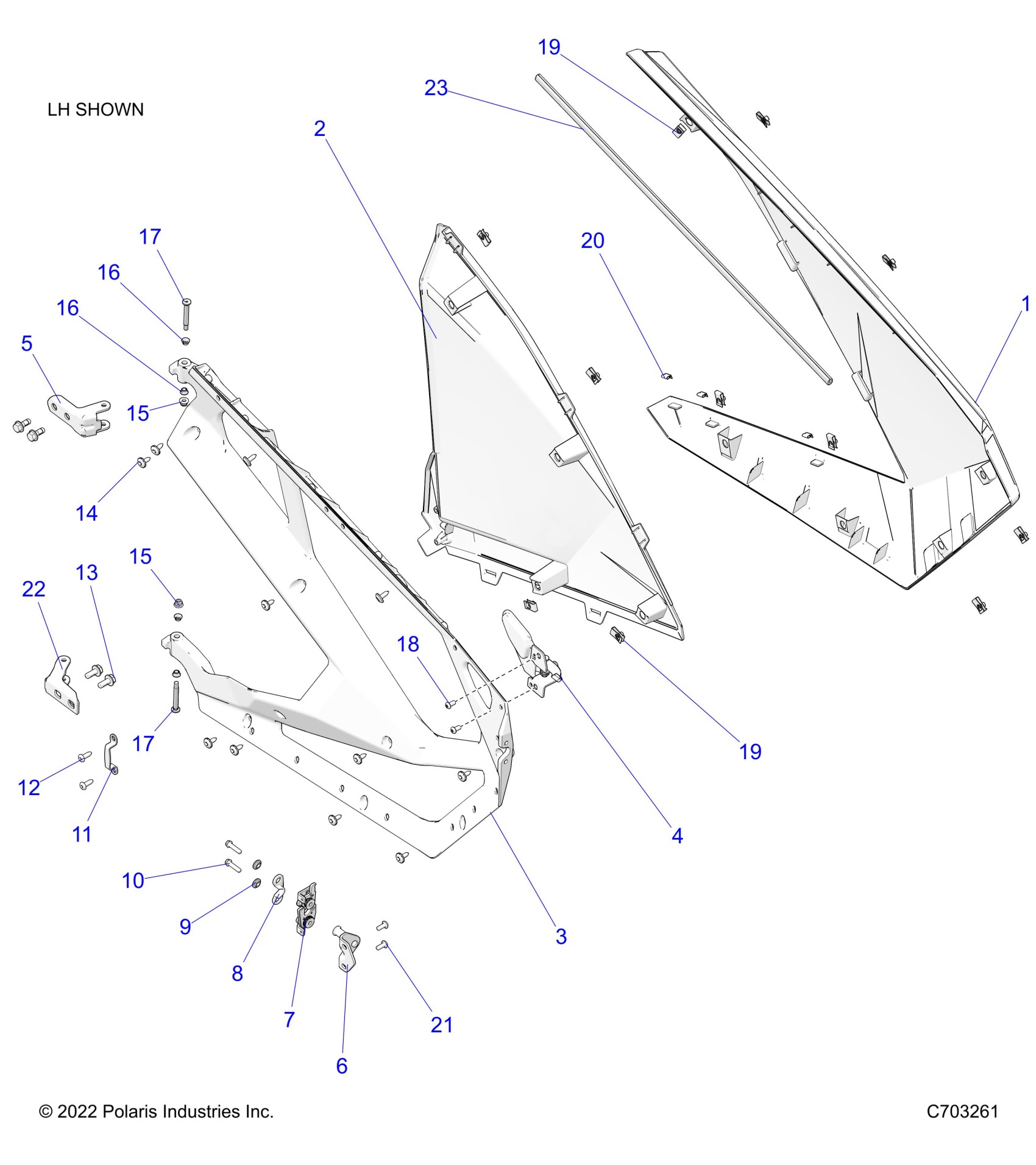

Polaris RZR PRO R 4 ULTIMATE TLD (R05) - Z23RMU2KAN/BN BODY, DOORS, FRONT - Z23RMU2KAN/BN (C703261) Diagram

#

Description
Price

1

PNL-DOOR,FRT,PNT,LH,ELEC BLUE

5455960-696

Unavailable

1

PANL-DOOR,FRT,PNT,RH,ELEC BLUE

5455961-696

Unavailable

2

PNL-DOOR,FR,RR,PNT,LH,ELEC BLU

5456076-696

Unavailable

2

PNL-DOOR,FR,RR,PNT,RH,ELEC BLU

5456077-696

Unavailable

3

CASTING-DOOR FRAME,LH,BLK

5634424-458

$327.99

3

CASTING-DOOR FRAME,RH,BLK

5634425-458

$291.99

4

ASM-ACTUATOR,LATCH,LH

2637402

$39.99

4

ASM-ACTUATOR,LATCH,RH

2637403

$39.99

5

BRKT-DOOR HINGE

5267526

$31.99

6

WELD-STRIKER

1026523

$15.83

7

ASM-LATCH,DOOR,LH [TO 10/05/2023]

2637039

$31.99

7

ASM-LATCH,DOOR,LH [FROM 10/05/2023]

2639731

$27.99

7

ASM-LATCH,DOOR,RH [TO 10/05/2023]

2637040

$31.99

7

ASM-LATCH,DOOR,RH [FROM 10/05/2023]

2639732

$27.99

8

BUMPER-DOOR

5417528

Unavailable

9

SLEEVE-SHLD,15.5OD,10 OD,6.5ID

5140211

$3.99

10

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

11

BRKT-TRIM,DOOR

5267829

$8.79

12

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

13

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

14

SCR-M6X1X16 TR/TX-M

7518936

Unavailable

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

16

BUSHING-DOOR PIVOT

5266311

$3.19

16

BUSHING-DOOR PIVOT

5266311

$3.19

17

SCR-TXWH-M6X1.0X54 10.9 ZTB SP

7527850

$3.19

17

SCR-TXWH-M6X1.0X54 10.9 ZTB SP

7527850

$3.19

18

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

19

CLIP-U SPEED NUT

7081305

Unavailable

19

CLIP-U SPEED NUT

7081305

Unavailable

20

FASTENER-U TYPE CLIP

7670040

$3.99

21

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

22

BRKT-DOOR HINGE,LOWER,MP

5267677

$11.99

23

TRIM-DOOR

5417931

$31.99
