Description

Price

1

HARNESS-CHASSIS,ULT,PROR,MP [INCL. 2-28,36-39]

2416686

$1,899.99

2

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$33.32

3

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

4

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

5

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

6

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

7

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

8

LABEL-FUSE BOX

7197503

Unavailable

9

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

10

RESISTOR-24.9KOHM

2415215

$9.70

11

RESISTOR-4.75KOHM

2415214

$9.70

12

RESISTOR-1.6KOHM

2415213

$9.70

13

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

14

FUSE-15AMP,MINI BLADE

4010859

$8.08

15

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

16

FUSE-IGNITION,10 AMP

2434016

$5.65

17

FUSE-ZCASE, 200A

4018415-200

Unavailable

18

FUSE-MCASE,50A

4018414-50

$11.54

19

FUSE-MCASE,SLOTTED,30A

4018414-30

$8.08

20

FUSE-PDM

4017598

$69.99

21

LABEL-PDM,RZR,G4

7191499

Unavailable

22

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.56

23

DIODE-6AMP

4011474

$44.51

24

GROMMET - 65 MM, BLK

5813954

$8.99

25

ANTENNA,GPS,EXT

4018662

$139.99

26

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$9.70

27

CLIP, EDGE, HARNESS

7081890

$10.32

28

CAP - VINYL, 125X375, BLACK

5438230

$5.65

29

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

30

HARNESS-JUMPER FRONT DRIVE

2416574

$59.99

31

BRKT-MOUNT,CONNECTOR,ECOAT

5270941-329

$36.41

32

SCR-HXFL-M10X1.5X25,DIN6921ZB

7519349

$5.56

33

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.35

34

WASHER-.270X.84X.075 BLK-M

7556386

$4.76

35

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.19

36

LED - PANEL MNT, 12V, BLUE

2413217

$52.60

37

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.76

38

CLIP - ROUTING, DIN BOX

7082020

$5.56

39

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22

40

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

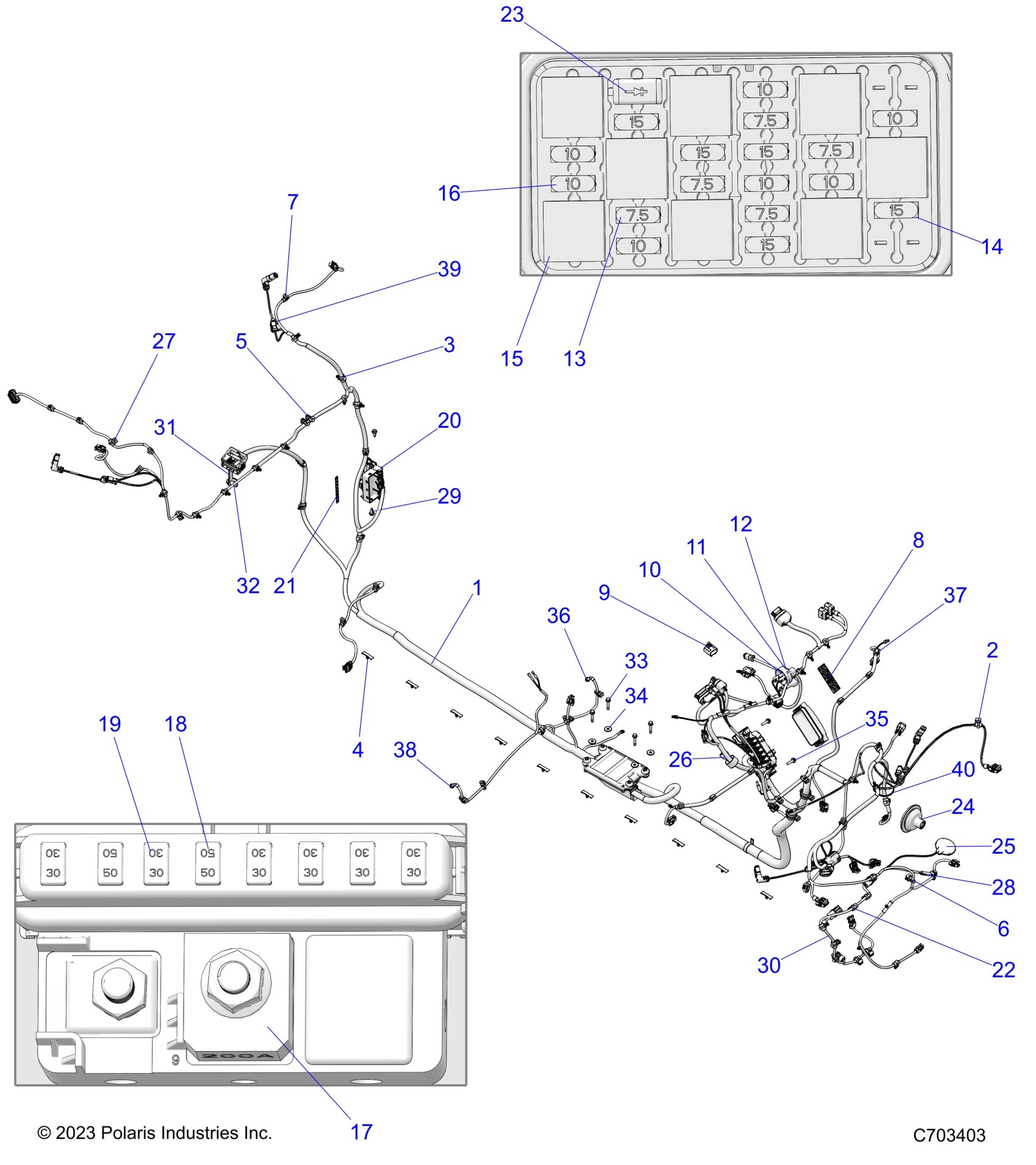

Polaris RZR PRO R 4 ULTIMATE (R02) - Z24RMD2KAH/AL/BH/BL ELECTRICAL, WIRE HARNESS, CHASSIS, PREMIUM - Z24RMD2KAH/AL/BH/BL (C703403) Diagram

HARNESS-CHASSIS,ULT,PROR,MP [INCL. 2-28,36-39]

STRAP-CABLE TIEW/EDGECLIP3-6MM

CLIP FIR-TREE,DIA6-33MM

CLIP-XMAS,6.35MM HOLE,TAPE-ON

CLIP-EDGE,1-3MM,6-45MM,SERT.

CLIP-EDGE,DIA5-50MM,OUT-SER

CLIP-EDGE,1-3MM THICKNESS

LABEL-FUSE BOX

COVER-DIAGNOSTIC,W/CLIP

RESISTOR-24.9KOHM

RESISTOR-4.75KOHM

RESISTOR-1.6KOHM

FUSE - 7.5, MINI BLADE (BROWN)

FUSE-15AMP,MINI BLADE

RELAY-SPST,12V,20A,EPXY,HFA

FUSE-IGNITION,10 AMP

FUSE-ZCASE, 200A

FUSE-MCASE,50A

FUSE-MCASE,SLOTTED,30A

FUSE-PDM

LABEL-PDM,RZR,G4

CLIP- EDGE, 1-3MM THICKNESS

DIODE-6AMP

GROMMET - 65 MM, BLK

ANTENNA,GPS,EXT

RESISTOR - EVAP PULLUP - 1 KOHM

CLIP, EDGE, HARNESS

CAP - VINYL, 125X375, BLACK

RIVET-TUFLOK,.315-.325X.787

HARNESS-JUMPER FRONT DRIVE

BRKT-MOUNT,CONNECTOR,ECOAT

SCR-HXFL-M10X1.5X25,DIN6921ZB

SCR-M6X1.0X35,HX/FL-Y/D

WASHER-.270X.84X.075 BLK-M

SCR-HXFL-M6X1.0X25 8.8 RIE

LED - PANEL MNT, 12V, BLUE

CLIP-EDGE, 1-3mm THICKNESS

CLIP - ROUTING, DIN BOX

CABLE-TIE,DIA2.5-34MM,FIR-TREE

CABLE-TIE,DIA12-50MM,WTHR-RES.
