- RZR PRO R 4 SPORT (R04) - Z23RMC2KAJ/BJ
SUSPENSION, REAR SHOCK INTERNAL - Z23RMC2KAJ/BJ (C0704860-2)

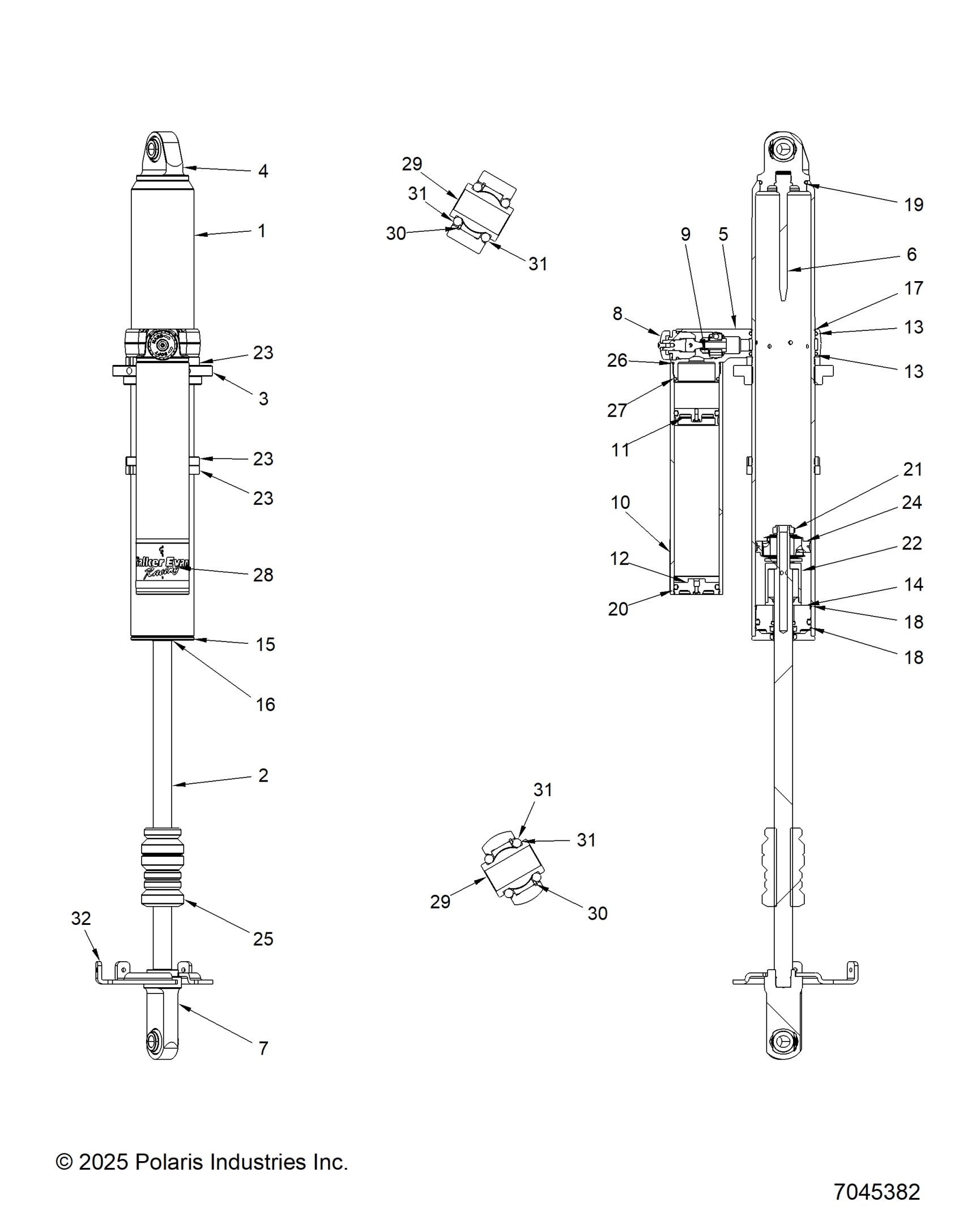

Polaris RZR PRO R 4 SPORT (R04) - Z23RMC2KAJ/BJ SUSPENSION, REAR SHOCK INTERNAL - Z23RMC2KAJ/BJ (C0704860-2) Diagram
#
Description
Price
-
SHOCK-REAR,G4 MP,LH
7045382
$1,465.79
-
SHOCK-REAR,G4 MP,RH
7045383
$1,465.79
1
SHOCK BODY, 3.0 CO,IMPACT EXTRUDED 21.554L
-------
Unavailable
2
SHAFT, NEEDLE, .875, .625 STEM, 21.865L
-------
Unavailable
3
SPRING NUT, 3.0, 3.75 ID SPRING
-------
Unavailable
4
3.0 BODY LOOP, 1.187 BORE, BRNG STEP
1800975
$179.99
5
BRIDGE, 3.0 FORGED
-------
Unavailable
6
NEEDLE-3/8,THREAD IN,NO SLOT
1801033
$143.99
7
SHAFT LOOP, 1.187 BORE,BEARING STEP,ORIENTATION
-------
Unavailable
8
ASM. SS RETENTION NUT (GOLD)
1800857
$111.99
9
VALVE, CHECK ASSEMBLY
1800848
$61.59
10
RES BODY, 2.5" X 11", WIRE RING
1800979
$231.99
12
2.5 END CAP WITH BUILT IN CHARGE PORT
1800960
$75.99
13
2-234 O-RING (VITON)
1800980
$23.99
13
2-234 O-RING (VITON)
1800980
$23.99
14
3.0 SEAL HEAD, 7/8 SHAFT, PRESS IN, WIRE RING
1800981
$117.03
15
3.0 WIPER CAP, PRESS IN, 7/8 SHAFT
1800983
$67.99
16
WIPER 2.5 SH 0.875 SHAFT
1800641
$31.99
17
RETAINING RING 3.0
1800984
$2.63
18
RETAINING RING 3.0
1800985
$3.51
18
RETAINING RING 3.0
1800985
$3.51
19
O-RING 2-226 (VITON)
1800988
$19.99
20
ID RETAINING RING, 2.5"
1800847
$23.99
21
NUT, FLEXLOC, THIN, 5/8-18
1800970
$43.99
22
CHECK VALVE, 2 PIECE,HI-FLOW .875 SHAFT X 2.005L, 2x .082 BLEED
-------
Unavailable
23
NUT-JAM,3.0",1830026
1800974
$143.99
23
NUT-JAM,3.0",1830026
1800974
$143.99
23
NUT-JAM,3.0",1830026
1800974
$143.99
24
PISTON ASM
-------
Unavailable
25
3.70L BUMP STOP LG
1800993
$35.99
26
O-RING 2-033
1800613
$10.39
27
O-RING 2-225
1800500
$1.99
28
DECAL-SHOCK,7045382
-------
Unavailable
29
WER-2000131
-------
Unavailable
29
WER-2000131
-------
Unavailable
30
SNAP RING, COM-10,INVERTED
-------
Unavailable
30
SNAP RING, COM-10,INVERTED
-------
Unavailable
31
O-RING 2-314
1800990
$3.51
31
O-RING 2-314
1800990
$3.51
31
O-RING 2-314
1800990
$3.51
31
O-RING 2-314
1800990
$3.51
32
RETAINER-SPRING,3.75",STAMPED
5270086
$43.99
