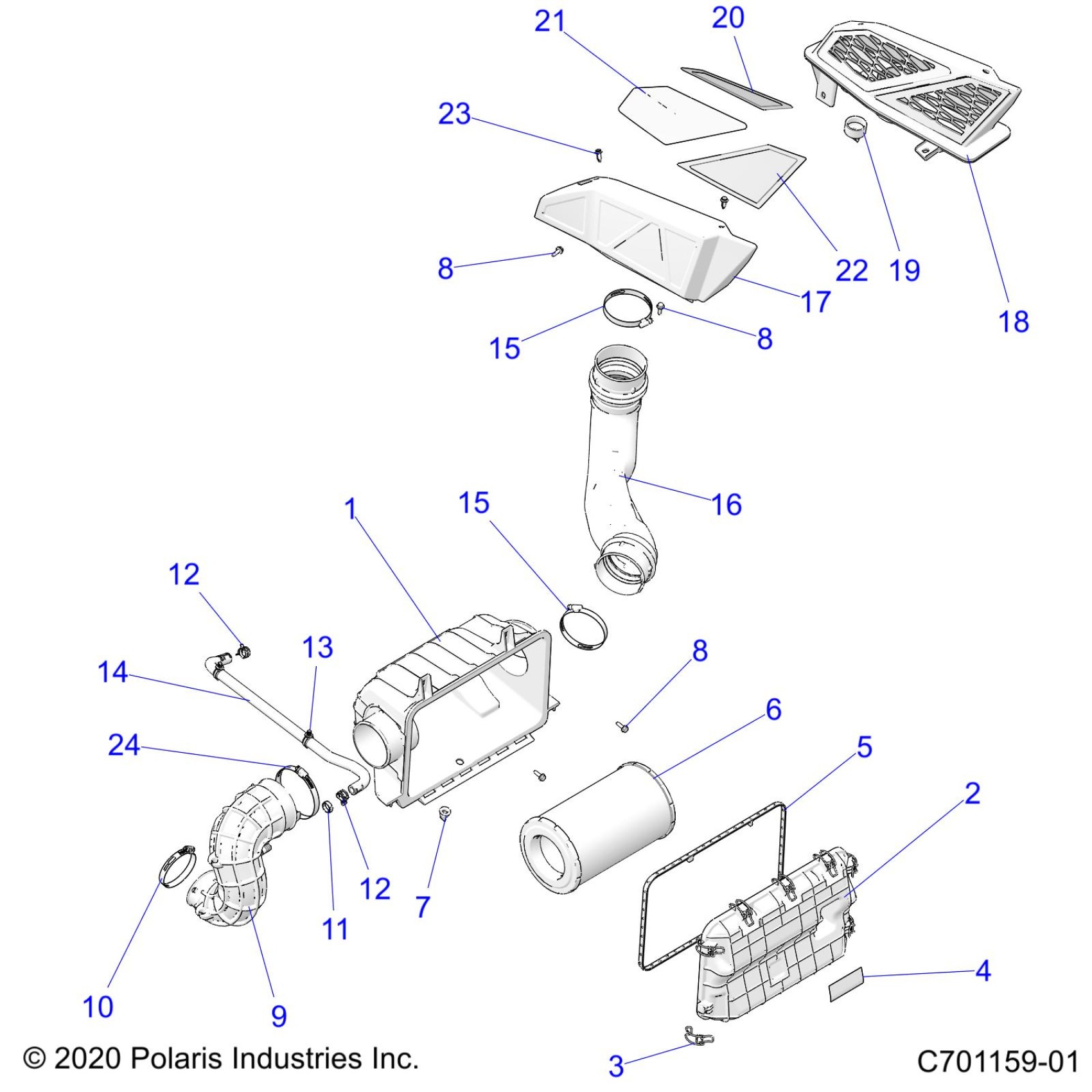

Polaris RZR PRO R 4 SPORT (R04) - Z23RMC2KAJ/BJ ENGINE, AIR INTAKE SYSTEM - Z23RMC2KAJ/BJ (C701159-01) Diagram

#

Description
Price

1

AIRBOX

5457730

$99.99

2

ASM-AIRBOX COVER,DECAL [INCL. 3-4]

1241302

$95.99

3

ASM-AIRBOX CLIP

7082596

Unavailable

4

DECAL-CAUT.AIR BOX

7189751

Unavailable

5

SEAL-AIRBOX

5814775

$15.99

6

FILTER-AIR

7082436

$35.99

7

PLUG-DRAIN

5414472

$5.59

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

ASM-INTAKE DUCT [INCL. 11]

1241392

$83.99

10

CLAMP-HOSE SLOTTED,75-90 DIA

7082314

$10.39

11

CLAMP-OETIKER,16700110-19.2

7082553

$5.59

12

CLAMP, HOSE SPRING, 20MM

7081719

$5.59

12

CLAMP, HOSE SPRING, 20MM

7081719

$5.59

13

HOSE-VENT,ENG

5416731

$51.99

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

15

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

15

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

16

ASM-DUCT,AIRBOX,IN

1241489

$207.99

17

DEFLECTOR-BEZEL,LH

5457037

$31.99

18

ASM-BEZEL,INTAKE,LH [INCL. 19-22]

2637955

$99.99

19

BOOT-PURGE VALVE,AIR BOX

5417149

$4.84

20

SCREEN-INTAKE,OUTER,LH

5456087

$23.99

21

SCREEN-INTAKE,INNER,REAR,LH

5456091

$43.99

22

SCREEN-INTAKE,INNER,FRONT,LH

5456089

$43.99

23

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

24

CLAMP-HOSE SLOTTED,100-110 DIA

7082560

$6.39
