Description

Price

1

ASM-GEARCASE,FRONT,ISOL,8K Incl All

1337229

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

3

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

3234634

$13.59

6

SCREW-SOCK,BUTTON HD,M5X.8X1

3239227

$11.43

7

SCREW, HEX FLANGE HEAD , M6 X 1 X 20

3239475

$10.39

8

SCREW, 6-LOBE BUTTON HD M10 X 1.5 X 13

3239568

$19.99

9

NUT, HEX PINION BEARING , M35 X 1.5-6H X 8.00

3239229

$26.39

10

WASHER, 8.15 X 12.00 X 1.00

3239567

$19.99

11

PIN, DOWEL, M4X8

3235715

$6.39

12

PIN, DOWEL , 10MM X 14MM

3239230

$23.99

13

PIN, DOWEL , .1562 X 1

3239325

$10.39

14

RING, RETAINING EXT CG-31SJ

3239569

$19.99

14

RING, RETAINING EXT CG-31SJ

3239569

$19.99

15

SHIM, 66.30 X 55.50

3239232

$255.19

16

BEARING, BALL , 6006 30 X 55 X 13

3239460

$15.99

17

BEARING, BALL (35X80X21)

3235099

$31.99

18

BEARING, BALL , 55 X 90 X 18

3239233

$51.99

18

BEARING, BALL , 55 X 90 X 18

3239233

$51.99

19

BEARING, NEEDLE .5625 X .750 X .500

3239570

$47.99

20

BEARING, PLAIN , 14 X 16 X 15

3239443

$19.99

20

BEARING, PLAIN , 14 X 16 X 15

3239443

$19.99

21

BEARING, PLAIN , 1.625 X 1.781 X .685

3239235

$43.99

21

BEARING, PLAIN , 1.625 X 1.781 X .685

3239235

$43.99

22

SPRING, COMPRESSION , 10.80 OD X 9.02 ID X 0.89 WIRE

3239461

$123.99

23

SPRING, TORSION , RETURN

3239411

$123.99

24

SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE

3239412

$11.99

24

SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE

3239412

$11.99

25

HOUSING, DISCONNECT MACH

3239571

$159.99

26

COVER, FRONT DIFF MACH

3239572

$251.99

27

CASE, FRONT MAIN MACH

3239573

$311.99

28

CARRIER, DIFFERENTIAL MACH

3239574

$135.99

29

FORK, DISCONNECT SHIFT

3239575

$51.99

30

PINION, 10T BEVEL

3239438

$63.99

31

GEAR, OUTPUT , 14T MACH

3239243

$115.99

32

GEAR, OUTPUT , 14T MACH

3239244

$115.99

33

PINION, 10T SPIRAL BEVEL

3239576

$115.99

34

GEAR, RING 41T

3239577

$279.99

35

TUBE, VENT , 1/4" HOSE

3239296

$27.99

36

DOG, ENGAGEMENT

3239248

$79.99

37

PIN, DIFFERENTIAL

3239249

$51.99

38

COLLAR, SHIFT 25T

3239464

$95.99

39

SHAFT, DISCONNECT 25T

3239465

$87.99

40

COUPLER, PIN

3239489

$87.99

41

CUP

3239415

$43.99

42

PIN, DIFFERENTIAL

3239442

$43.99

43

RAIL, SHIFT SHAFT

3239580

$31.99

44

NUT, LOCK M85 X 2.0 LH

3239578

$43.99

45

SUBASSEMBLY, DIFFERENTIAL 4.10 RATIO, 4 SPIDER

3239581

$747.99

46

WASHER, THRUST , 14.25 X 43.25 X 0.38

3239253

$11.43

47

WASHER, THRUST , 42.10 X 56.25 X 0.38

3239254

$23.99

47

WASHER, THRUST , 42.10 X 56.25 X 0.38

3239254

$23.99

48

CONTROL ARM, SHIFT , FRONT DIFF

3239417

$59.99

49

STRAP, SHIFT FORK

3239582

$23.99

50

MOUNT, ISOLATOR

5418248

$39.99

50

MOUNT, ISOLATOR

5418248

$39.99

51

SOLENOID

3235478

$275.99

51

SOLENOID

3235478

$275.99

52

O-RING, 2-154

3239583

$27.99

53

SEAL, TRIPLE LIP , 1.181 X 2.047 X 0.394

3239468

$31.99

54

SEAL, OIL, 37 X 48 X 6 TG

3239328

$31.99

54

SEAL, OIL, 37 X 48 X 6 TG

3239328

$31.99

55

O-RING, 2-168

3239584

$39.99

56

PLUG, M18 X 1.5

3234755

$27.99

56

PLUG, M18 X 1.5

3234755

$27.99

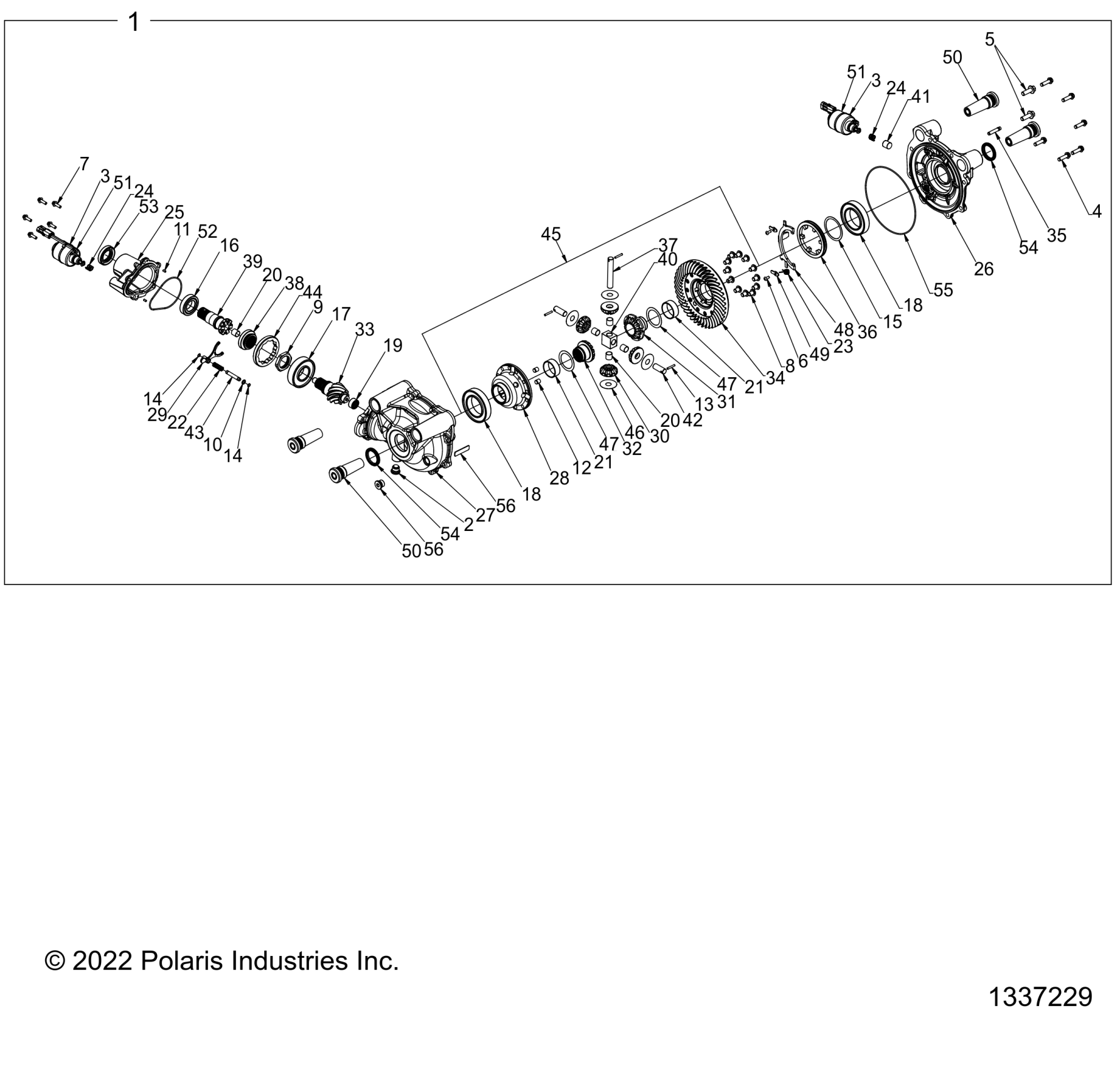

Polaris RZR PRO R 4 SPORT (R04) - Z23RMC2KAJ/BJ DRIVE TRAIN, GEARCASE, FRONT, INTERNALS - Z23RMC2KAJ/BJ (1337229) Diagram

ASM-GEARCASE,FRONT,ISOL,8K Incl All

PLUG, M18 X 1.5 MAGNETIC

CABLE-TIE,10-102MM,WEATH.-RES.

CABLE-TIE,10-102MM,WEATH.-RES.

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

SCREW-SOCK,BUTTON HD,M5X.8X1

SCREW, HEX FLANGE HEAD , M6 X 1 X 20

SCREW, 6-LOBE BUTTON HD M10 X 1.5 X 13

NUT, HEX PINION BEARING , M35 X 1.5-6H X 8.00

WASHER, 8.15 X 12.00 X 1.00

PIN, DOWEL, M4X8

PIN, DOWEL , 10MM X 14MM

PIN, DOWEL , .1562 X 1

RING, RETAINING EXT CG-31SJ

RING, RETAINING EXT CG-31SJ

SHIM, 66.30 X 55.50

BEARING, BALL , 6006 30 X 55 X 13

BEARING, BALL (35X80X21)

BEARING, BALL , 55 X 90 X 18

BEARING, BALL , 55 X 90 X 18

BEARING, NEEDLE .5625 X .750 X .500

BEARING, PLAIN , 14 X 16 X 15

BEARING, PLAIN , 14 X 16 X 15

BEARING, PLAIN , 1.625 X 1.781 X .685

BEARING, PLAIN , 1.625 X 1.781 X .685

SPRING, COMPRESSION , 10.80 OD X 9.02 ID X 0.89 WIRE

SPRING, TORSION , RETURN

SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE

SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE

HOUSING, DISCONNECT MACH

COVER, FRONT DIFF MACH

CASE, FRONT MAIN MACH

CARRIER, DIFFERENTIAL MACH

FORK, DISCONNECT SHIFT

PINION, 10T BEVEL

GEAR, OUTPUT , 14T MACH

GEAR, OUTPUT , 14T MACH

PINION, 10T SPIRAL BEVEL

GEAR, RING 41T

TUBE, VENT , 1/4" HOSE

DOG, ENGAGEMENT

PIN, DIFFERENTIAL

COLLAR, SHIFT 25T

SHAFT, DISCONNECT 25T

COUPLER, PIN

CUP

PIN, DIFFERENTIAL

RAIL, SHIFT SHAFT

NUT, LOCK M85 X 2.0 LH

SUBASSEMBLY, DIFFERENTIAL 4.10 RATIO, 4 SPIDER

WASHER, THRUST , 14.25 X 43.25 X 0.38

WASHER, THRUST , 42.10 X 56.25 X 0.38

WASHER, THRUST , 42.10 X 56.25 X 0.38

CONTROL ARM, SHIFT , FRONT DIFF

STRAP, SHIFT FORK

MOUNT, ISOLATOR

MOUNT, ISOLATOR

SOLENOID

SOLENOID

O-RING, 2-154

SEAL, TRIPLE LIP , 1.181 X 2.047 X 0.394

SEAL, OIL, 37 X 48 X 6 TG

SEAL, OIL, 37 X 48 X 6 TG

O-RING, 2-168

PLUG, M18 X 1.5

PLUG, M18 X 1.5
