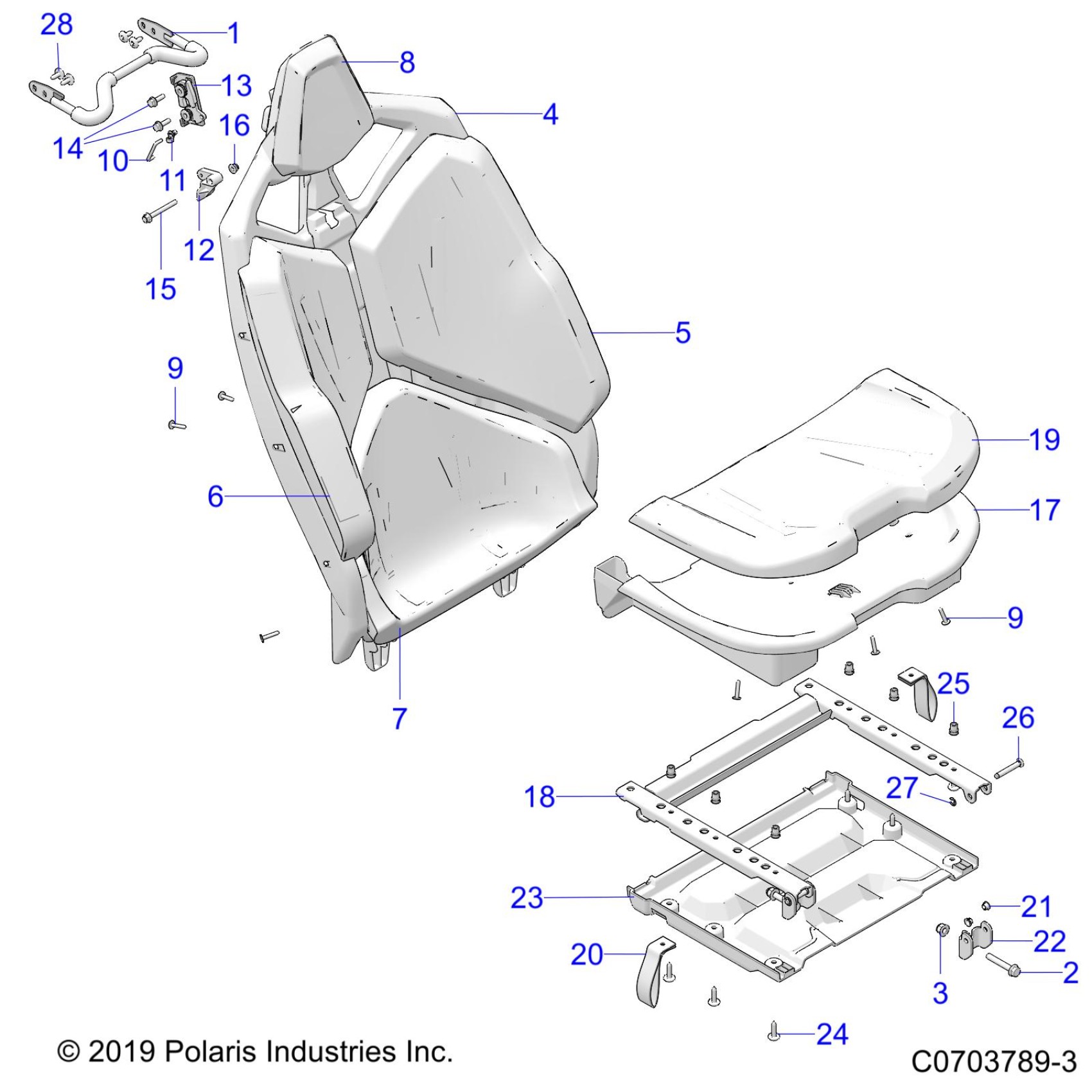

Polaris RZR PRO R 4 SPORT (R04) - Z23RMC2KAJ/BJ BODY, SEAT ASM.,REAR - Z23RMC2KAJ/BJ (C0703789-3) Diagram

#

Description
Price

1

ASM-REAR SEAT STRIKER

2638068

$60.70

2

SCR-M8X1.25X50 HX/FL-Y

7517793

$5.56

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

4

ASM-SEAT,BACK,A.GRAY/IRED,BLK [INCL. 4-7,9]

2692071

$549.99

5

ASM-BOLSTER,LH,A.GRAY/IRED,BLK

2692063

$72.84

6

ASM-BOLSTER,RH,A.GRAY/IRED,BLK

2692064

$72.84

7

ASM-LOW BACK,A.GRAY,BLK ST

2692074

$111.33

8

ASM-HEADREST,BLK

2691819

$67.76

9

RVT-3/16(.187-.375)AL-AL/BULBX

7621479

Unavailable

9

RVT-3/16(.187-.375)AL-AL/BULBX

7621479

Unavailable

10

ROD-REAR SEAT,LATCH

5341855

$8.08

11

CLIP-DOOR LATCH

5454637

$4.99

12

HANDLE-LATCH,REAR SEAT,BLK

5456202-070

$7.99

13

ASM-LATCH,RTRY,2 STAGE,LH

7082459

$52.60

14

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.97

15

SCR-HXFL-M6X1.0X55 8.8 ZOD

7519171

$5.56

16

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

17

ASM-SEAT BASE,FLIP,A.GRAY/RD,B [INCL. 9,17-27]

2638549

$334.03

17

ASM-SEAT,BOTTOM,A.GRAY/IRED,B [INCL. 9,19]

2692072

$229.99

18

WELD-SEAT FRAME,REAR,FLIP,BLK

1024845-458

$87.13

19

ASM-BOTTOM,A.GRAY/IRED,BLK S

2692073

$109.99

20

STRAP-SEAT

2689264

$7.27

21

BUSHING-DOOR PIVOT

5266311

$3.17

22

BRKT-SEAT FRAME,HINGE,REAR

5267628

$10.51

23

PANEL-UNDERSEAT,REAR,FLIP

5456052

$44.51

24

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

25

NUT-RIVNUT,M6X1.00

7547789

$3.17

26

PIN-DOOR HINGE

7662356

$5.69

27

E-CLIP,M6, DIN 6799

7710466

$3.17

28

SCR-M6X1X16 TR/TX-M

7518936

$3.97
