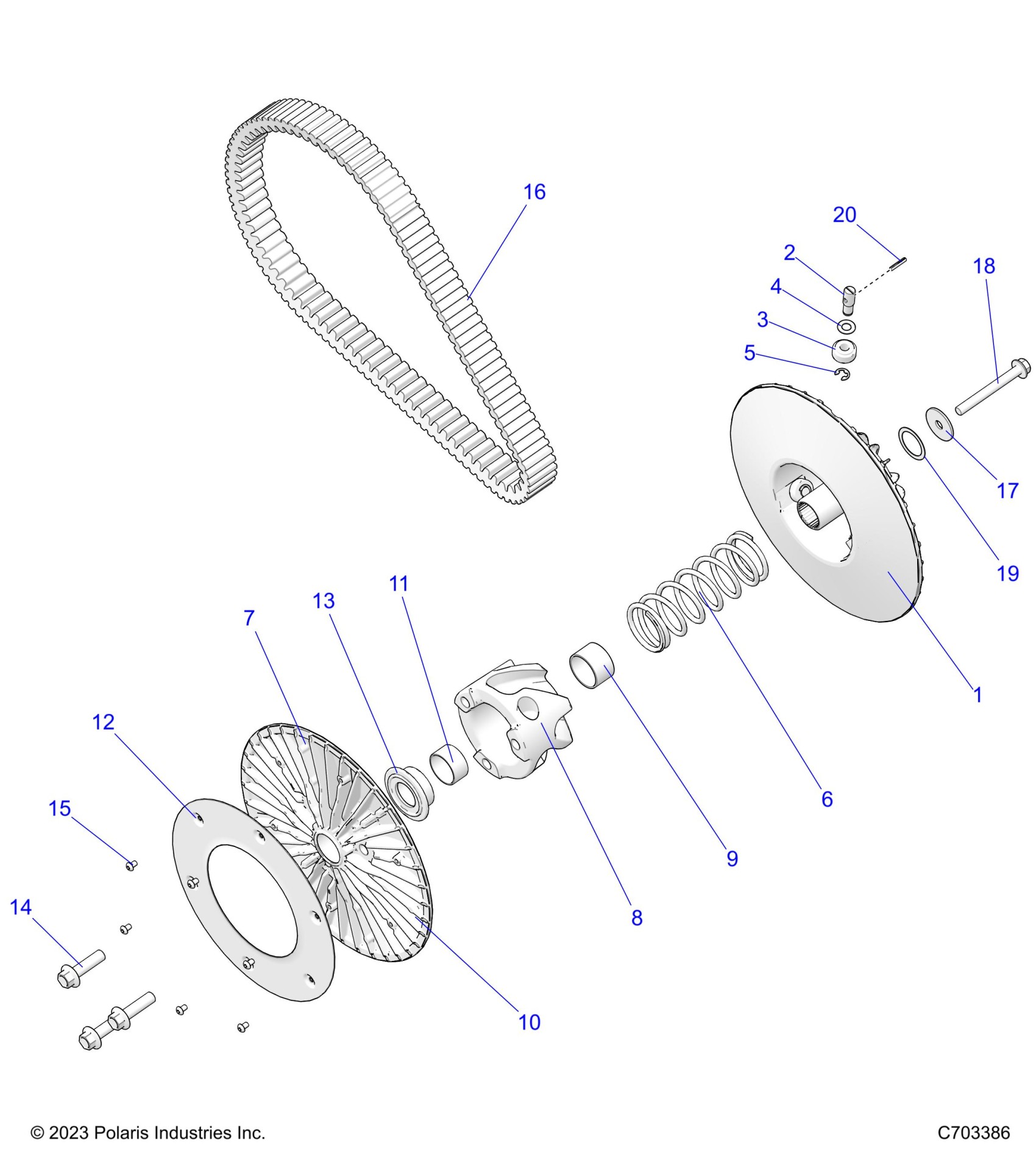

Polaris RZR PRO R 4 PREMIUM (R01) - Z24RMC2KAH/BH DRIVE TRAIN, SECONDARY CLUTCH/BELT - Z24RMC2KAH/BH (C703386) Diagram

ASM-STATIONARY SHEAVE,DRVN G4 [INLC. 2-5]

1323568

$247.99

PIN-DRIVEN,ROLLER,12MM

5142341

$7.99

ROLLER-10X25.4X12,PA14203

5455322

$35.99

WASHER-0.75X.400X.03,FL-Y

7556580

$1.49

E-CLIP, M8

7710733

$3.19

SPRING-DRIVEN,180-240

7045119

$83.99

ASM-MOVABLE SHEAVE,DRIVEN,G4 [INCL. 6, 8-15 ]

1323570

$315.99

ASM-HELIX,MACH,G4 [INCL. 9]

1327172

$183.99

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

ASM-MOVEABLE SHEAVE,G4 [INCL. 11]

1323600

$155.99

BEARING-DU,35X20

3514903

$31.99

PLATE-WINDAGE,DRIVEN,MOVABLE

5266654

$27.99

CUP-DRIVEN SPRING,G4

5634553

$7.99

SCR-M12X1.75X45MM,HXHDFLG

7519768

$7.19

SCR-TXBH-M5X0.8X8 SPC TRILOBE

7521023

$3.19

BELT-DRIVE,12.0,CD

3211226

$159.99

WSHR-FLAT 10.5X40X2.5,HARD,P&O

7557231

$3.99

SCR-HXFL-M10X1.5X90 10.9 ZOD

7519790

$2.63

SHIM-RING,30.5X40.0X0.5,P&O

7557161

Unavailable

SPRING-PIN-4X22,JIS B 2808

7662377

$2.39
