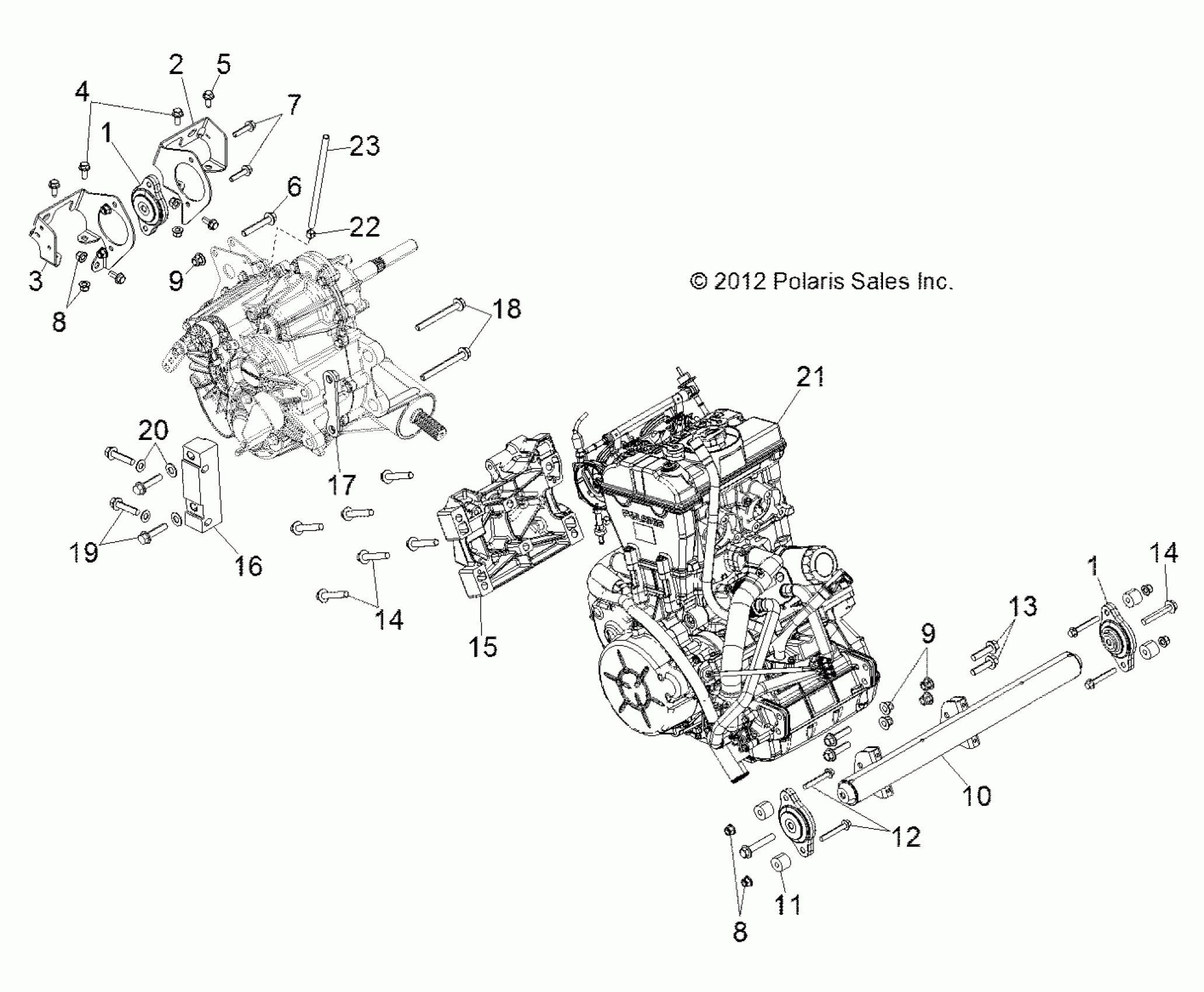

Polaris RZR 900 - Z14JT87AD/9EAO/9EAOL/9EAL ENGINE, TRANSMISSION MOUNTING - Z14JT87AD/9EAO/9EAOL/9EAL (49RGRENGINEMTG13RZRXP4) Diagram

#

Description
Price

1

MOUNT, ISOLATOR

1332924

$114.99

1

MOUNT, ISOLATOR

1332924

$114.99

2

BRACKET, TRANS SUPPORT, REAR, LH, BLACK

5254350-458

$60.70

3

BRACKET, TRANS SUPPORT, REAR, RH, BLACK

5254351-458

$60.70

4

BOLT

7518702

$3.97

5

BOLT

7518555

$2.38

6

BOLT

7518563

$3.17

7

SCREW

7519052

$1.59

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

TUBE, MOUNT, ENGINE, BLACK

1017742-329

$184.99

11

SPACER, TUBE

5336305

$16.44

12

SCREW

7517281

$8.99

13

SCREW

7519332

$5.56

14

BOLT

7518826

$4.76

14

BOLT

7518826

$4.76

15

BRKT-TRANSJOINT,MACH

5137795

$174.27

16

BRACKET, TRANSMISSION, MAG

5138469

$105.22

17

NUT, PLATE

5257086

$26.17

18

SCREW

7519043

$9.52

19

SCREW

7519286

$7.14

20

WASHER

7556153

$1.98

21

KIT, LONG BLOCK

2204940

$7,179.99

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

23

Line, Fuel

8450003-1525

Unavailable
