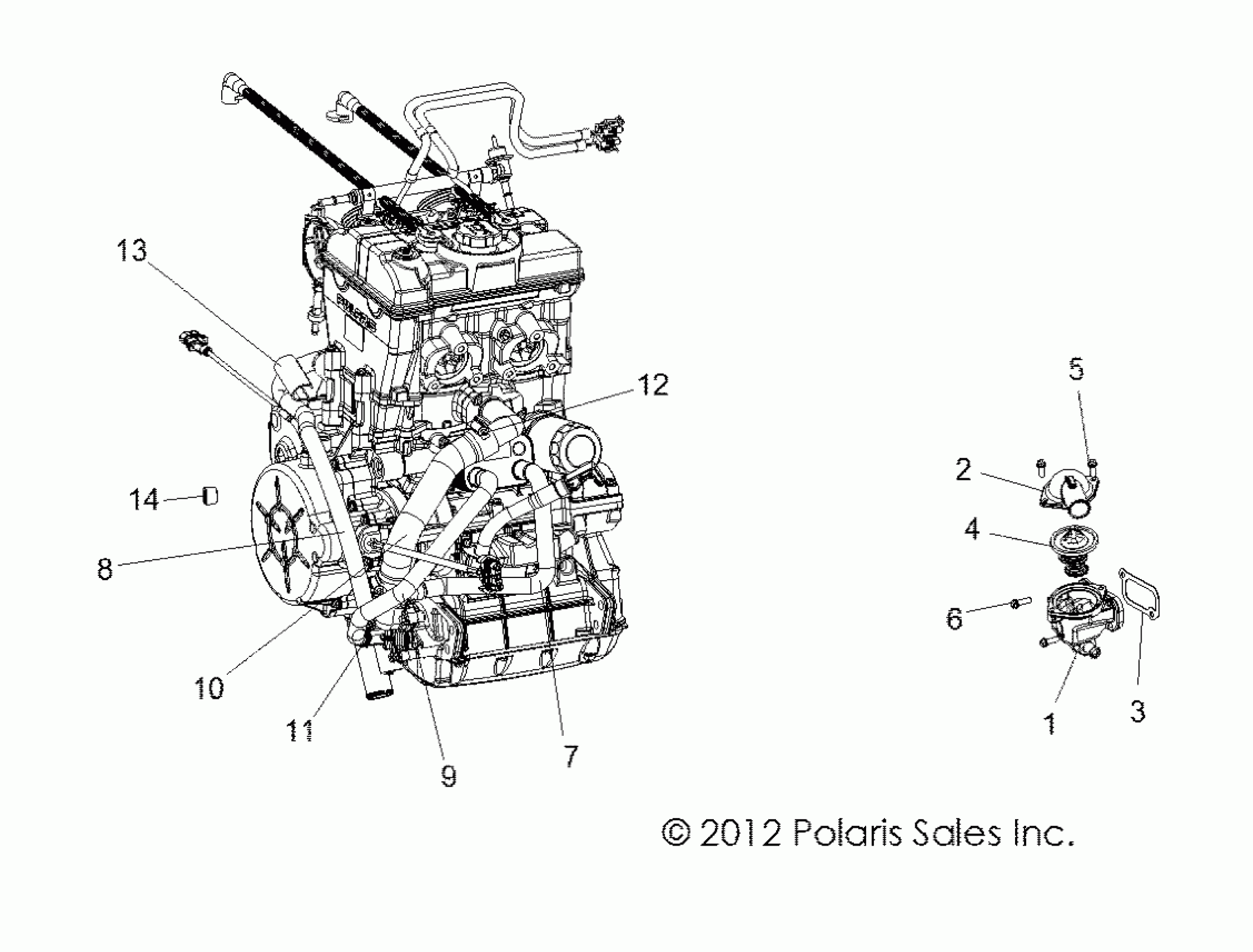

Polaris RZR 900 - Z14JT87AD/9EAO/9EAOL/9EAL ENGINE, COOLING, THERMOSTAT and BYPASS - Z14JT87AD/9EAO/9EAOL/9EAL (49RGRTHERMO13RZRXP4I) Diagram

#

Description
Price

1

HOUSING, THERMOSTAT

3022363

$55.99

2

COVER, THERMOSTAT

5632421

$35.99

3

GASKET, WATER INLET COVER

5813521

$6.39

4

THERMOSTAT

7052526

$75.99

5

SCREW

7518548

$1.59

6

SCREW

7518576

$3.19

7

HOSE, OIL COOLER INLET

5414475

$27.99

8

HOSE, BYPASS LINE

5414283

$39.99

9

HOSE, OIL COOLER OUTLET

5414282

$27.99

10

HOSE, WATER PUMP OUT

5414143

$83.99

11

CLAMP, HOSE, SPRING

7081026

$7.99

12

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

13

BRACKET, BYPASS HOSE

5255514

$31.99

14

PLUG

7051520

$8.79
